Heated Window: Notes

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

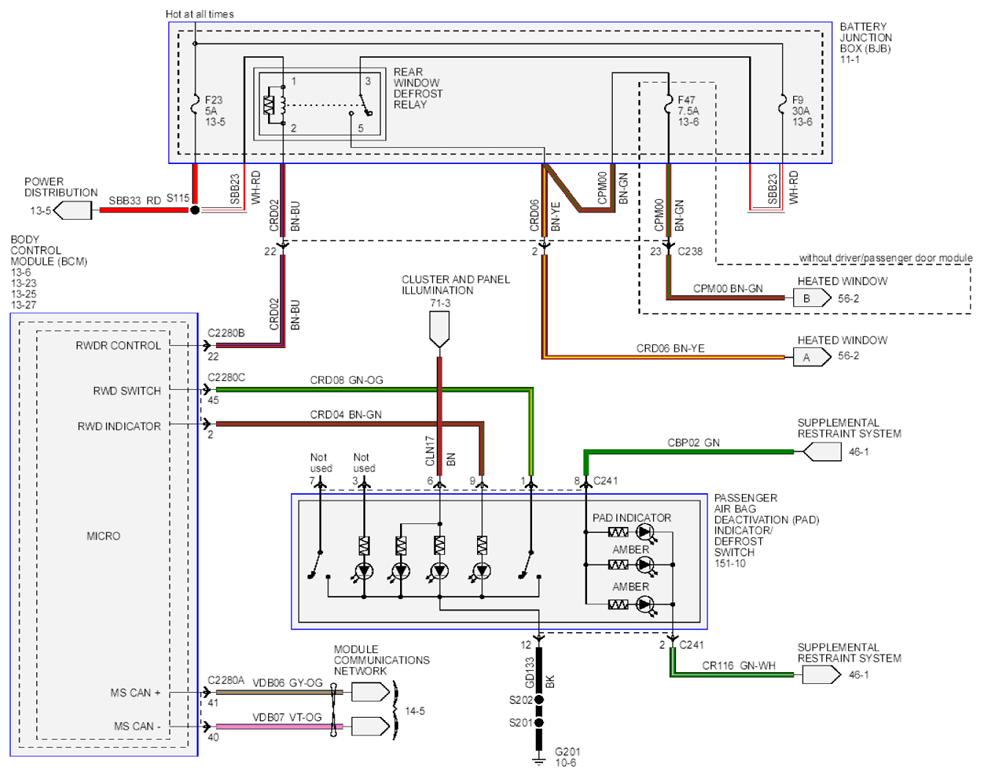

Fig 1: Heated Window Circuit Diagram (1 Of 2)
G07918772Courtesy of FORD MOTOR CO.

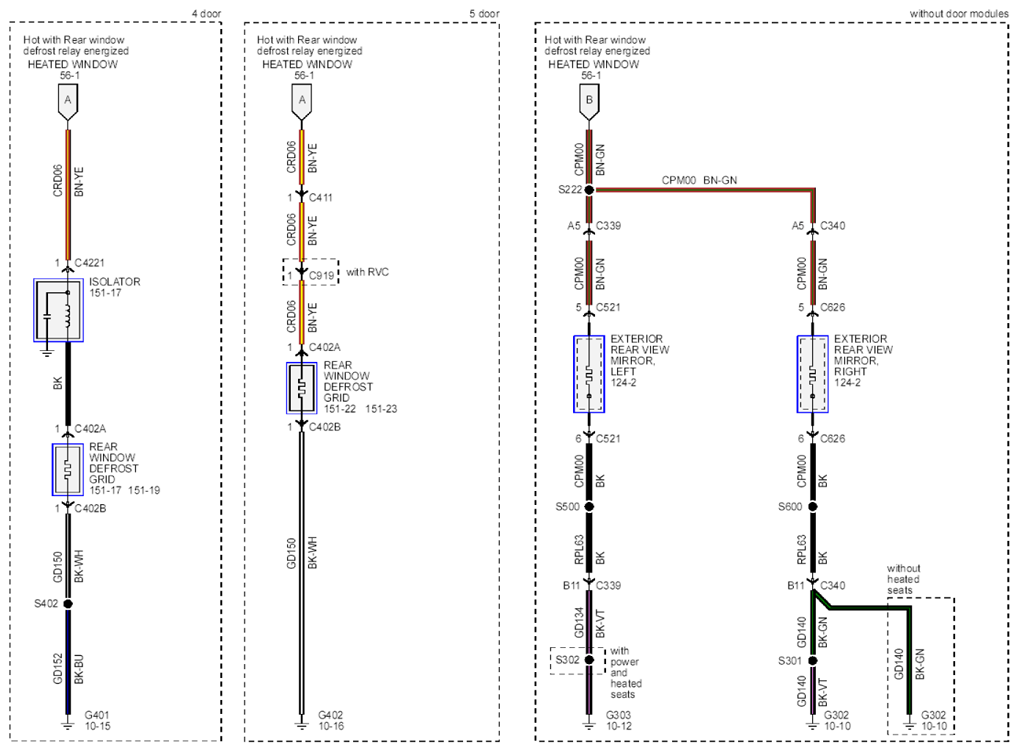

Fig 2: Heated Window Circuit Diagram (2 Of 2)
G07918773Courtesy of FORD MOTOR CO.
