Fog Lamps

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

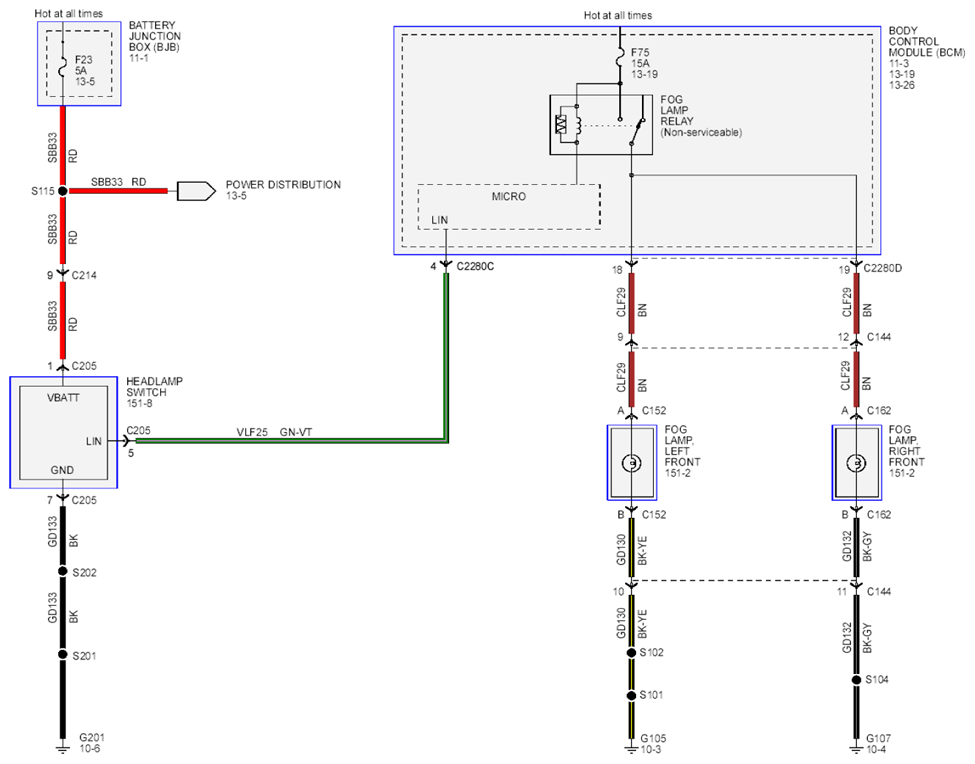

Fig 1: Fog Lamps Circuit Diagram
G07918791Courtesy of FORD MOTOR CO.
