Section 12 (OEM Wiring Diagrams)
>>
Cruise Control
Cruise Control
WARNING:
This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

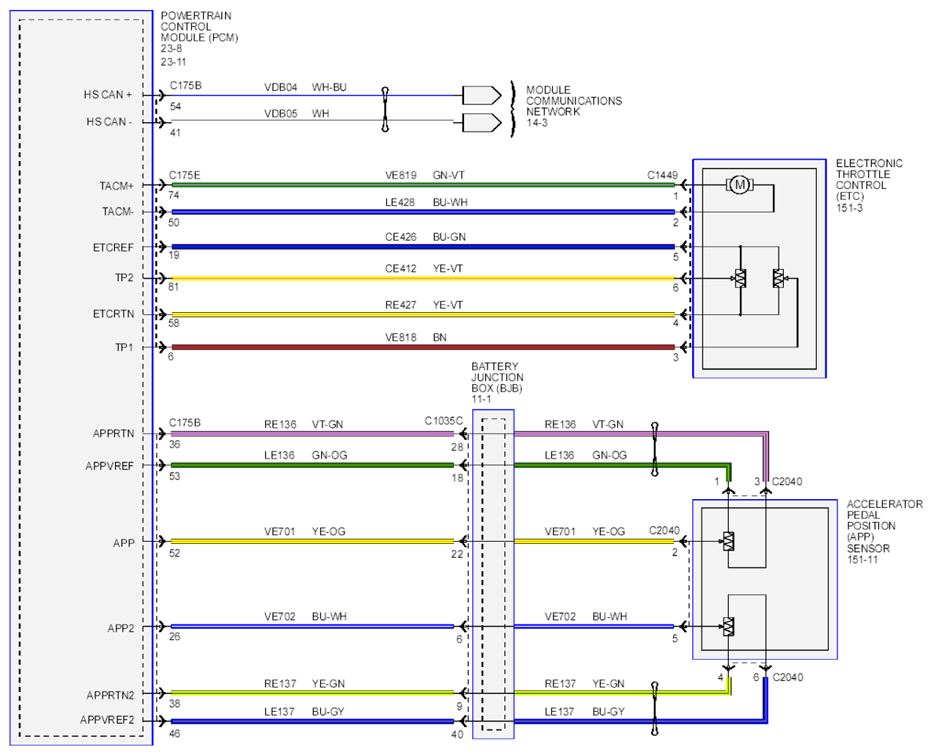

Fig 1: Cruise Control Circuit Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

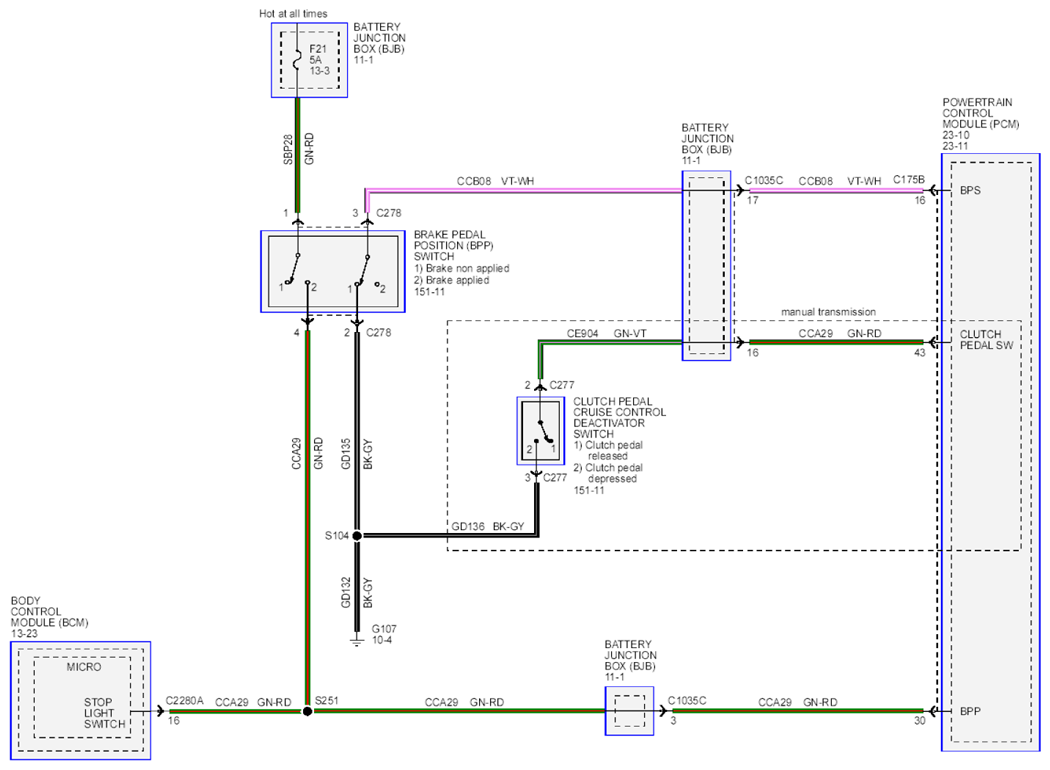

Fig 2: Cruise Control Circuit Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

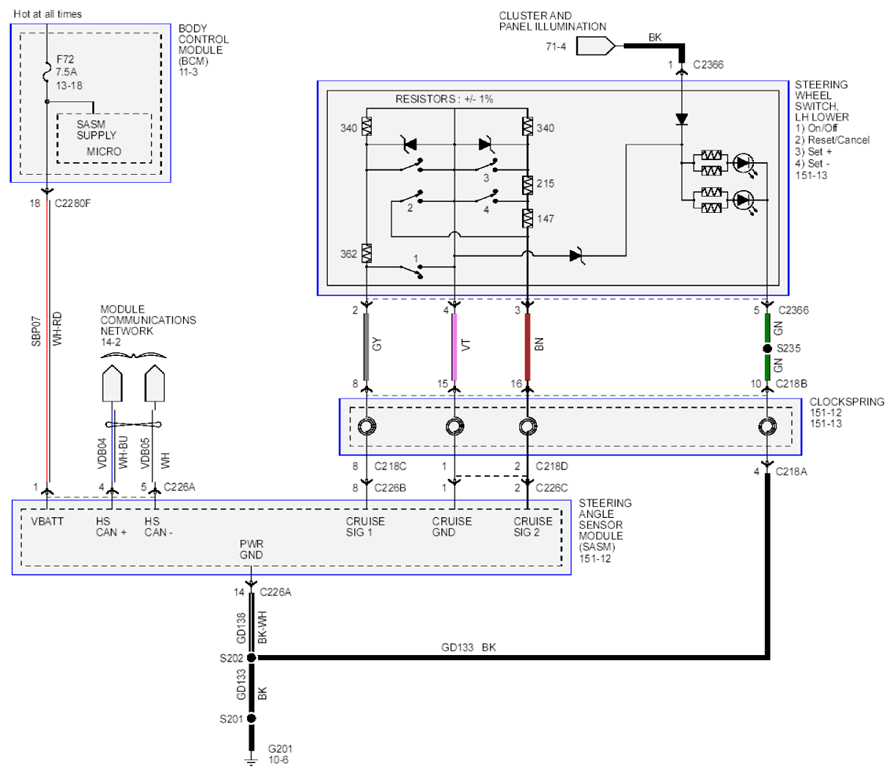

Fig 3: Cruise Control Circuit Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
