Cluster and Panel Illumination

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

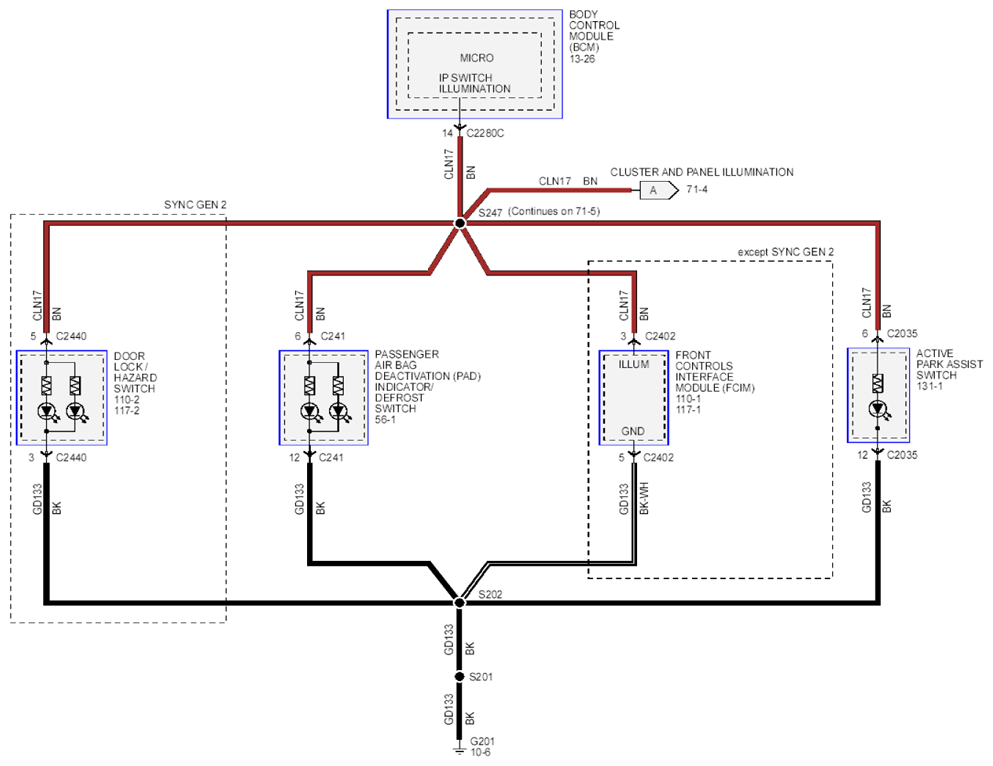

Fig 1: Cluster And Panel Illumination Circuit Diagram (1 Of 5)

Courtesy of FORD MOTOR CO.

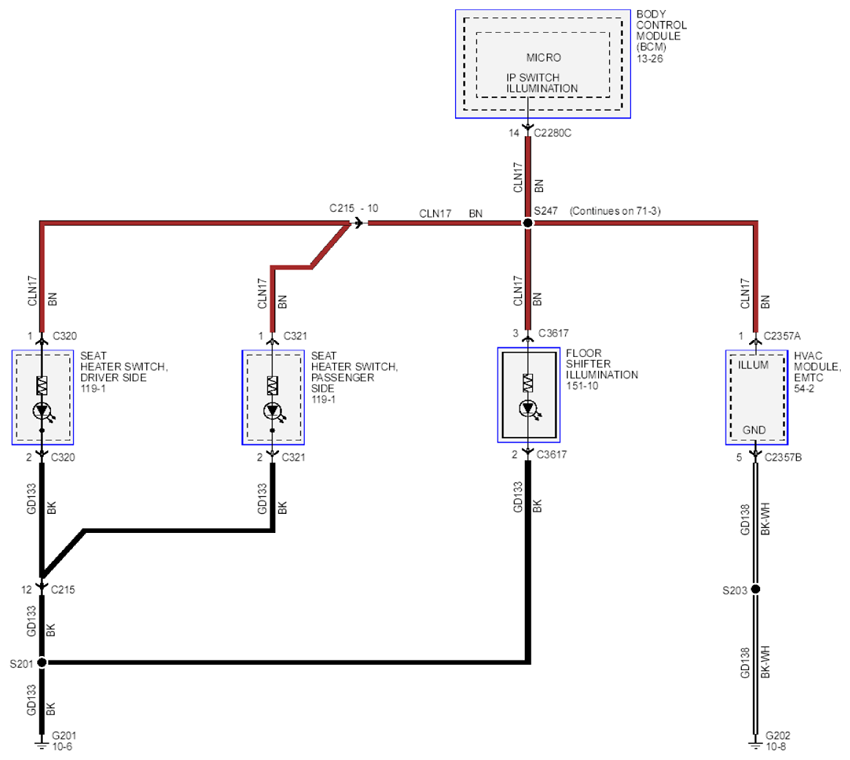

Fig 2: Cluster And Panel Illumination Circuit Diagram (2 Of 5)

Courtesy of FORD MOTOR CO.

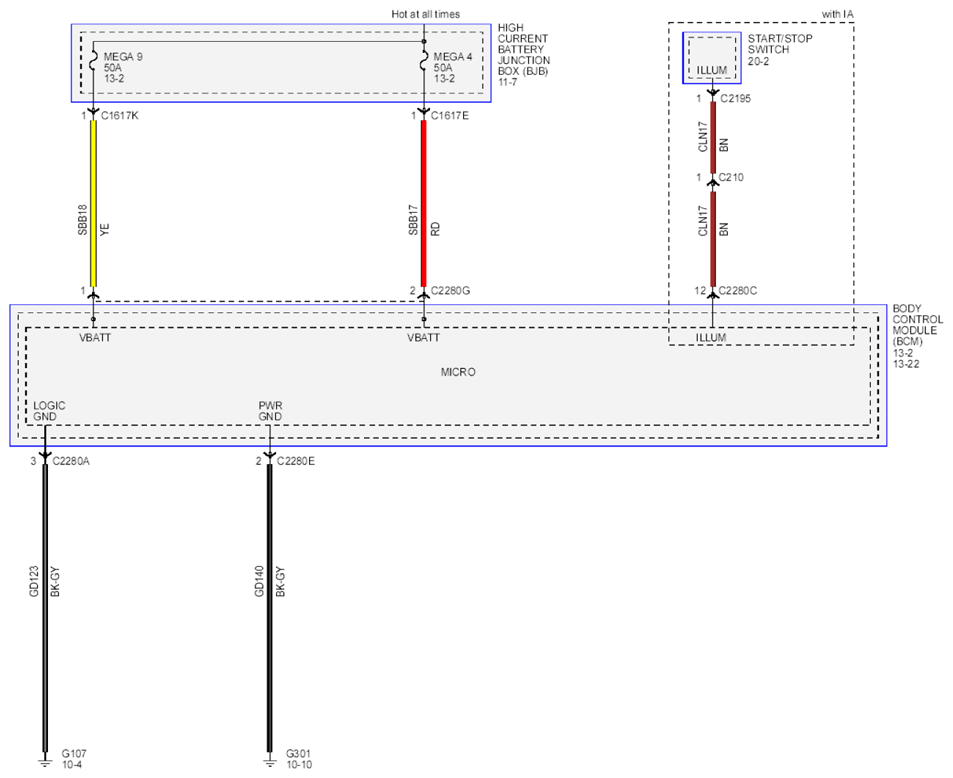

Fig 3: Cluster And Panel Illumination Circuit Diagram (3 Of 5)

Courtesy of FORD MOTOR CO.

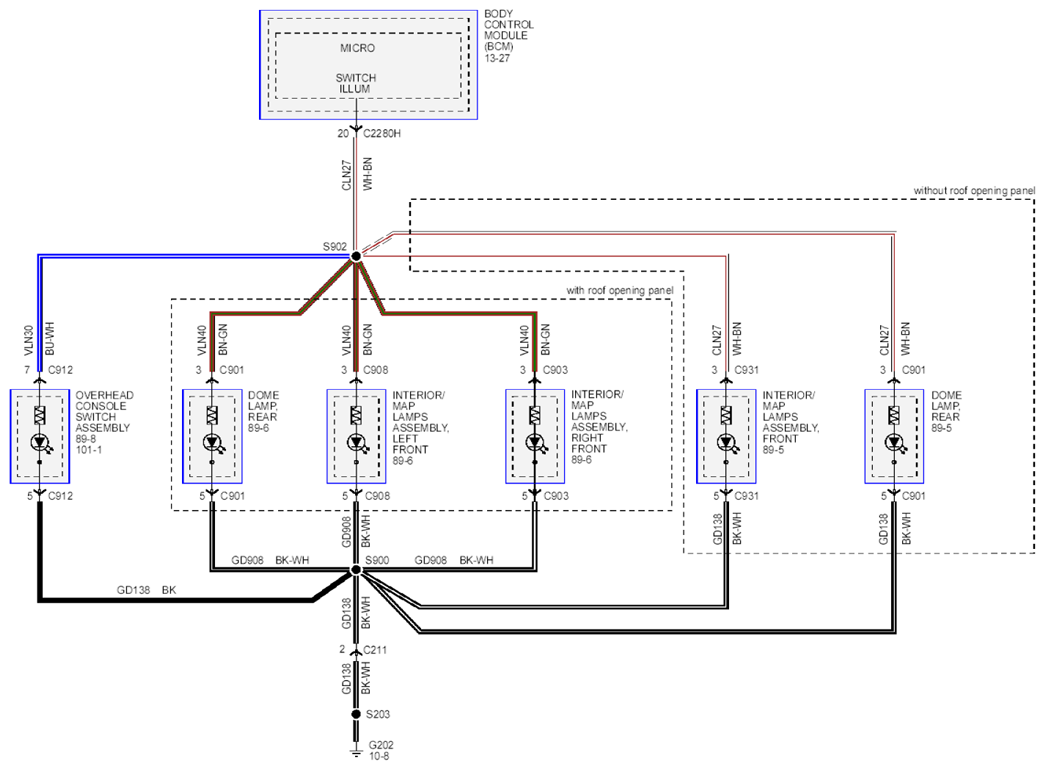

Fig 4: Cluster And Panel Illumination Circuit Diagram (4 Of 5)

Courtesy of FORD MOTOR CO.

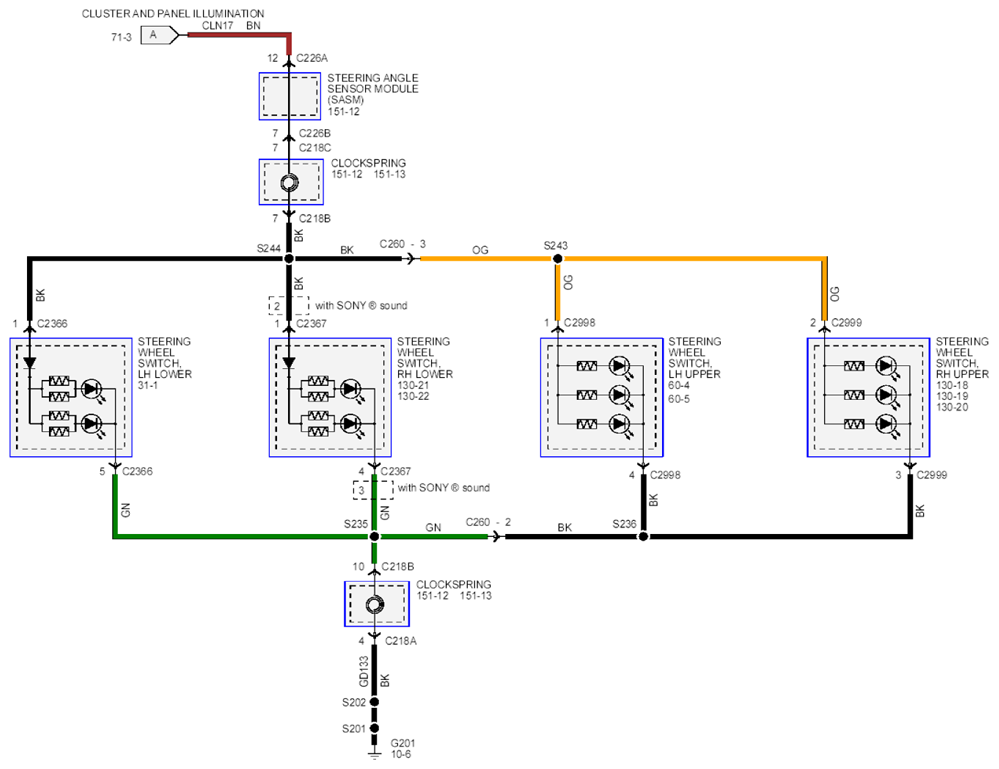

Fig 5: Cluster And Panel Illumination Circuit Diagram (5 Of 5)

Courtesy of FORD MOTOR CO.
