Section 12 (OEM Wiring Diagrams)
>>
Charging System
Charging System
WARNING:
This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

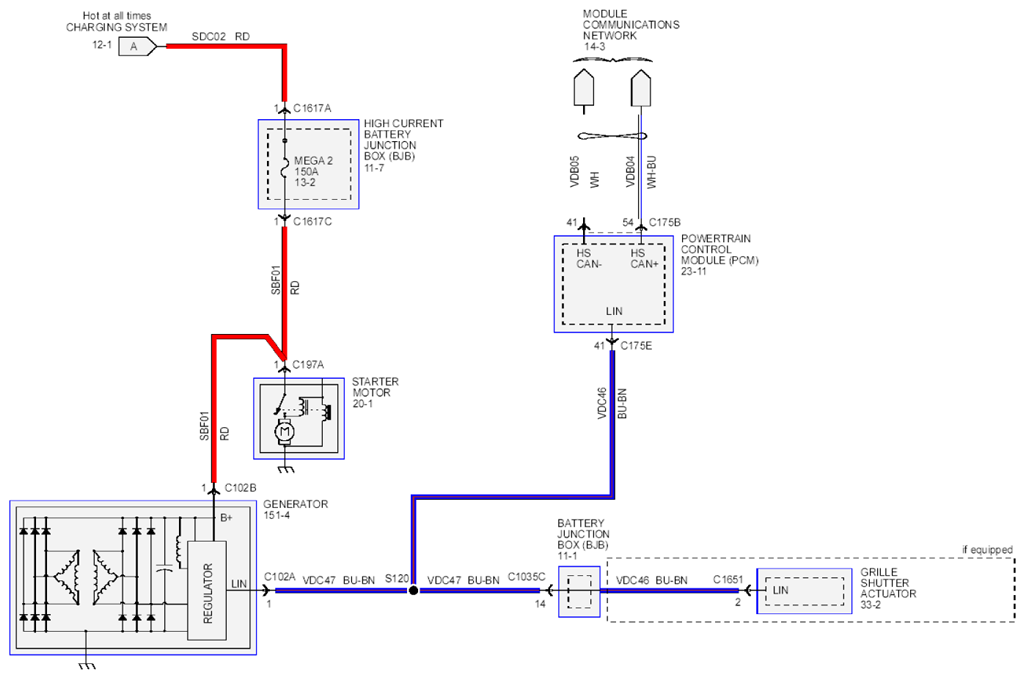

Fig 1: Charging System Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

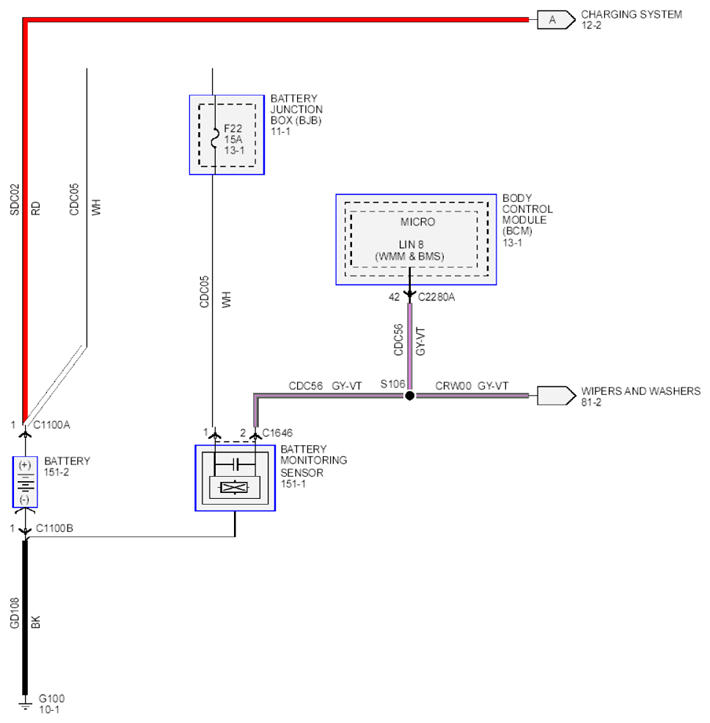

Fig 2: Charging System Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
