Automatic Climate Control System

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

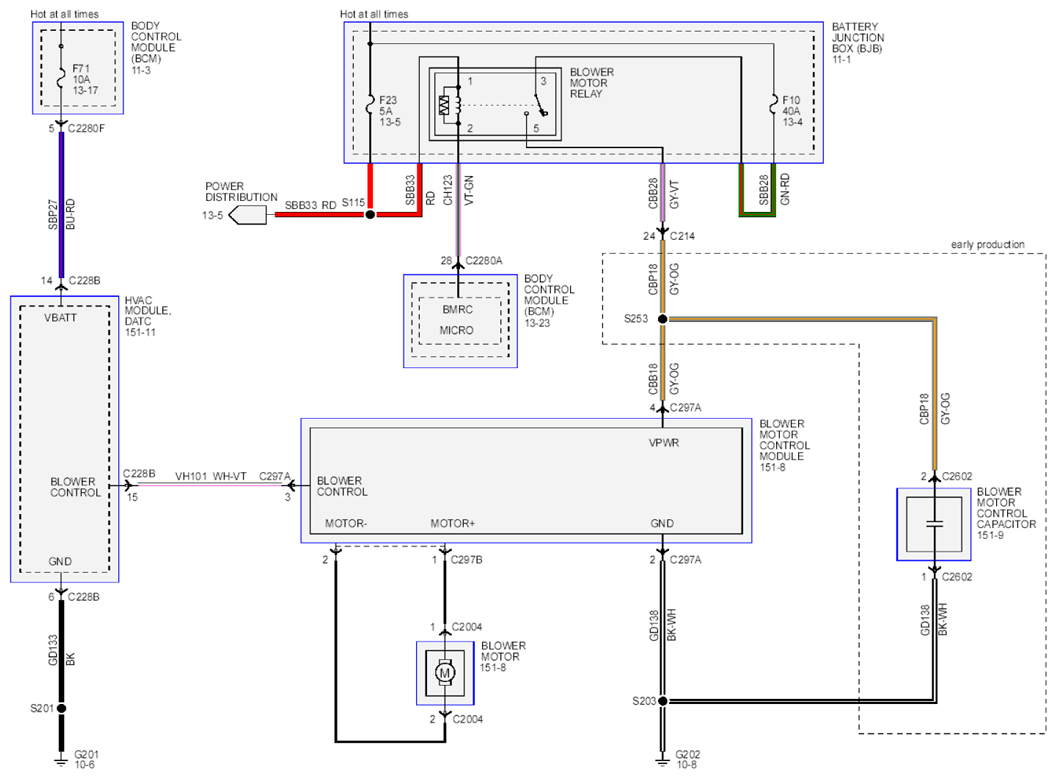

Fig 1: Automatic Climate Control System Circuit Diagram (1 Of 7)

Courtesy of FORD MOTOR CO.

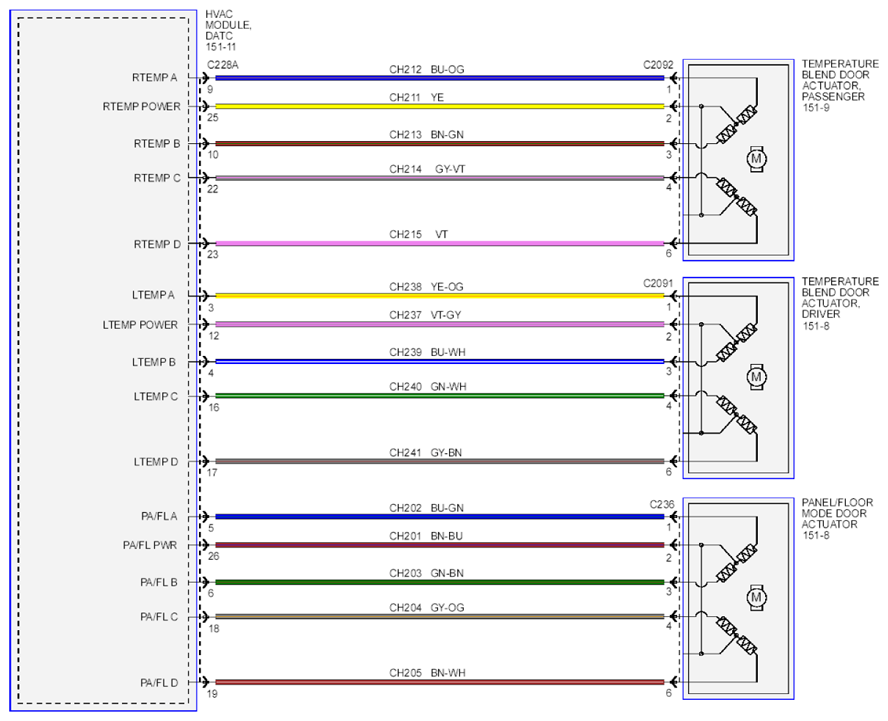

Fig 2: Automatic Climate Control System Circuit Diagram (2 Of 7)

Courtesy of FORD MOTOR CO.

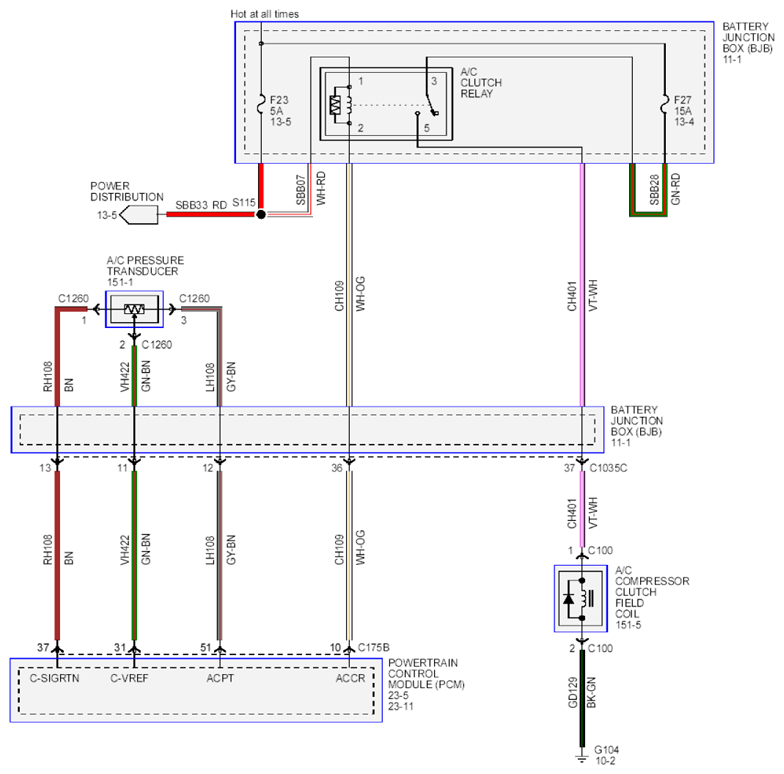

Fig 3: Automatic Climate Control System Circuit Diagram (3 Of 7)

Courtesy of FORD MOTOR CO.

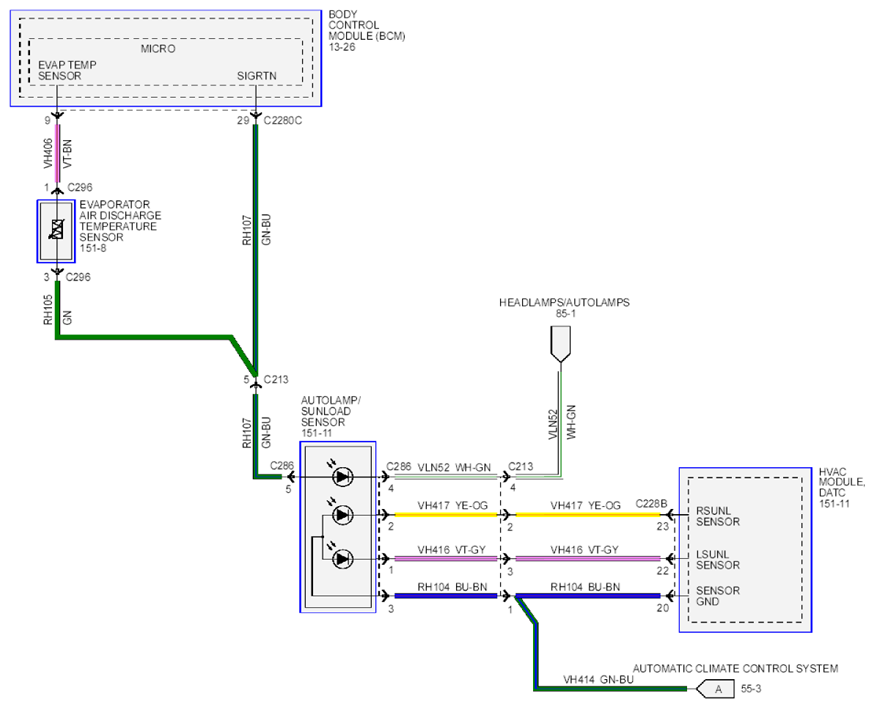

Fig 4: Automatic Climate Control System Circuit Diagram (4 Of 7)

Courtesy of FORD MOTOR CO.

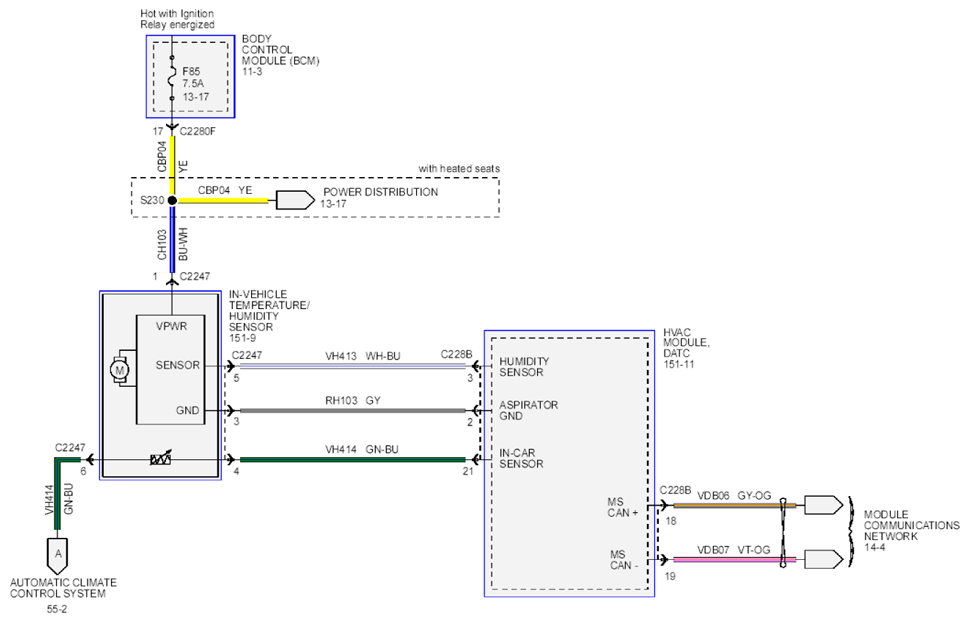

Fig 5: Automatic Climate Control System Circuit Diagram (5 Of 7)

Courtesy of FORD MOTOR CO.

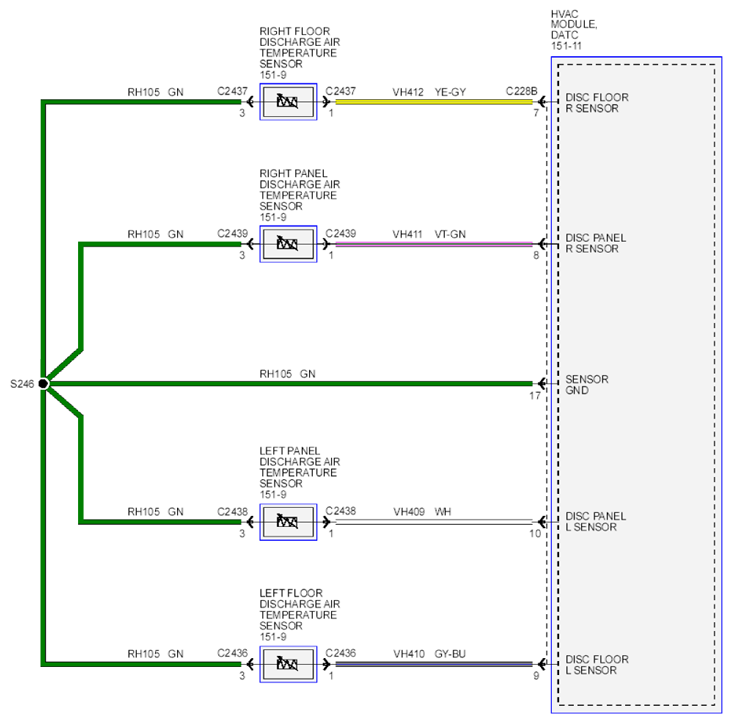

Fig 6: Automatic Climate Control System Circuit Diagram (6 Of 7)

Courtesy of FORD MOTOR CO.

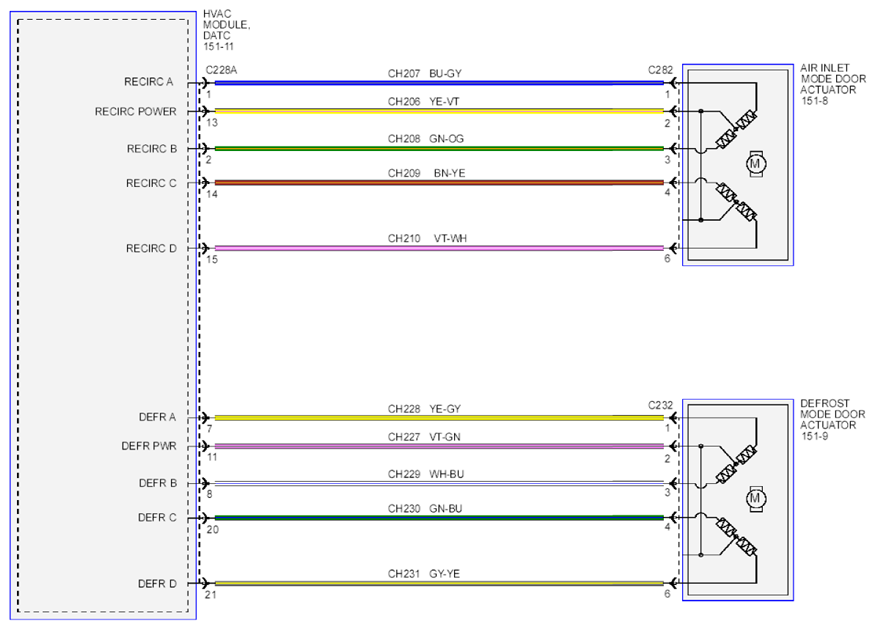

Fig 7: Automatic Climate Control System Circuit Diagram (7 Of 7)

Courtesy of FORD MOTOR CO.
