Sync Gen 2

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

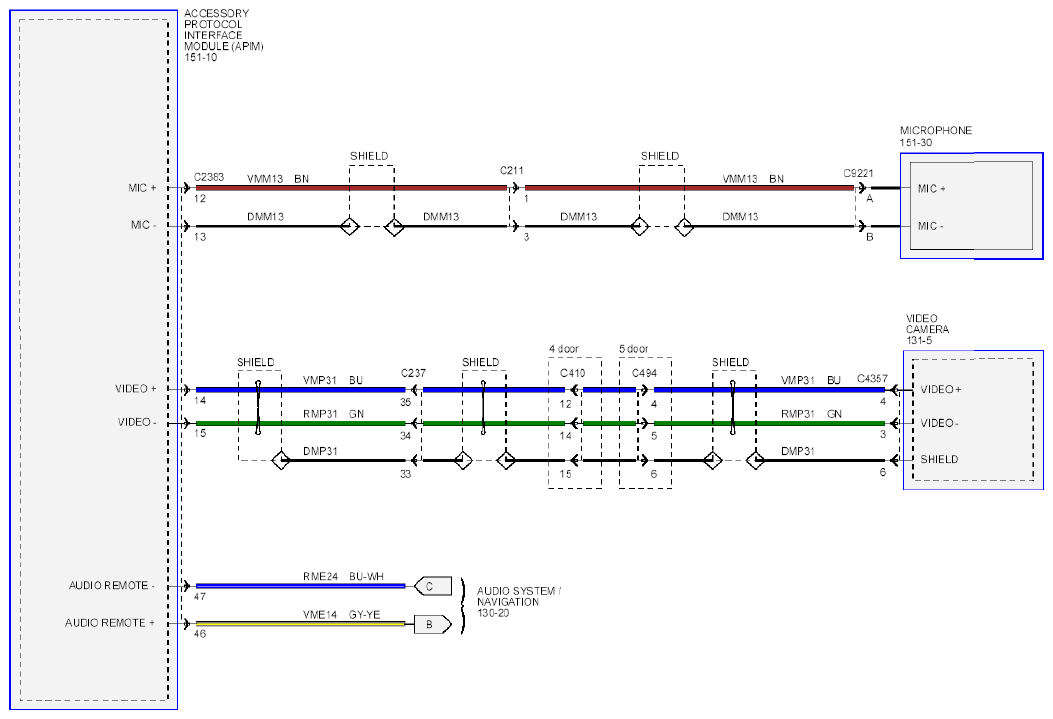

Fig 1: Audio System And Navigation Circuit Diagram - SYNC Gen 2 (1 Of 4)

Courtesy of FORD MOTOR CO.

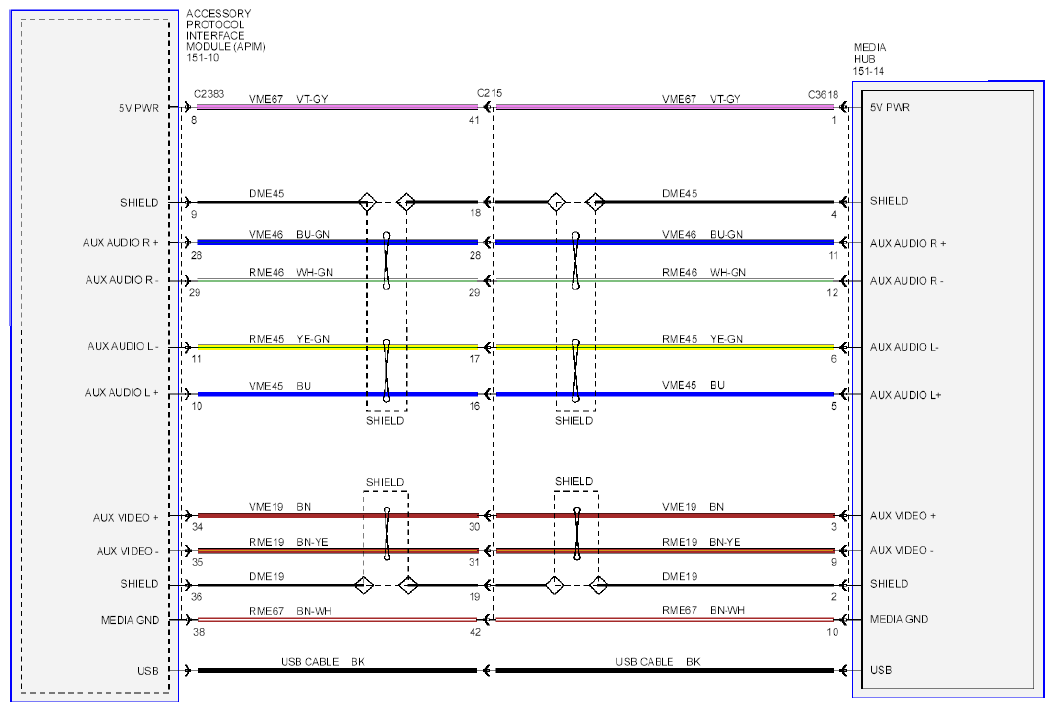

Fig 2: Audio System And Navigation Circuit Diagram - SYNC Gen 2 (2 Of 4)

Courtesy of FORD MOTOR CO.

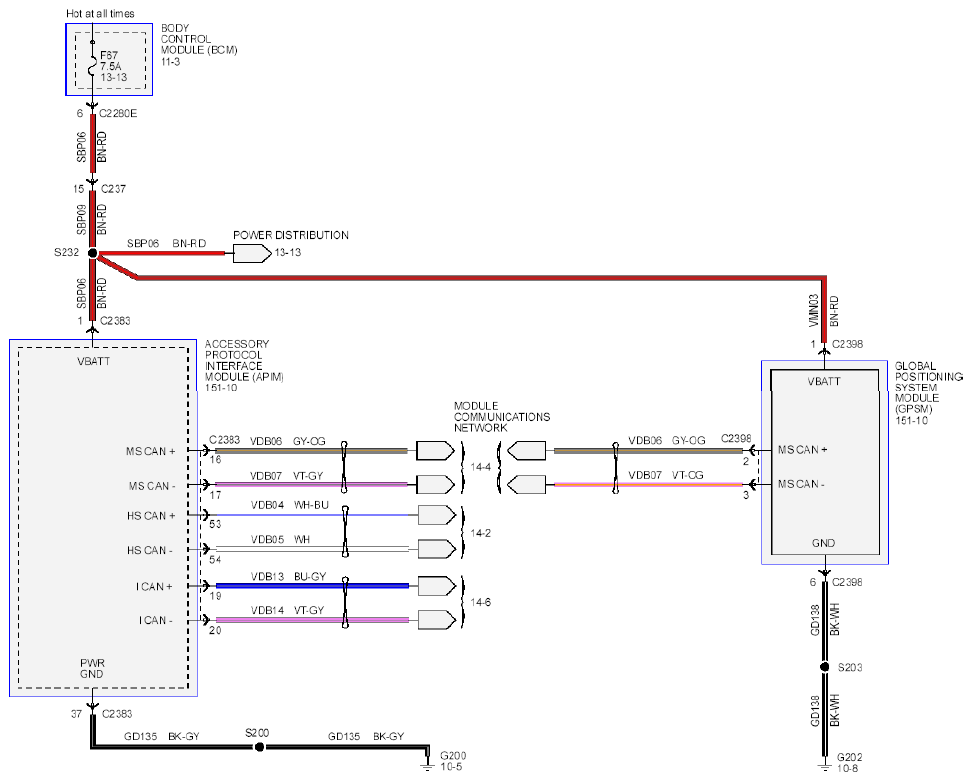

Fig 3: Audio System And Navigation Circuit Diagram - SYNC Gen 2 (3 Of 4)

Courtesy of FORD MOTOR CO.

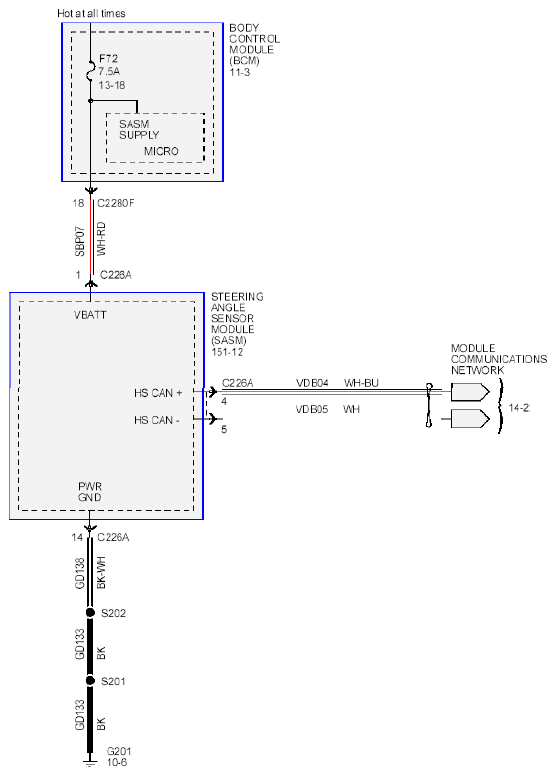

Fig 4: Audio System And Navigation Circuit Diagram - SYNC Gen 2 (4 Of 4)

Courtesy of FORD MOTOR CO.

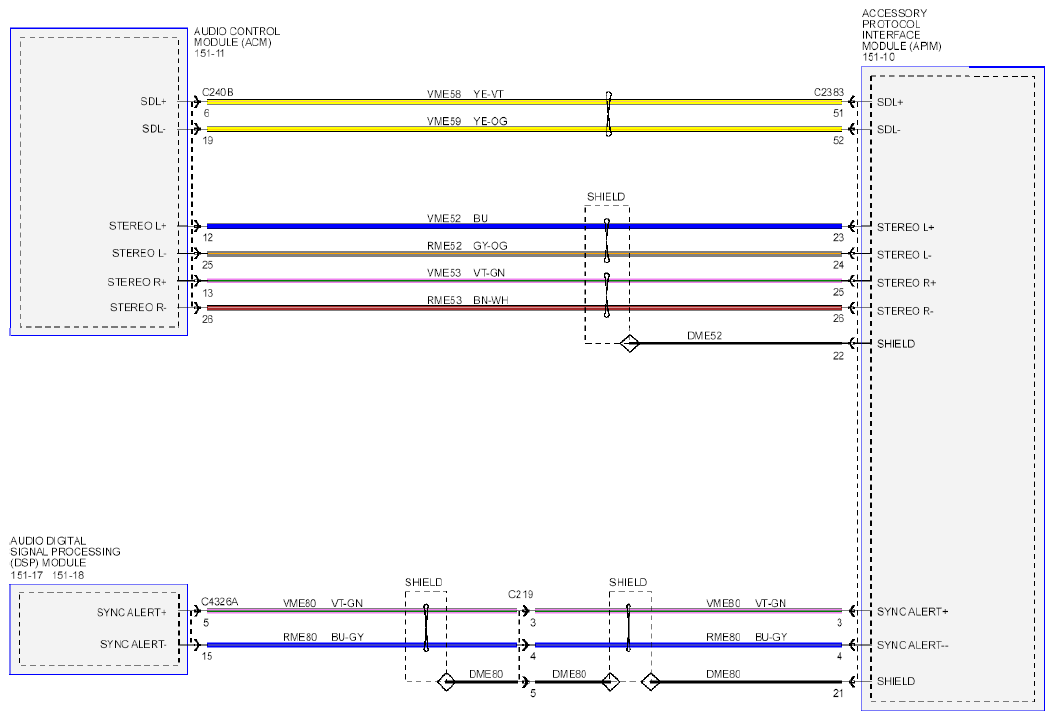

Fig 5: Audio System And Navigation Circuit Diagram

Courtesy of FORD MOTOR CO.
