Sync Gen 1

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

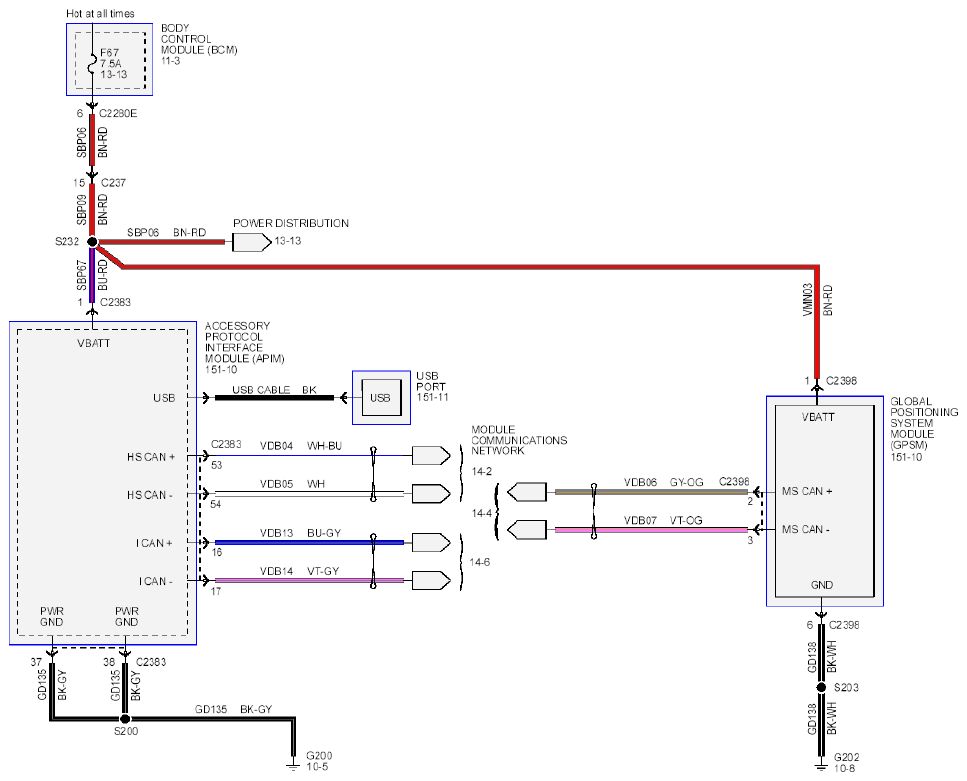

Fig 1: Audio System And Navigation Circuit Diagram - SYNC Gen 1 (1 Of 2)
G07918172Courtesy of FORD MOTOR CO.

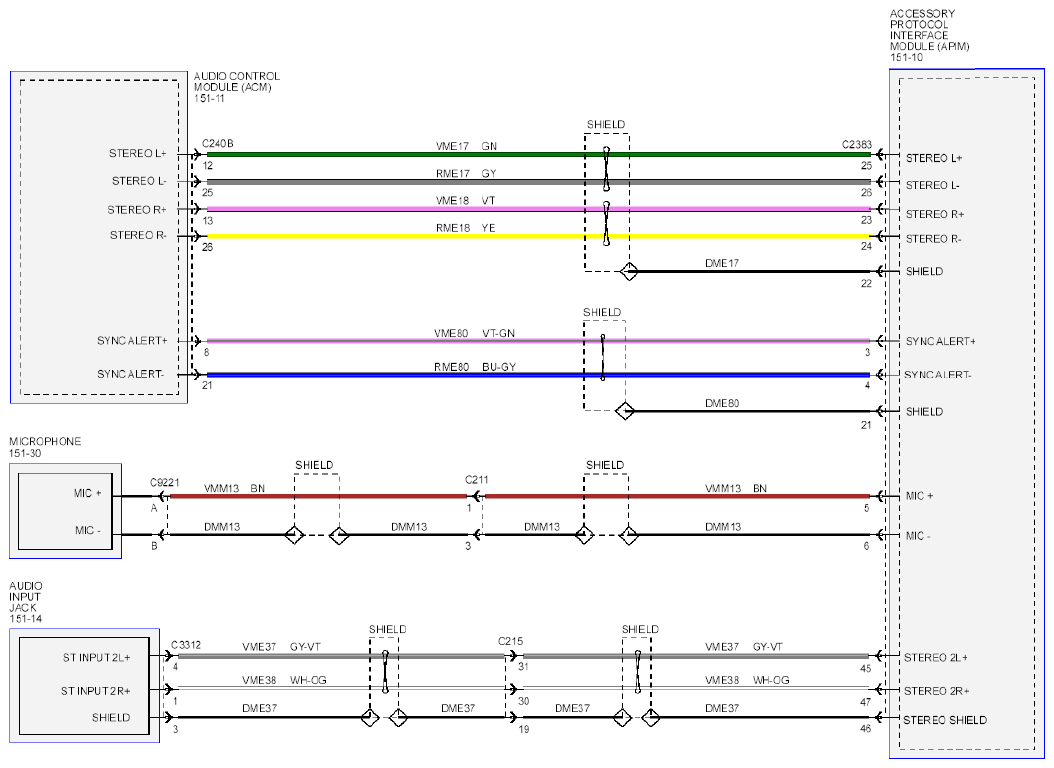

Fig 2: Audio System And Navigation Circuit Diagram - SYNC Gen 1 (2 Of 2)
G07918173Courtesy of FORD MOTOR CO.
