Premium Audio RH Lower Switch

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

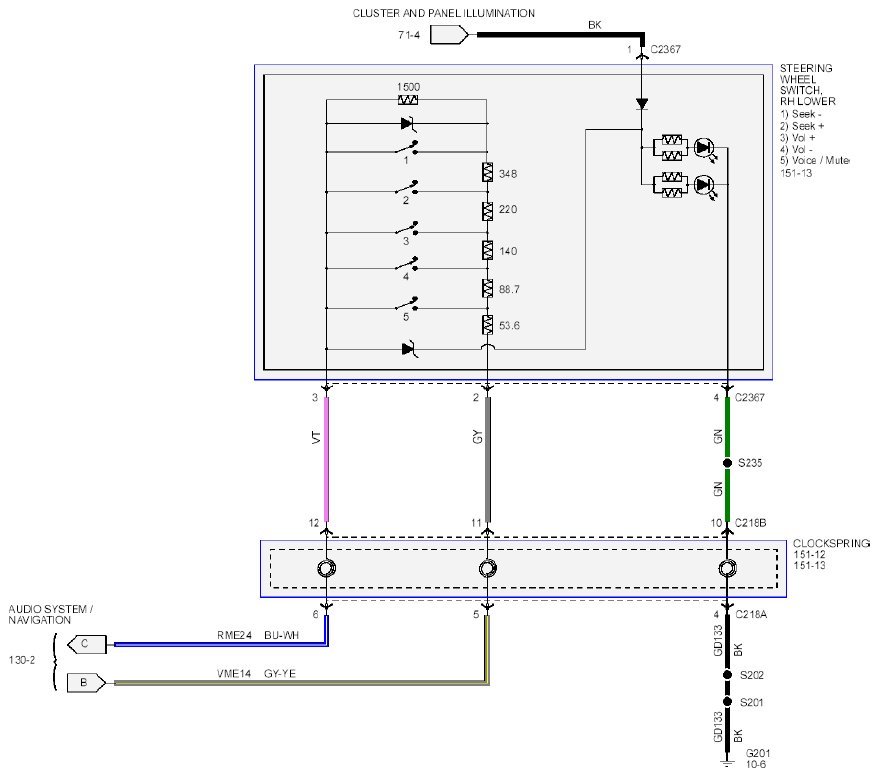

Fig 1: Audio System And Navigation Circuit Diagram - Premium Audio RH Lower Switch
G07918182Courtesy of FORD MOTOR CO.
