2012 Focus Location Index: Connectors

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

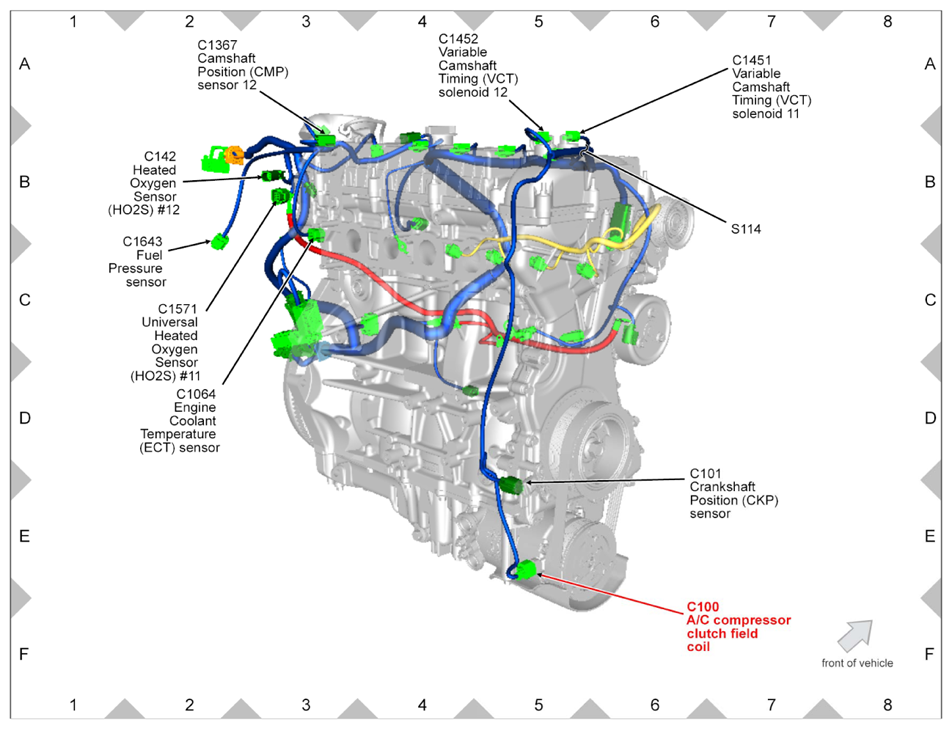

Fig 1: C100 A/C Compressor Clutch Field Coil Location - Engine, Lower RH Rear

Courtesy of FORD MOTOR CO.

Fig 2: C101 Crankshaft Position (CKP) Sensor Location - Engine, Lower RH Rear

Courtesy of FORD MOTOR CO.

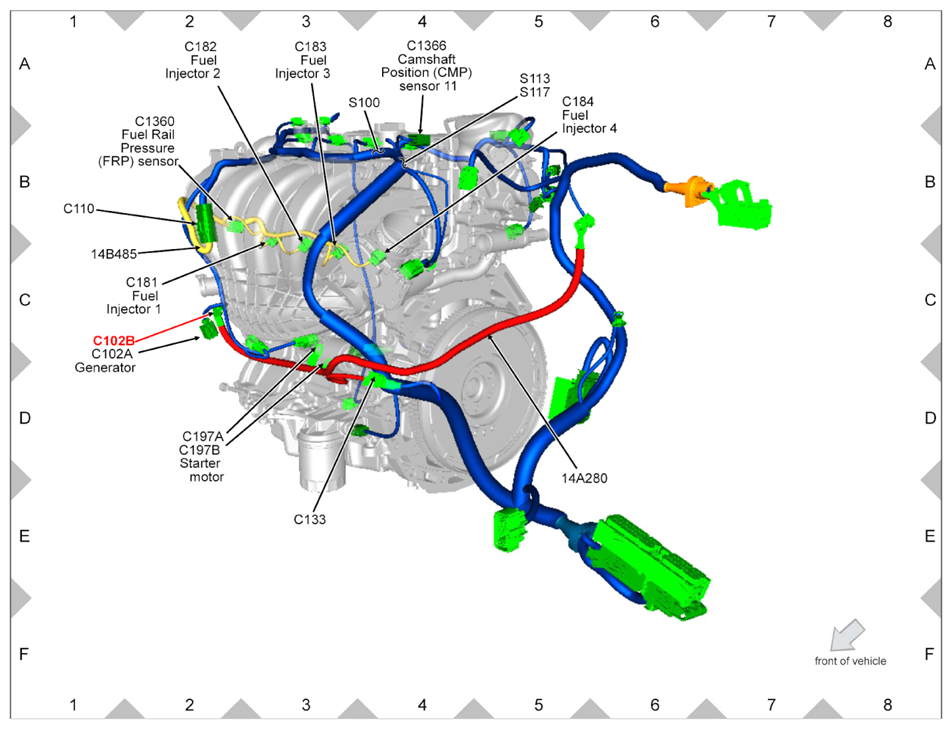

Fig 3: C102A Generator Location - Engine, RH Front

Courtesy of FORD MOTOR CO.

Fig 4: C102B Generator Location - Engine, RH Front

Courtesy of FORD MOTOR CO.

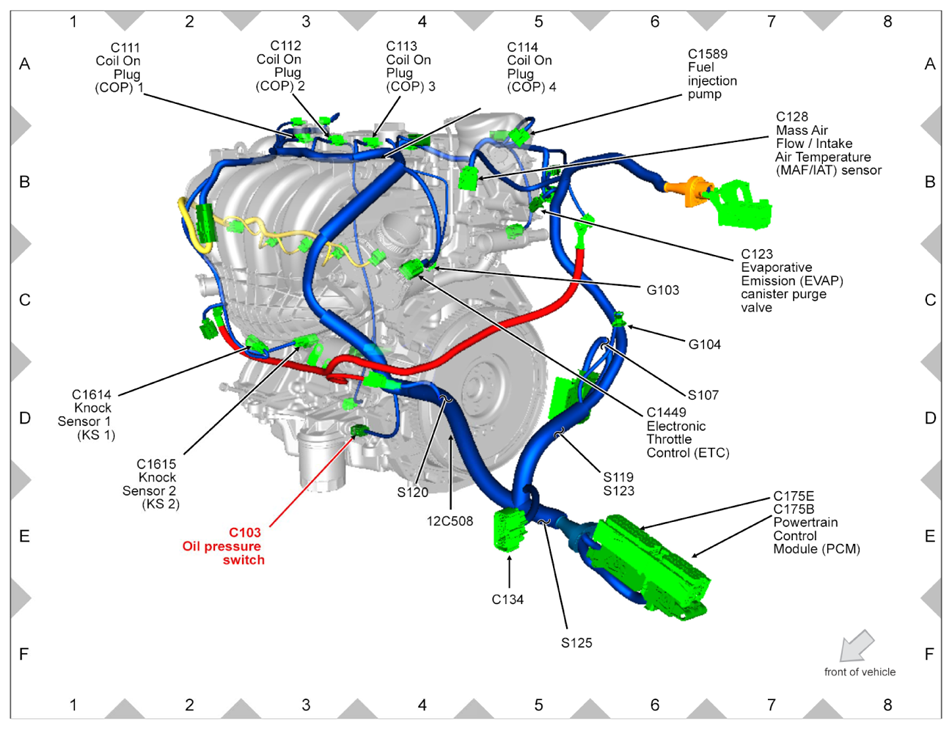

Fig 5: C103 Oil Pressure Switch Location - Front Bottom Of Engine

Courtesy of FORD MOTOR CO.

Fig 6: C110 Location - RH Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 7: C111 Coil On Plug (COP) 1 Location - Top Of Engine, RH Side

Courtesy of FORD MOTOR CO.

Fig 8: C112 Coil On Plug (COP) 2 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 9: C113 Coil On Plug (COP) 3 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 10: C114 Coil On Plug (COP) 4 Location - Top Of Engine, LH Side

Courtesy of FORD MOTOR CO.

Fig 11: C123 Evaporative Emission (EVAP) Canister Purge Valve Location - LH Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 12: C124 Brake Fluid Level Switch Location - Engine Compartment, Rear

Courtesy of FORD MOTOR CO.

Fig 13: C127 Anti-Theft Hood Switch Location - Engine Compartment, Front

Courtesy of FORD MOTOR CO.

Fig 14: C128 Mass Air Flow / Intake Air Temperature (MAF/IAT) Sensor Location - Top LH Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 15: C131 Horn Location - Engine Compartment RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 16: C133 Location - Engine, Lower Front

Courtesy of FORD MOTOR CO.

Fig 17: C134 Location - Engine Compartment LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 18: C135 Anti-Lock Brake System (ABS) Module Location - Engine Compartment LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 19: C137 Windshield Washer Pump Motor Location - Engine Compartment RH Side, Front

Courtesy of FORD MOTOR CO.

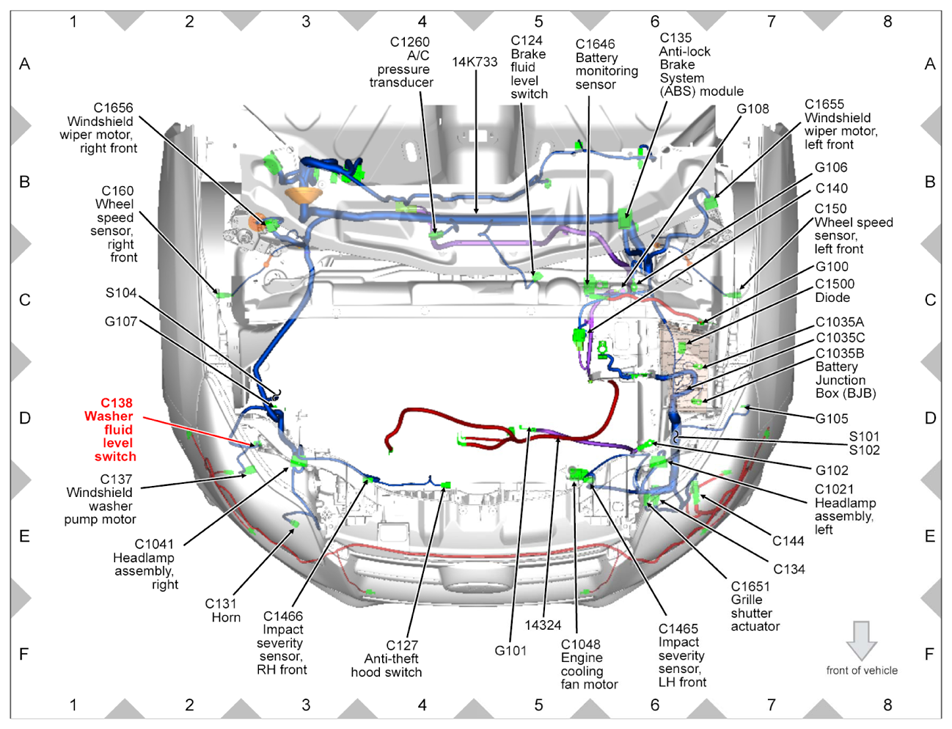

Fig 20: C138 Washer Fluid Level Switch Location - Engine Compartment RH Side, Front

Courtesy of FORD MOTOR CO.

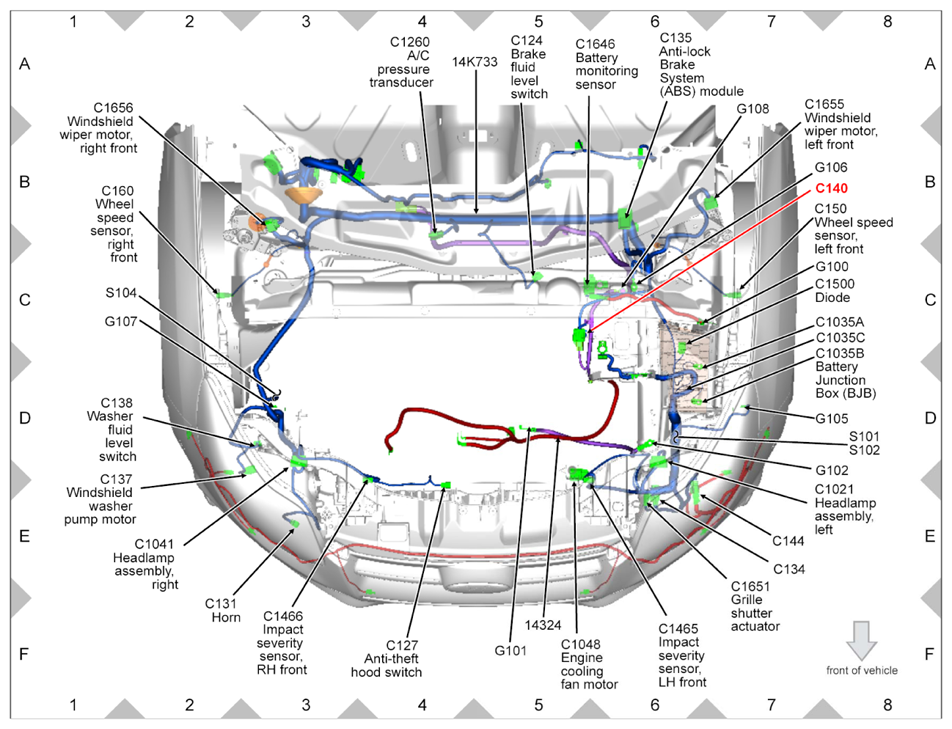

Fig 21: C140 Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 22: C142 Heated Oxygen Sensor (HO2S) #12 Location - Engine, Top Left Rear

Courtesy of FORD MOTOR CO.

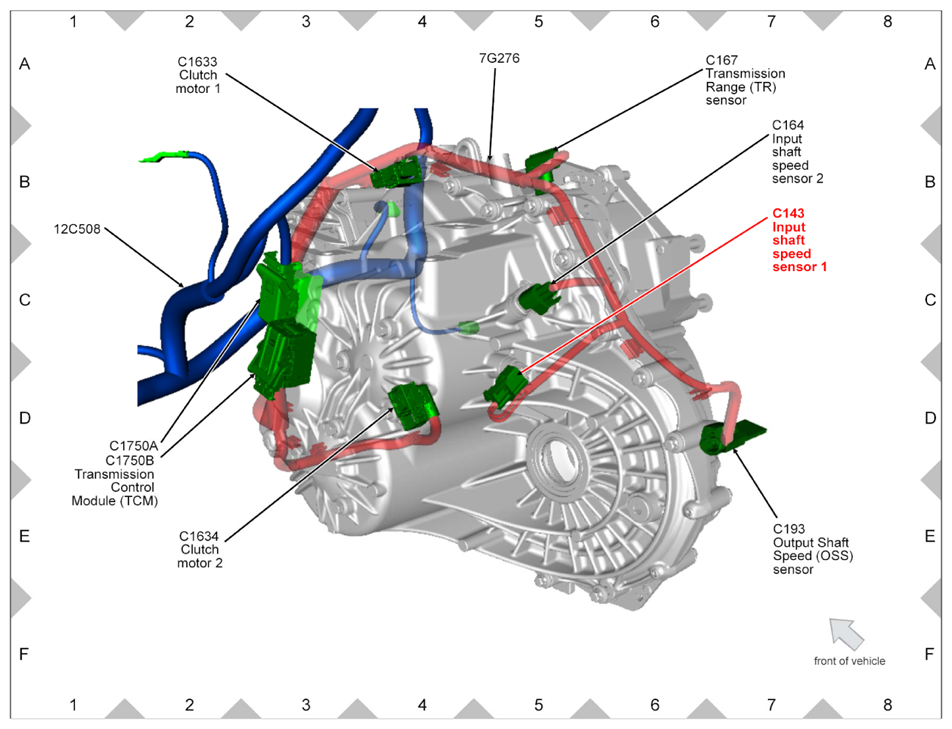

Fig 23: C143 Input Shaft Speed Sensor 1 Location - (Automatic Transmission) Transmission, Rear

Courtesy of FORD MOTOR CO.

Fig 24: C144 Location - Engine Compartment LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 25: C150 Wheel Speed Sensor, Left Front Location - Engine Compartment LH Side, Rear

Courtesy of FORD MOTOR CO.

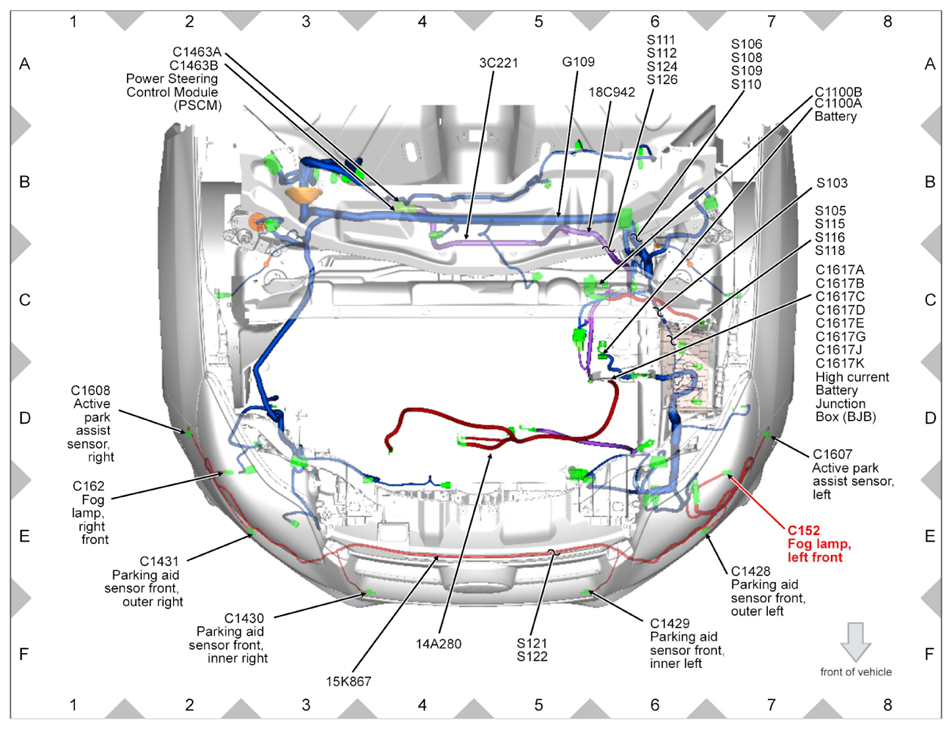

Fig 26: C152 Fog Lamp, Left Front Location - Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 27: C160 Wheel Speed Sensor, Right Front Location - Engine Compartment RH Side, Rear

Courtesy of FORD MOTOR CO.

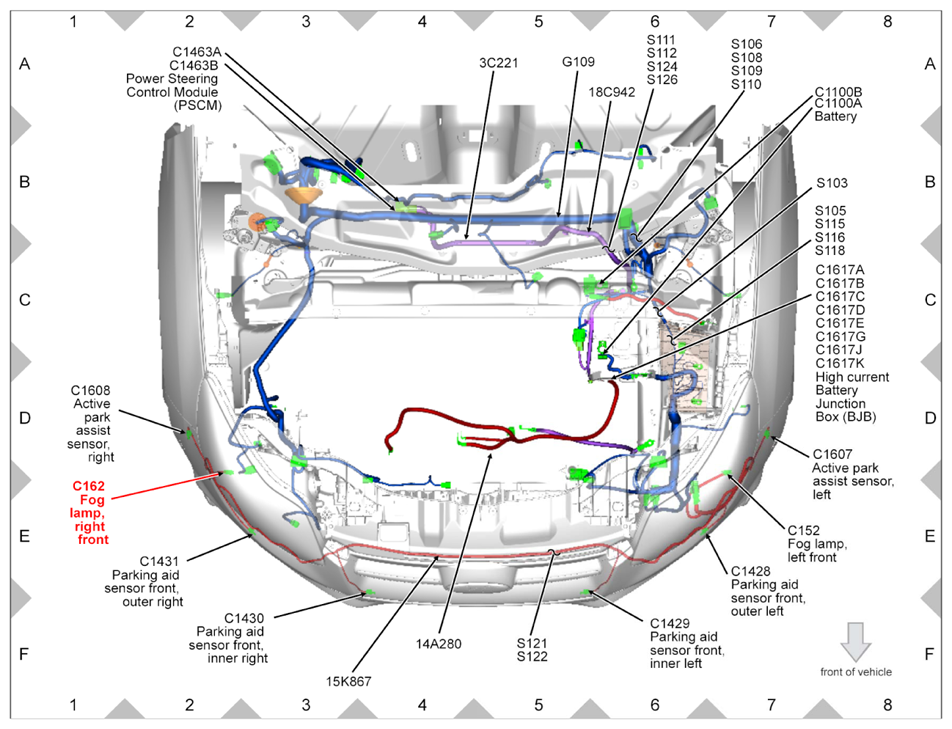

Fig 28: C162 Fog Lamp, Right Front Location - Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

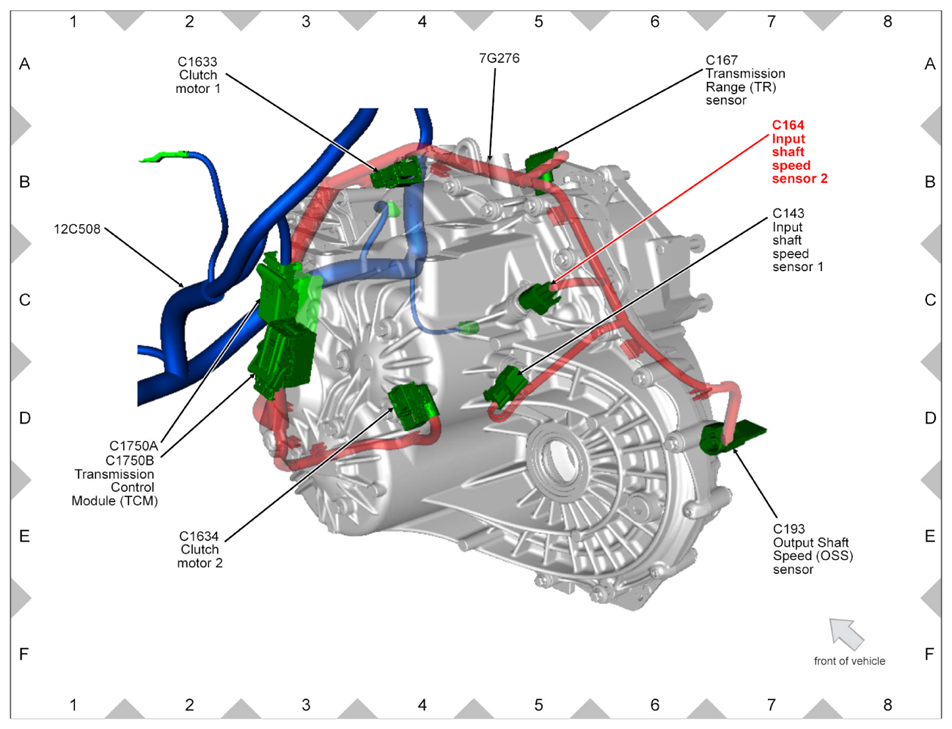

Fig 29: C164 Input Shaft Speed Sensor 2 Location - (Automatic Transmission) Transmission, Rear

Courtesy of FORD MOTOR CO.

Fig 30: C167 Transmission Range (TR) Sensor Location - (Automatic Transmission) Transmission, Top

Courtesy of FORD MOTOR CO.

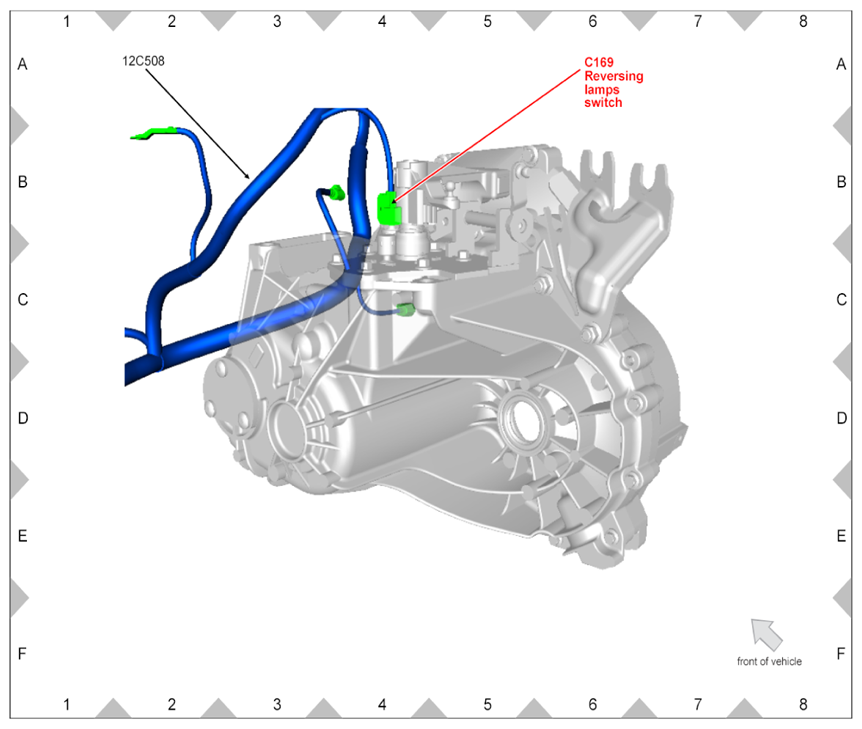

Fig 31: C169 Reversing Lamps Switch Location - (Manual Transmission) On Transmission, Top

Courtesy of FORD MOTOR CO.

Fig 32: C175B Powertrain Control Module (PCM) Location - Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 33: C175E Location - Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

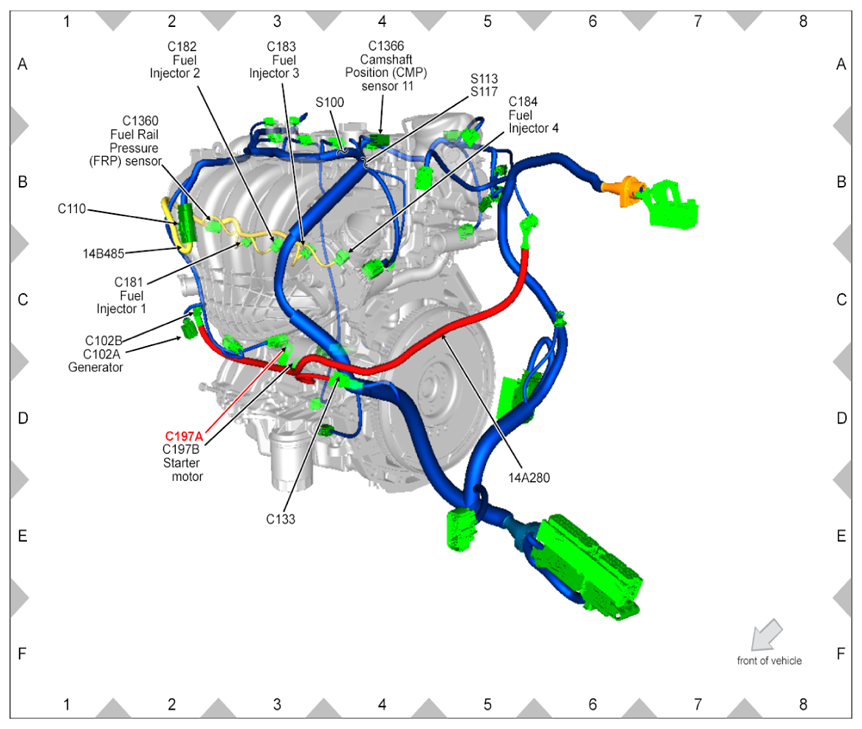

Fig 34: C181 Fuel Injector 1 Location - Top Of Engine, RH Side

Courtesy of FORD MOTOR CO.

Fig 35: C182 Fuel Injector 2 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 36: C183 Fuel Injector 3 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 37: C184 Fuel Injector 4 Location - Top Of Engine, LH Side

Courtesy of FORD MOTOR CO.

Fig 38: C193 Output Shaft Speed (CSS) Sensor Location - (Automatic Transmission) Transmission, Rear

Courtesy of FORD MOTOR CO.

Fig 39: C197A Location - Engine, Lower Front

Courtesy of FORD MOTOR CO.

Fig 40: C197B Starter Motor Location - Engine, RH Front

Courtesy of FORD MOTOR CO.

Fig 41: C205 Headlamp Switch Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 42: C210 Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 43: C211 Location - Lower RH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 44: C213 Location - Behind Dash Panel, RH Side Top

Courtesy of FORD MOTOR CO.

Fig 45: C214 Location - Behind Dash Passenger Side

Courtesy of FORD MOTOR CO.

Fig 46: C215 Location - Behind Dash Passenger Side

Courtesy of FORD MOTOR CO.

Fig 47: C216A Driver Air Bag Module Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 48: C216B Driver Air Bag Module Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 49: C217A Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 50: C217B Horn Switch Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 51: C218A Clockspring Location - On Steering Column, Behind Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 52: C218B Clockspring Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 53: C226B, C218C Location - On Steering Column, Behind Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 54: C228C, C218D Location - On Steering Column, Behind Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 55: C219 Location - Behind Dash Passenger Side

Courtesy of FORD MOTOR CO.

Fig 56: C220 Instrument Panel Cluster (IPC) Location - Instrument Panel, LH Side Top

Courtesy of FORD MOTOR CO.

Fig 57: C226A Steering Angle Sensor Module (SASM) Location - On Steering Column, Behind Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 58: C226B, C218C Location - On Steering Column, Behind Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 59: C226C, C218D Location - On Steering Column, Behind Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 60: C228A HVAC Module, DATC Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 61: C228B Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 62: C232 Defrost Mode Door Actuator Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 63: C236 Panel/Floor Mode Door Actuator Location - Behind Dash Panel, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 64: C237 Location - Behind Dash Passenger

Courtesy of FORD MOTOR CO.

Fig 65: C238 Location - Behind Dash Passenger Side

Courtesy of FORD MOTOR CO.

Fig 66: C240A Audio Control Module (ACM) Location - Behind Dash Passenger Center

Courtesy of FORD MOTOR CO.

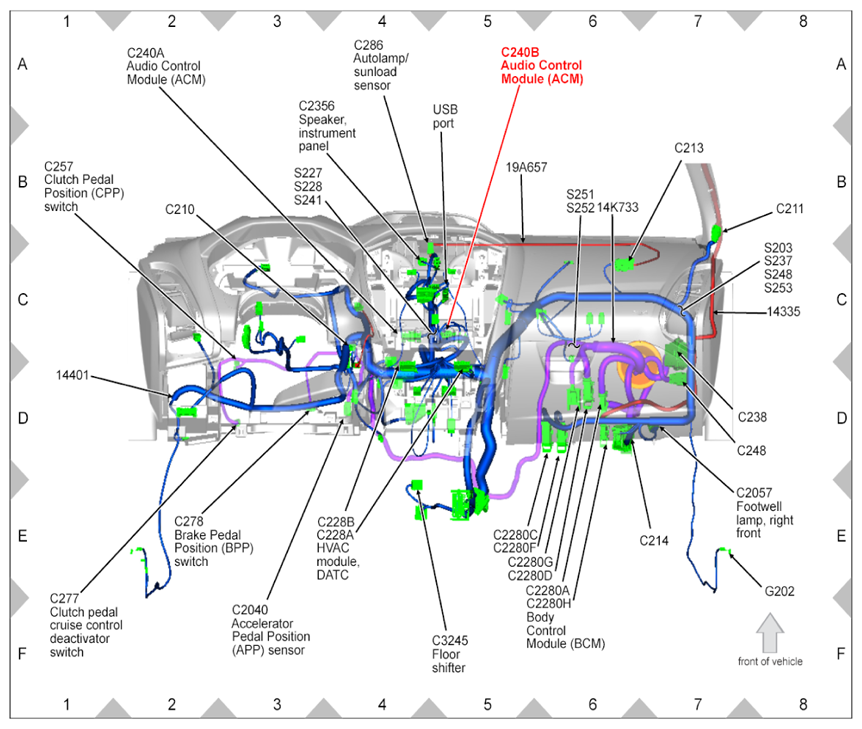

Fig 67: C240B Audio Control Module (ACM) Location - Behind Dash Panel Center

Courtesy of FORD MOTOR CO.

Fig 68: C241 Passenger Air Bag Deactivation (PAD) Indicator/Defrost Switch Location - Behind Dash Passenger, Center

Courtesy of FORD MOTOR CO.

Fig 69: C248 Location - Behind Dash Passenger, Side

Courtesy of FORD MOTOR CO.

Fig 70: C250 Ignition Switch (W/O IA) Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 71: C251 Data Link Connector (DLC) Location - Instrument Panel, LH Side Bottom

Courtesy of FORD MOTOR CO.

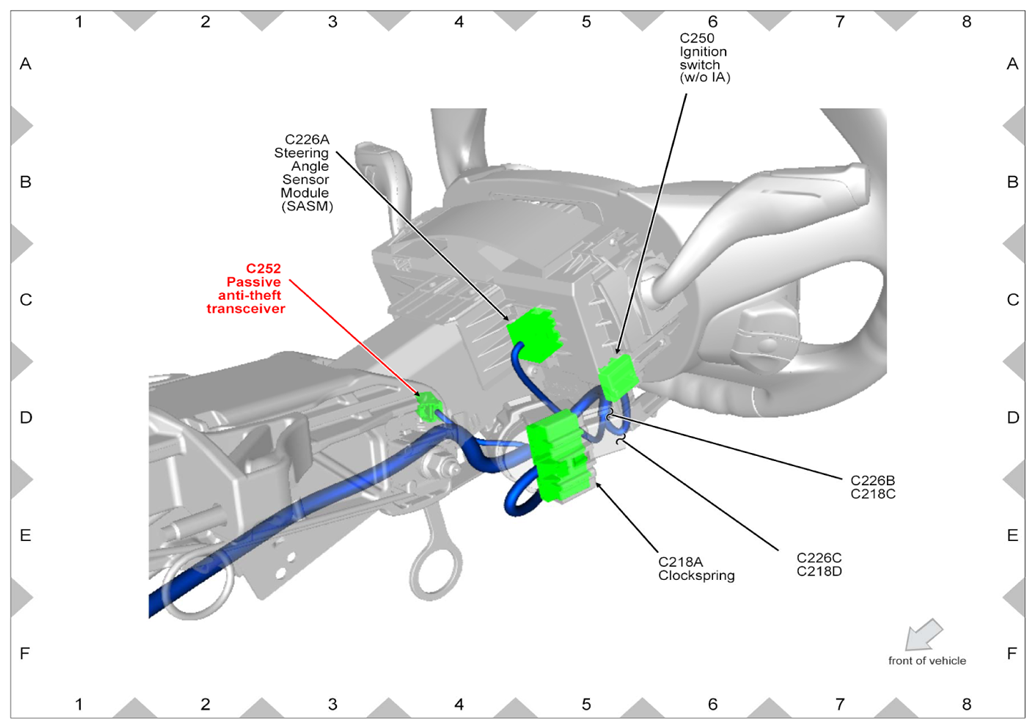

Fig 72: C252 Passive Anti-Theft Transceiver Location - On Steering Column

Courtesy of FORD MOTOR CO.

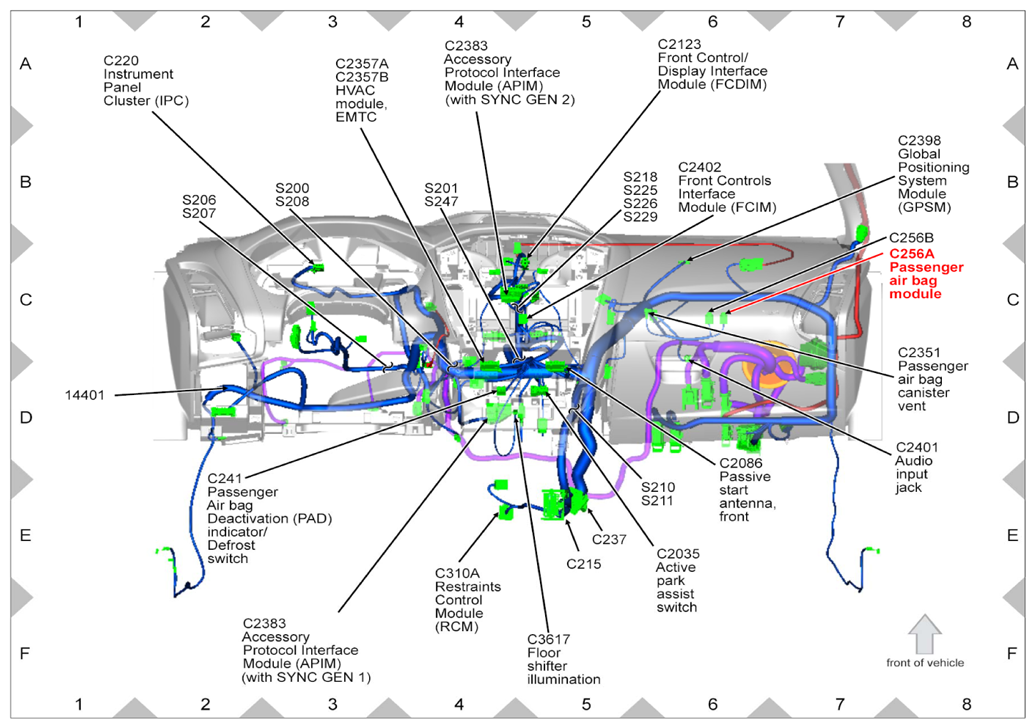

Fig 73: C256A Passenger Air Bag Module Location - Behind RH Side Of Dash Panel

Courtesy of FORD MOTOR CO.

Fig 74: C256B Location - Behind RH Side Of Dash Panel

Courtesy of FORD MOTOR CO.

Fig 75: C257 Clutch Pedal Position (CPP) Switch Location - Under Dash, LH Side

Courtesy of FORD MOTOR CO.

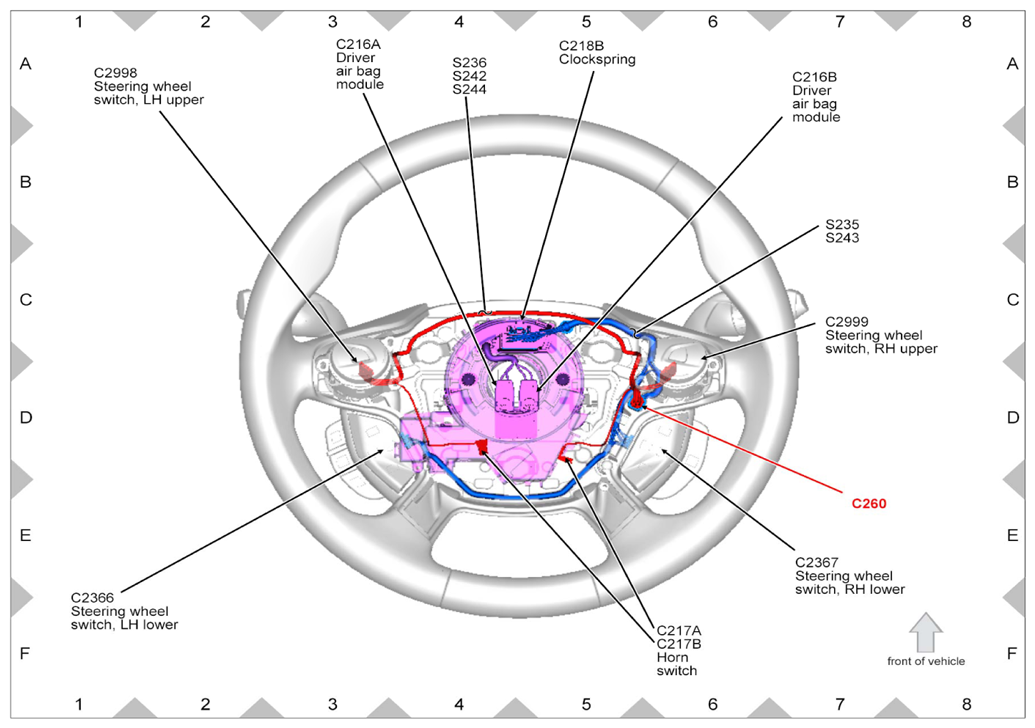

Fig 76: C260 Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 77: C277 Clutch Pedal Cruise Control Deactivator Switch Location - Under Dash, LH Side

Courtesy of FORD MOTOR CO.

Fig 78: C278 Brake Pedal Position (BPP) Switch Location - Under Dash, LH Side

Courtesy of FORD MOTOR CO.

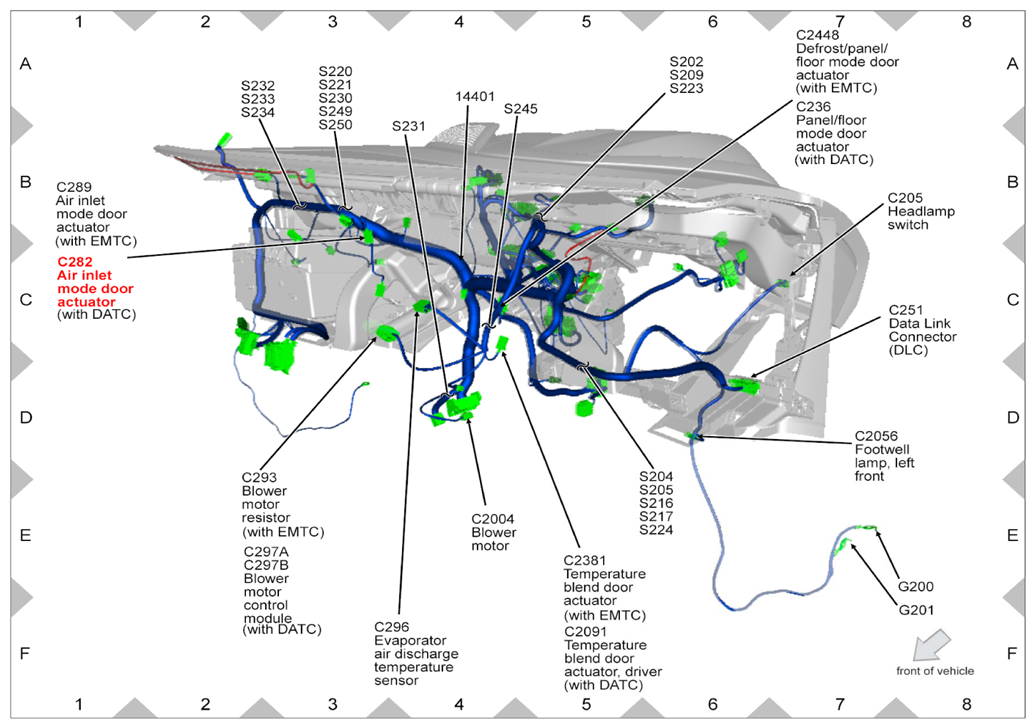

Fig 79: C282 Air Inlet Mode Door Actuator (With DATC) Location - Behind RH Side Of Dash Panel

Courtesy of FORD MOTOR CO.

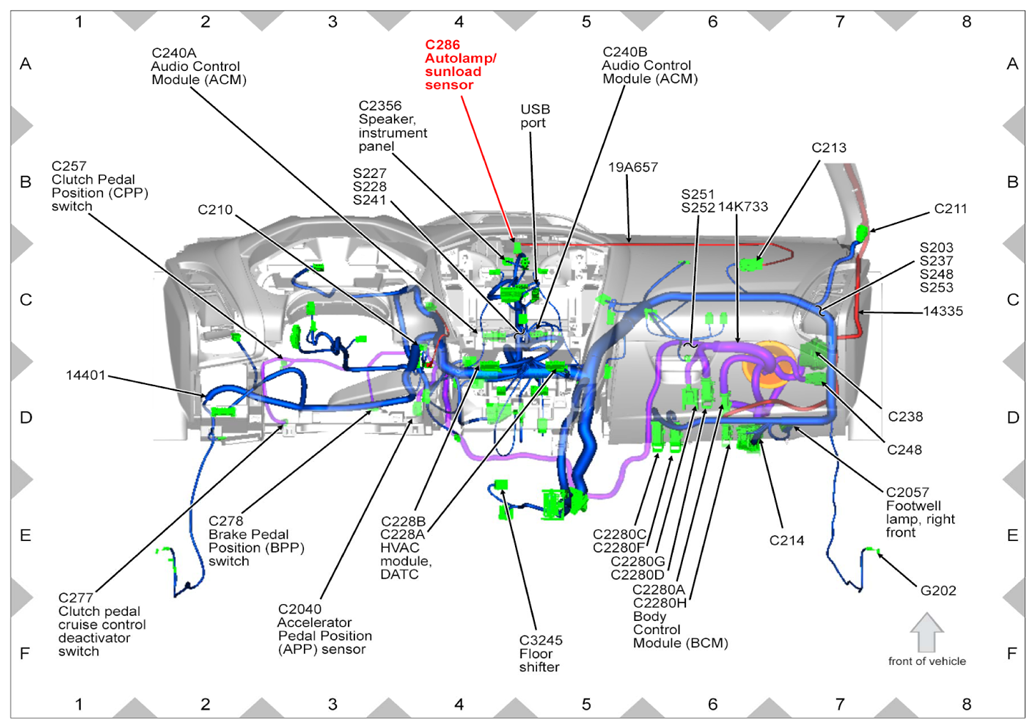

Fig 80: C286 Autolamp/Sunload Sensor Location - Behind Dash Panel, Center Top

Courtesy of FORD MOTOR CO.

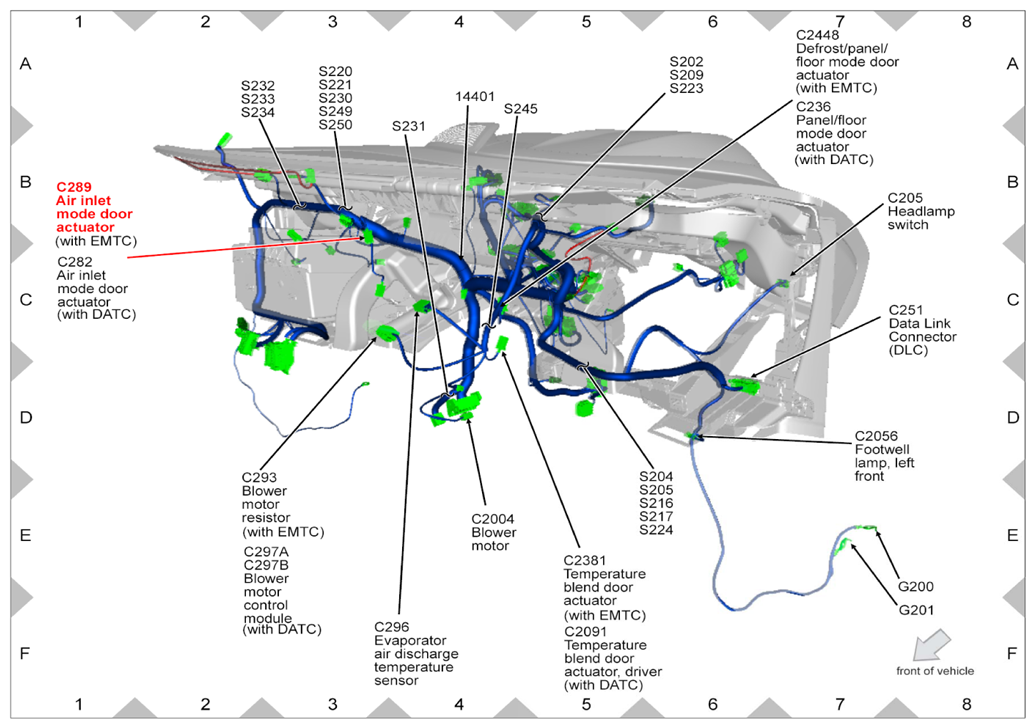

Fig 81: C289 Air Inlet Mode Door Actuator/With EMTC) Location - Behind RH Side Of Dash Panel

Courtesy of FORD MOTOR CO.

Fig 82: C293 Blower Motor Resistor (With EMTC) Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

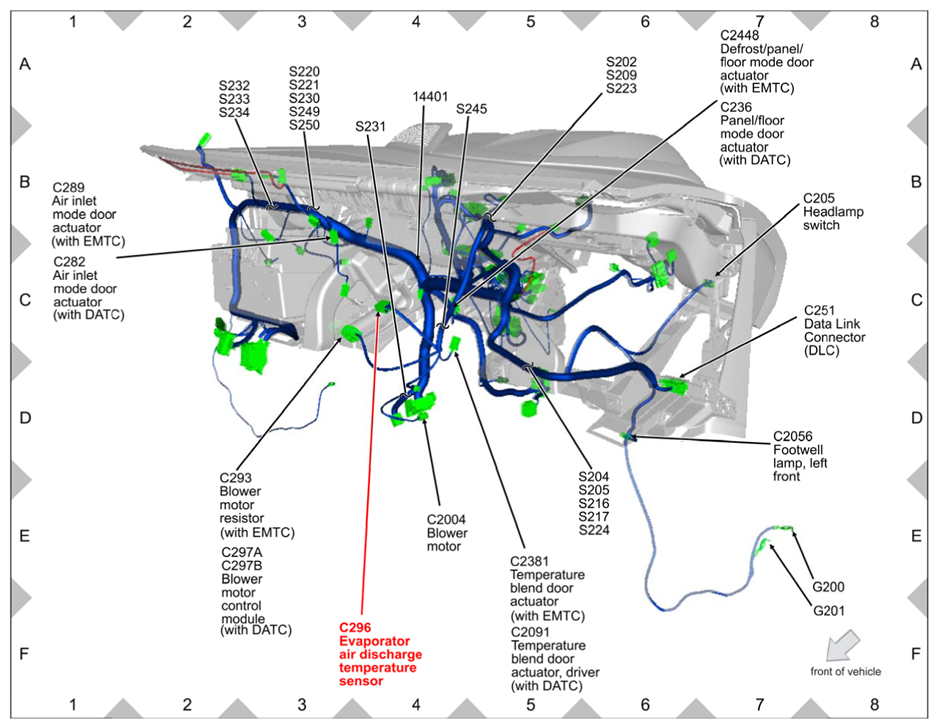

Fig 83: C296 Evaporator Air Discharge Temperature Sensor Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 84: C297A, C297B Blower Motor Control Module (With DATC) Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 85: C377 EVAP Canister Vent Control Solenoid Location - (4 Door) On Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 86: C300B Location - Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 87: C300C Location - Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 88: C300D Location - Driver Seat, Front

Courtesy of FORD MOTOR CO.

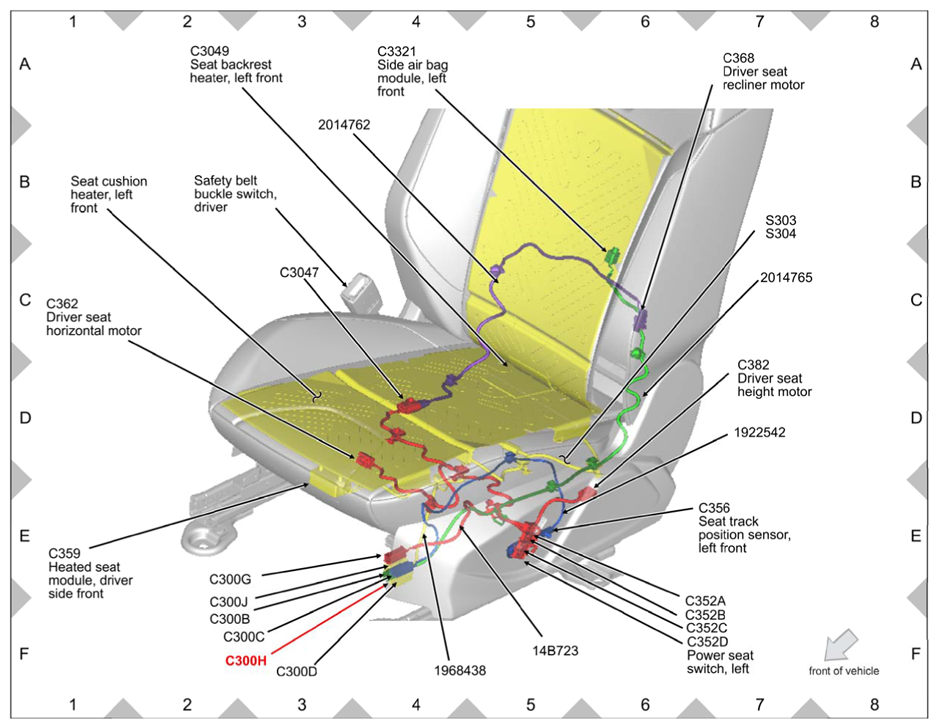

Fig 89: C300G Location - Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 90: C300H Location - Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 91: C300J Location - Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 92: C303 Safety Belt Retractor Pretensioner, Passenger Location - Near Base Of Passenger B-Pillar

Courtesy of FORD MOTOR CO.

Fig 93: C310A Restraints Control Module (RCM) Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 94: C310B Restraints Control Module (RCM) Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 95: C313 Location - Driver B-Pillar

Courtesy of FORD MOTOR CO.

Fig 96: C314 Location - Passenger B-Pillar

Courtesy of FORD MOTOR CO.

Fig 97: C319 Cigar Lighter, Front Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 98: C320 Seat Heater Switch, Driver Side Location - Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 99: C321 Seat Heater Switch, Passenger Side Location - Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 100: C323 Safety Belt Retractor Pretensioner, Driver Location - Near Base Of Driver B-Pillar

Courtesy of FORD MOTOR CO.

Fig 101: C326 Passive Start Antenna, Center Location - Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 102: C329 Heated Seat Module, Passenger Side Front Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

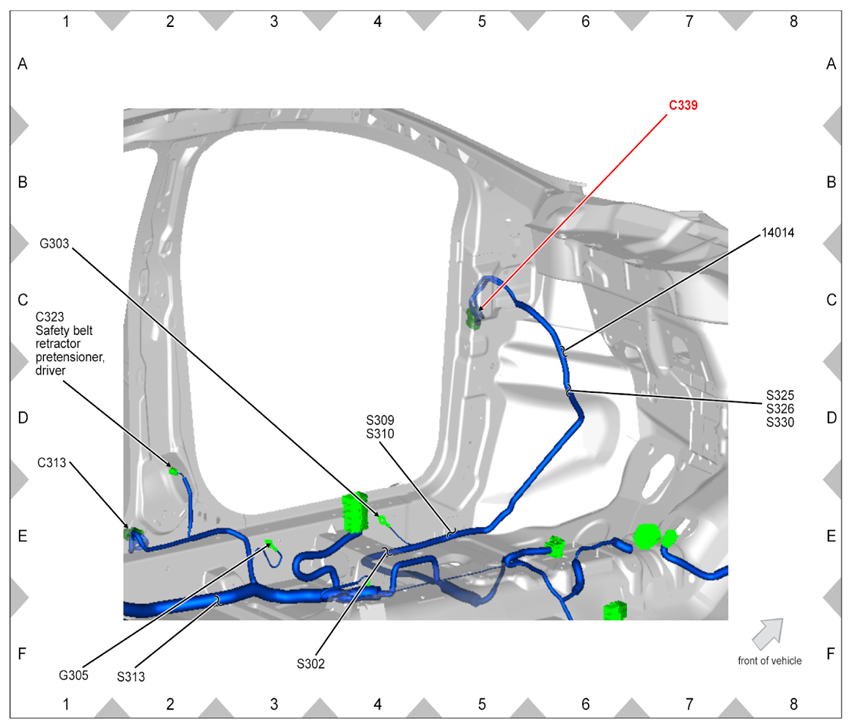

Fig 103: C339 Location - Driver A-Pillar

Courtesy of FORD MOTOR CO.

Fig 104: C340 Location - Passenger A-Pillar

Courtesy of FORD MOTOR CO.

Fig 105: C352A Location - Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 106: C352B Location - Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 107: C352C Location - Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 108: C352D Power Seat Switch, Left Location - Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 109: C356 Seat Track Position Sensor, Left Front Location - Driver Seat, LH Side Rear

Courtesy of FORD MOTOR CO.

Fig 110: C359 Heated Seat Module, Driver Side Front Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 111: C362 Driver Seat Horizontal Motor Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 112: C368 Driver Seat Recliner Motor Location - Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 113: C377 EVAP Canister Vent Control Solenoid Location - (5 Door) On Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 114: C428 Luggage Compartment Lamp Location - (4 Door) In Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 115: C382 Driver Seat Height Motor Location - Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 116: C389 Safety Belt Load Limiting Retractor, Passenger Location - Near Base Of Passenger B-Pillar

Courtesy of FORD MOTOR CO.

Fig 117: C402A Rear Window Defrost Grid Location - (4 Door) Left Side Of Rear Window

Courtesy of FORD MOTOR CO.

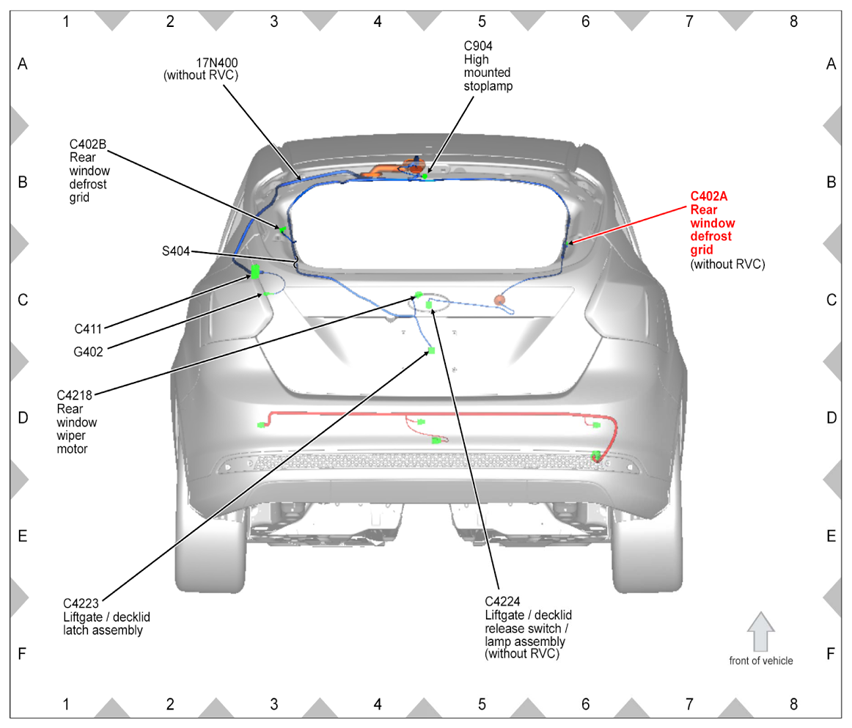

Fig 118: C402A Rear Window Defrost Grid (Without RVC) Location - (5 Door) Vehicle Rear, RH Side

Courtesy of FORD MOTOR CO.

Fig 119: C402B Rear Window Defrost Grid Location - (4 Door) Right Side Of Rear Window

Courtesy of FORD MOTOR CO.

Fig 120: C402B Rear Window Defrost Grid Location - (5 Door) Vehicle Rear, LH Side

Courtesy of FORD MOTOR CO.

Fig 121: C405 Location - (4 Door) Under Vehicle, Near Left Rear Door

Courtesy of FORD MOTOR CO.

Fig 122: C405 Location - (5 Door) Under Vehicle, Near Left Rear Door

Courtesy of FORD MOTOR CO.

Fig 123: C406 Location - (4 Door) Under Vehicle, Near Right Rear Door

Courtesy of FORD MOTOR CO.

Fig 124: C406 Location - (5 Door) Under Vehicle, Near Right Rear Door

Courtesy of FORD MOTOR CO.

Fig 125: C410 Location - (4 Door) Right Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 126: C411 Location - (5 Door) Left Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 127: C412 Park/Stop/Turn Lamp, Left Rear Location - (4 Door) Left Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 128: C414 Lamp Assembly Left Rear Location - (5 Door) Left Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 129: C415 Park/Stop/Turn Lamp, Right Rear Location - (4 Door) Right Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 130: C417 Lamp Assembly, Right Rear Location - (5 Door) Right Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 131: C426 Wheel Speed Sensor, Right Rear Location - (4 Door) Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 132: C426 Wheel Speed Sensor, Right Rear Location - (5 Door) Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 133: C650 Ambient Air Temperature (AAT) Sensor Location - Passenger Door, Top Front

Courtesy of FORD MOTOR CO.

Fig 134: C431 Location - (4 Door) Under Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 135: C431 Location - (4 Door) Vehicle Rear, Bottom RH Side

Courtesy of FORD MOTOR CO.

Fig 136: C431 Location - (5 Door) Under Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 137: C431 Location - (5 Door) Vehicle Rear, Bottom RH Side

Courtesy of FORD MOTOR CO.

Fig 138: C438 Location - (4 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 139: C438 Location - (5 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 140: C440 Wheel Speed Sensor, Left Rear Location - (4 Door) Under Left Rear Of Vehicle Near Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 141: C440 Wheel Speed Sensor, Left Rear Location - (5 Door) Under Left Rear Of Vehicle Near Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 142: C451 Reversing Lamp, Left Location - (4 Door) Vehicle Rear, LH Side

Courtesy of FORD MOTOR CO.

Fig 143: C461 Reversing Lamp, Right Location - (4 Door) Vehicle Rear, RH Side

Courtesy of FORD MOTOR CO.

Fig 144: C475 High Mounted Stoplamp Location - (4 Door) Vehicle Rear

Courtesy of FORD MOTOR CO.

Fig 145: C494 Location - (5 Door) Right Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 146: C501A Location - Driver Door, Front

Courtesy of FORD MOTOR CO.

Fig 147: C501B Driver Door Module (DDM) Location - Driver Door, Front

Courtesy of FORD MOTOR CO.

Fig 148: C504A Location - Driver Door Switch Bank

Courtesy of FORD MOTOR CO.

Fig 149: C504B Master Window Control Switch (Without Door Module, With Rear Power Windows Location - Driver Door Switch Bank

Courtesy of FORD MOTOR CO.

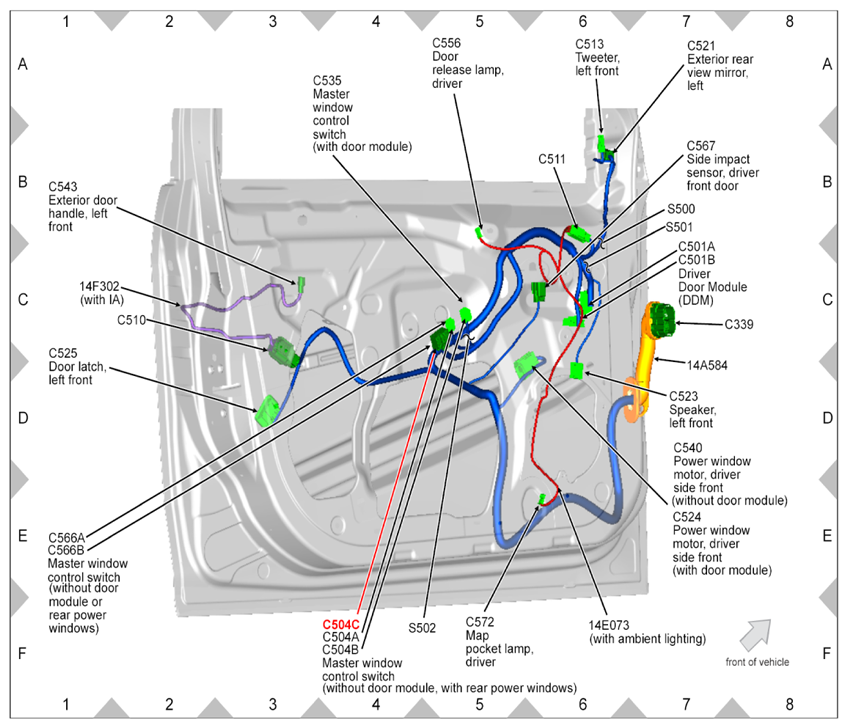

Fig 150: C504C Location - Driver Door Switch Bank

Courtesy of FORD MOTOR CO.

Fig 151: C510 Location - Driver Door, Rear

Courtesy of FORD MOTOR CO.

Fig 152: C511 Location - Driver Door Front Top

Courtesy of FORD MOTOR CO.

Fig 153: C513 Tweeter Left Front Location - Driver Door, Front Top

Courtesy of FORD MOTOR CO.

Fig 154: C521 Exterior Rear View Mirror, Left Location - Driver Door, Front Top

Courtesy of FORD MOTOR CO.

Fig 155: C523 Speaker, Left Front Location - Driver Door, Front

Courtesy of FORD MOTOR CO.

Fig 156: C524 Power Window Motor, Driver Side Front (With Door Module) Location - Driver Door

Courtesy of FORD MOTOR CO.

Fig 157: C525 Door Latch Left Front Location - Driver Door, Rear

Courtesy of FORD MOTOR CO.

Fig 158: C535 Master Window Control Switch (With Door Module) Location - Driver Door Switch Bank

Courtesy of FORD MOTOR CO.

Fig 159: C540 Power Window Motor, Driver Side Front (Without Door Module) Location - Driver Door

Courtesy of FORD MOTOR CO.

Fig 160: C543 Exterior Door Handle, Left Front Location - Driver Door

Courtesy of FORD MOTOR CO.

Fig 161: C556 Door Release Lamp, Driver Location - Driver Door

Courtesy of FORD MOTOR CO.

Fig 162: C566A Location - Driver Door Switch Bank

Courtesy of FORD MOTOR CO.

Fig 163: C566B Master Window Control Switch (Without Door Module Or Rear Power Windows) Location - Driver Door Switch Bank

Courtesy of FORD MOTOR CO.

Fig 164: C567 Side Impact Sensor, Driver Front Door Location - Driver Door

Courtesy of FORD MOTOR CO.

Fig 165: C572 Map Pocket Lamp, Driver Location - Driver Door, Bottom

Courtesy of FORD MOTOR CO.

Fig 166: C604 Window Control Switch, Passenger Side (With Door Module) Location - Passenger Door, Center

Courtesy of FORD MOTOR CO.

Fig 167: C608 Power Window Motor, Passenger Side Front (Without Door Module) Location - Passenger Door

Courtesy of FORD MOTOR CO.

Fig 168: C609 Door Latch, Right Front Location - Passenger Door, Rear

Courtesy of FORD MOTOR CO.

Fig 169: C610 Location - Passenger Door, Rear

Courtesy of FORD MOTOR CO.

Fig 170: C612 Speaker, Right Front Location - Passenger Door, Front

Courtesy of FORD MOTOR CO.

Fig 171: C613 Tweeter, Right Front Location - Passenger Door, Front Top

Courtesy of FORD MOTOR CO.

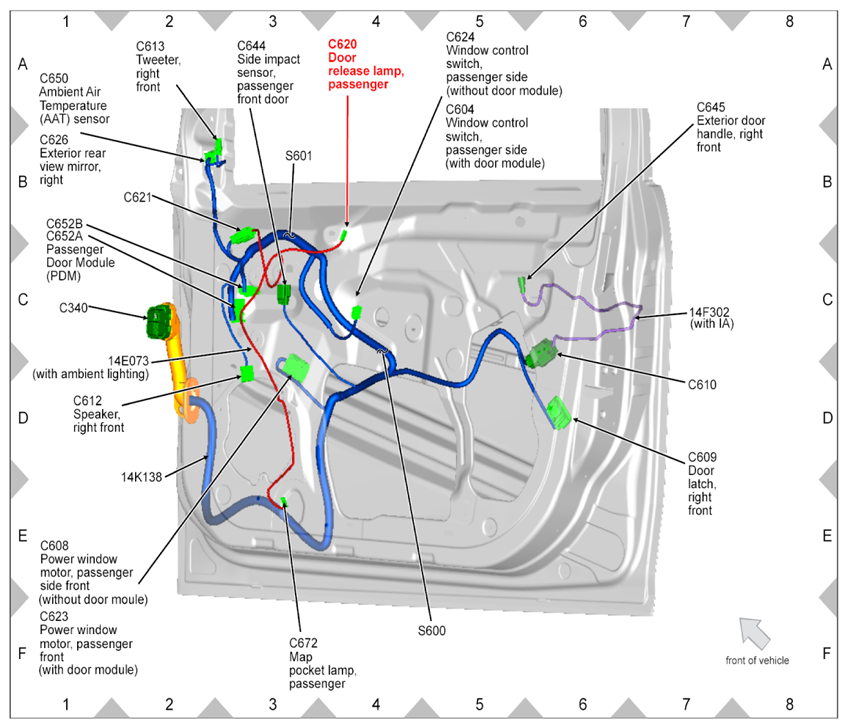

Fig 172: C620 Door Release Lamp, Passenger Location - Passenger Door

Courtesy of FORD MOTOR CO.

Fig 173: C621 Location - Passenger Door, Front

Courtesy of FORD MOTOR CO.

Fig 174: C623 Power Window Motor, Passenger Front (With Door Module) Location - Passenger Door

Courtesy of FORD MOTOR CO.

Fig 175: C624 Window Control Switch, Passenger Side (Without Door Module) Location - Passenger Door, Center

Courtesy of FORD MOTOR CO.

Fig 176: C626 Exterior Rear View Mirror, Right Location - Passenger Door, Top Front

Courtesy of FORD MOTOR CO.

Fig 177: C644 Side Impact Sensor, Passenger Front Door Location - Passenger Door

Courtesy of FORD MOTOR CO.

Fig 178: C645 Exterior Door Handle, Right Front Location - Passenger Door

Courtesy of FORD MOTOR CO.

Fig 179: C652A Passenger Door Module (PDM) Location - Passenger Door, Front

Courtesy of FORD MOTOR CO.

Fig 180: C1100A Battery Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 181: C652B Location - Passenger Door, Upper Front

Courtesy of FORD MOTOR CO.

Fig 182: C672 Map Pocket Lamp, Passenger Location - Passenger Door, Bottom

Courtesy of FORD MOTOR CO.

Fig 183: C700 Location - Rear Door, Rear

Courtesy of FORD MOTOR CO.

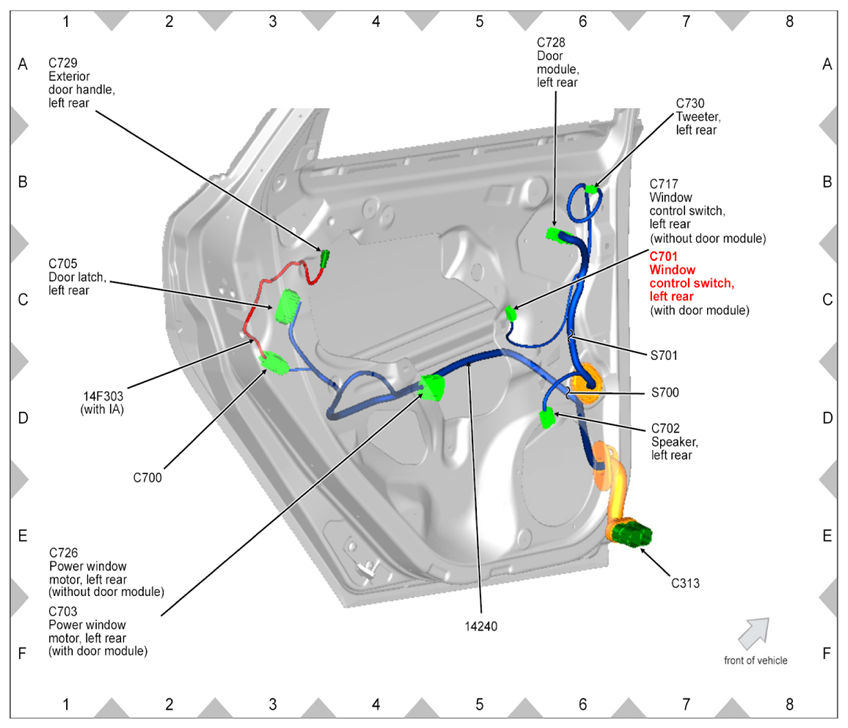

Fig 184: C701 Window Control Switch, Left Rear (With Door Module) Location - Rear Door, Center

Courtesy of FORD MOTOR CO.

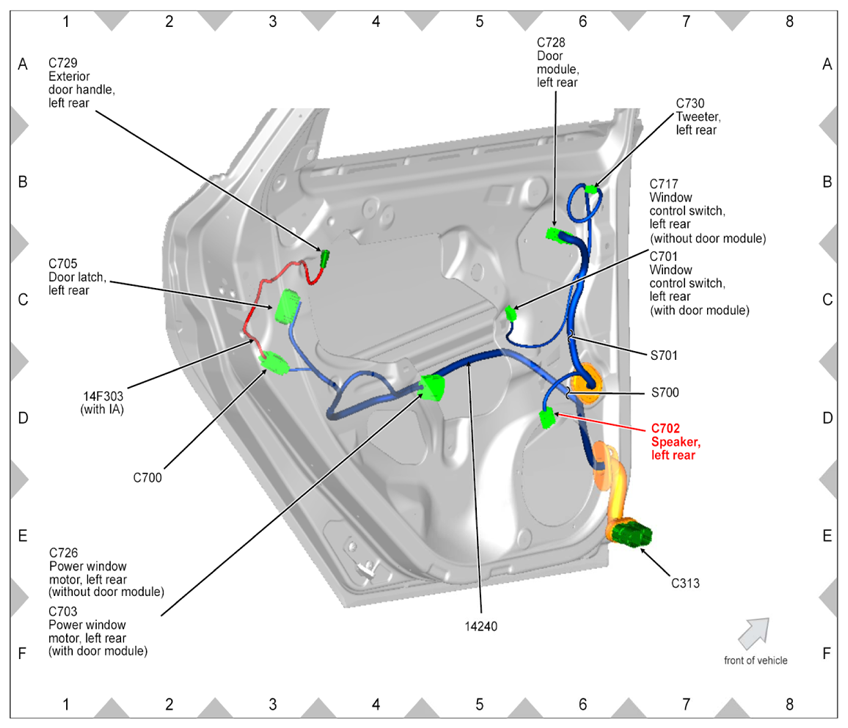

Fig 185: C702 Speaker, Left Rear Location - Rear Door, Center Front

Courtesy of FORD MOTOR CO.

Fig 186: C703 Power Window Motor, Left Rear (With Door Module) Location - Rear Door, Center

Courtesy of FORD MOTOR CO.

Fig 187: C705 Door Latch Left Rear Location - Rear Door, Rear

Courtesy of FORD MOTOR CO.

Fig 188: C717 Window Control Switch, Left Rear (Without Door Module) Location - Rear Door, Center

Courtesy of FORD MOTOR CO.

Fig 189: C726 Power Window Motor, Left Rear (Without Door Module) Location - Rear Door, Center

Courtesy of FORD MOTOR CO.

Fig 190: C726 Door Module, Left Rear Location - Rear Door, Top Front

Courtesy of FORD MOTOR CO.

Fig 191: C729 Exterior Door Handle, Left Rear Location - Rear Door, Rear

Courtesy of FORD MOTOR CO.

Fig 192: C730 Tweeter, Left Rear Location - Rear Door, Top Front

Courtesy of FORD MOTOR CO.

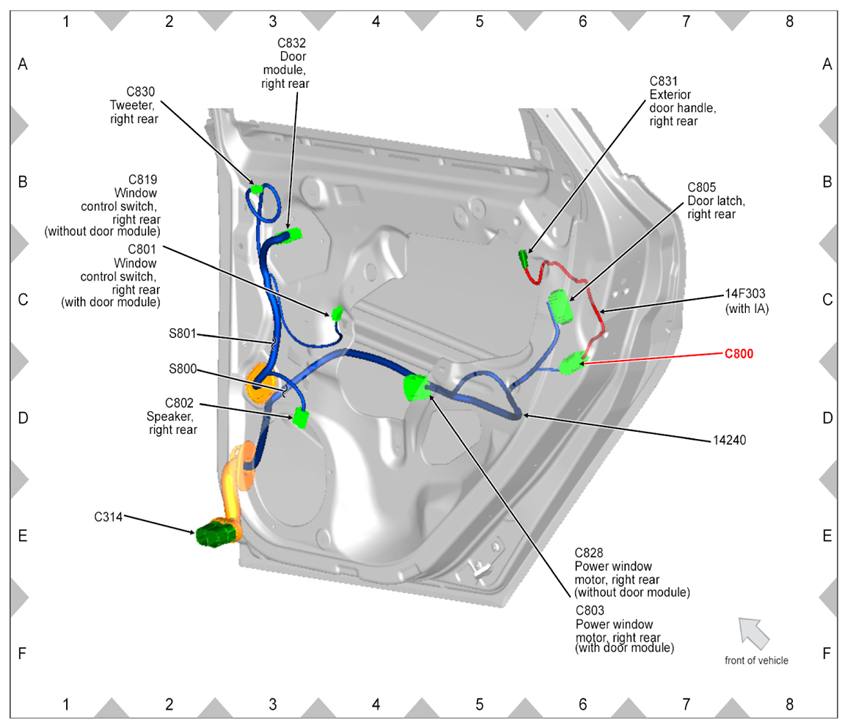

Fig 193: C800 Location - Rear Door, Rear

Courtesy of FORD MOTOR CO.

Fig 194: C801 Window Control Switch, Right Rear (With Door Module) Location - Rear Door, Center

Courtesy of FORD MOTOR CO.

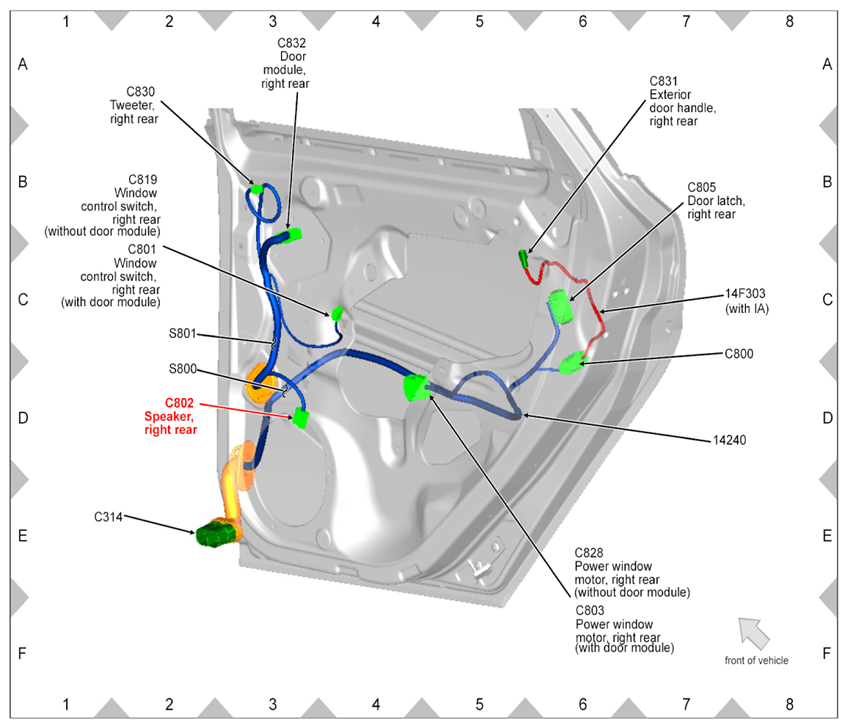

Fig 195: C802 Speaker, Right Rear Location - Rear Door, Center Front

Courtesy of FORD MOTOR CO.

Fig 196: C803 Power Window (Motor Right Rear (With Door Module) Location - Rear Door, Center

Courtesy of FORD MOTOR CO.

Fig 197: C805 Door Latch, Right Rear Location - Rear Door, Rear

Courtesy of FORD MOTOR CO.

Fig 198: C819 Window Control Switch, Right Rear Location - Rear Door, Center

Courtesy of FORD MOTOR CO.

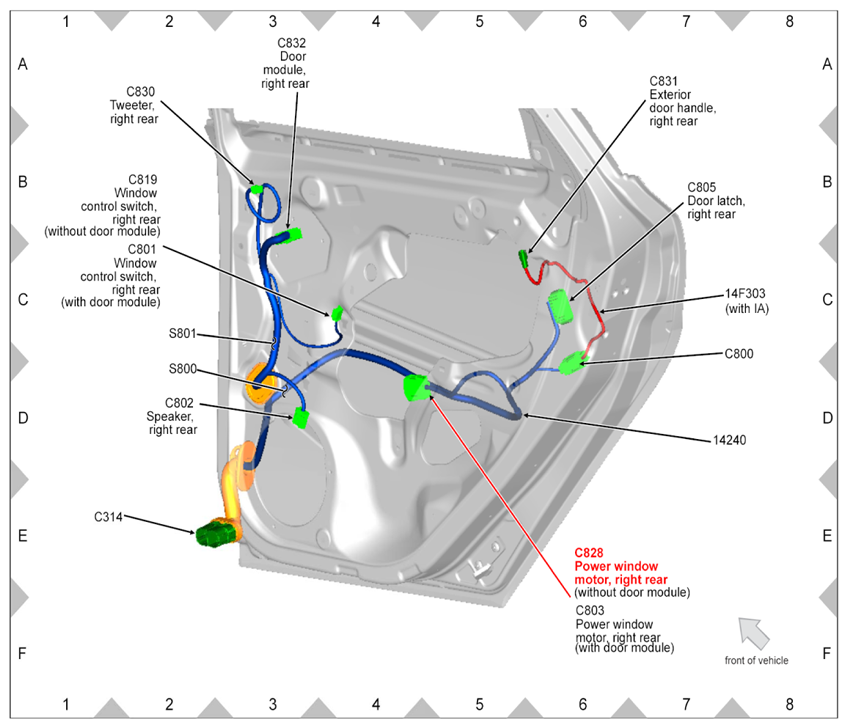

Fig 199: C828 Power Window Motor, Right Rear Location - Rear Door, Center

Courtesy of FORD MOTOR CO.

Fig 200: C830 Tweeter, Right Rear Location - Rear Door, Top Front

Courtesy of FORD MOTOR CO.

Fig 201: C831 Exterior Door Handle, Right Rear Location - Rear Door, Rear

Courtesy of FORD MOTOR CO.

Fig 202: C832 Door Module, Right Rear Location - Rear Door, Top Front

Courtesy of FORD MOTOR CO.

Fig 203: C901 Dome Lamp, Rear Location - In Headliner, Rear

Courtesy of FORD MOTOR CO.

Fig 204: C903 Interior/Map Lamps Assembly, Right Front Location - In Headliner, RH Side

Courtesy of FORD MOTOR CO.

Fig 205: C904 High Mounted Stoplamp Location - (5 Door) Vehicle Rear, Top Center Liftgate

Courtesy of FORD MOTOR CO.

Fig 206: C906 Vanity Mirror Lamp, Right Location - In Headliner, RH Front

Courtesy of FORD MOTOR CO.

Fig 207: C907 Vanity Mirror Lamp, Left Location - In Headliner, LH Front

Courtesy of FORD MOTOR CO.

Fig 208: C908 Interior/Map Lamps Assembly, Left Front Location - In Headliner, LH Side

Courtesy of FORD MOTOR CO.

Fig 209: C909 Compass Module Location - In Headliner, Rear

Courtesy of FORD MOTOR CO.

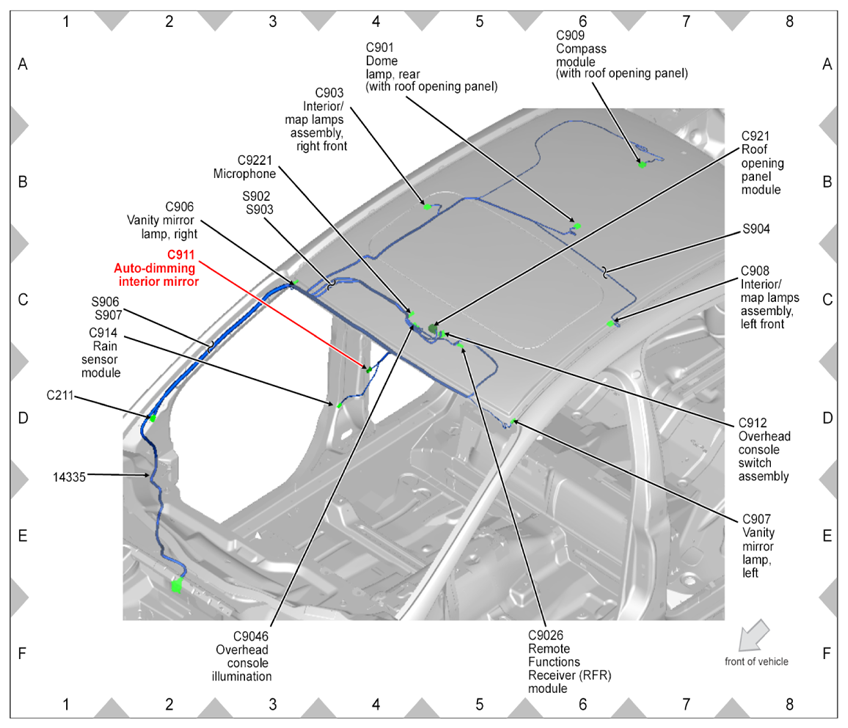

Fig 210: C911 Auto-Dimming Interior Mirror Location - In Headliner

Courtesy of FORD MOTOR CO.

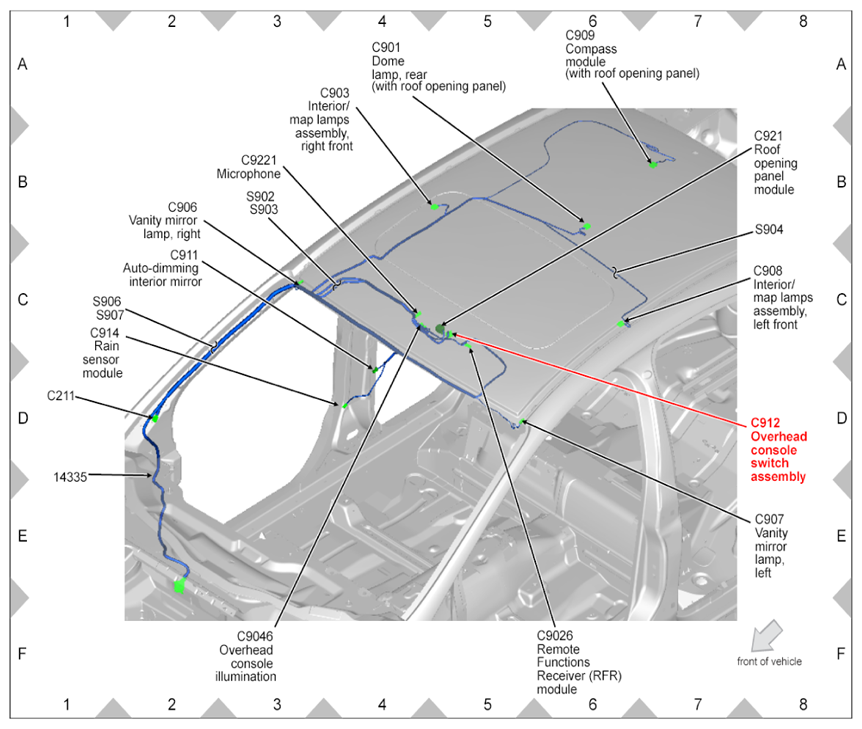

Fig 211: C912 Overhead Console Switch Assembly Location - In Headliner

Courtesy of FORD MOTOR CO.

Fig 212: C913 Location - (5 Door) Vehicle Rear, Headliner

Courtesy of FORD MOTOR CO.

Fig 213: C914 Rain Sensor Module Location - In Headliner

Courtesy of FORD MOTOR CO.

Fig 214: C919 Location - (5 Door) Vehicle Rear, Liftgate

Courtesy of FORD MOTOR CO.

Fig 215: C921 Roof Opening Panel Module Location - In Headliner

Courtesy of FORD MOTOR CO.

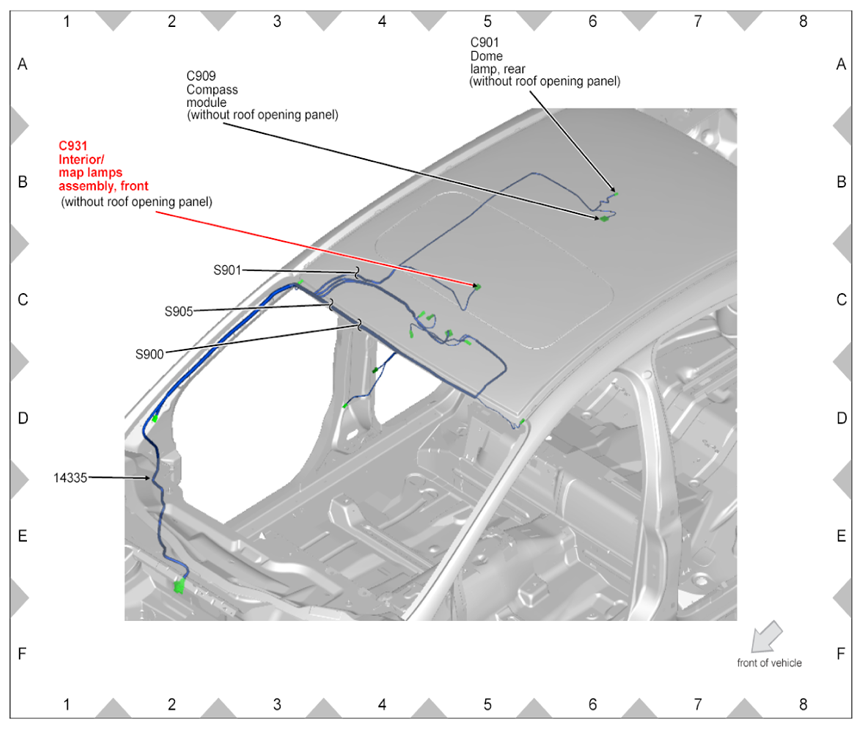

Fig 216: C931 Interior/ Map Lamps Assembly, Front Location - In Headliner

Courtesy of FORD MOTOR CO.

Fig 217: C1021 Headlamp Assembly, Left Location - Engine Compartment LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 218: C1035A Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 219: C1035B Battery Junction Box (BJB) Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 220: C1035C Location - Engine Compartment LH Side, In BJB

Courtesy of FORD MOTOR CO.

Fig 221: C1041 Headlamp Assembly, Right Location - Engine Compartment RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 222: C1048 Engine Cooling Fan Motor Location - Engine Compartment, Front

Courtesy of FORD MOTOR CO.

Fig 223: C1064 Engine Coolant Temperature (ECT) Sensor Location - Engine Compartment, LH Rear Of Engine

Courtesy of FORD MOTOR CO.

Fig 224: C1100A Current Battery Junction Box Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 225: C1100B Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 226: C1260 A/C Pressure Transducer Location - Engine Compartment, Side

Courtesy of FORD MOTOR CO.

Fig 227: C1360 Fuel Rail Pressure (FRP) Sensor Location - Top Of Engine, RH Side

Courtesy of FORD MOTOR CO.

Fig 228: C1366 Camshaft Position (CMP) Sensor 11 Location - Top LH Side Of Side Engine, Front

Courtesy of FORD MOTOR CO.

Fig 229: C1367 Camshaft Position (CMP) Sensor 12 Location - Engine Compartment, LH Rear Of Engine

Courtesy of FORD MOTOR CO.

Fig 230: C1428 Parking Aid Sensor Front, Outer Left Location - Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 231: C1429 Parking Aid Sensor Front, Inner Left Location - Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 232: C1430 Parking Aid Sensor Front, Inner Right Location - Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 233: C1431 Parking Aid Sensor Front, Outer Right Location - Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 234: C1449 Electronic Throttle Control (ETC) Location - LH Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 235: C1451 Variable Camshaft Timing (VCT) Solenoid 11 Location - Top RH Side Of Engine, Front

Courtesy of FORD MOTOR CO.

Fig 236: C1452 Variable Camshaft Timing (VCT) Solenoid 12 Location - Top RH Side Of Engine, Rear

Courtesy of FORD MOTOR CO.

Fig 237: C1463A Location - Engine Compartment RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 238: C1463B Power Steering Control Module (PSCM) Location - Engine Compartment RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 239: C1465 Impact Severity Sensor, LH Front Location - Engine Compartment LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 240: C1466 Impact Severity Sensor, RH Front Location - Engine Compartment RH Side, Front

Courtesy of FORD MOTOR CO.

Fig 241: C1500 Diode Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 242: C1571 Universal Heated Oxygen Sensor (HO2S) #11 Location - Engine, Top Left Rear

Courtesy of FORD MOTOR CO.

Fig 243: C1589 Fuel Injection Pump Location - Top LH Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 244: C1607 Active Park Assist Sensor, Left Location - Front Of Vehicle, LH Side

Courtesy of FORD MOTOR CO.

Fig 245: C1608 Active Park Assist Sensor, Right Location - Front Of Vehicle, RH Side

Courtesy of FORD MOTOR CO.

Fig 246: C1614 Knock Sensor 1 (KS 1) Location - Engine, Lower RH Side

Courtesy of FORD MOTOR CO.

Fig 247: C1615 Knock Sensor 2 (KS 2) Location - Engine, Lower RH Side

Courtesy of FORD MOTOR CO.

Fig 248: C1617A C1617B C1617C C1617D C1617E C1617F C1617G C1617J C1617K High Current Battery Junction Box Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 249: C1617A C1617B C1617C C1617D C1617E C1617F C1617G C1617J C1617K High Current Battery Junction Box Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 250: C1617A C1617B C1617C C1617D C1617E C1617F C1617G C1617J C1617K High Current Battery Junction Box Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 251: C1617A C1617B C1617C C1617D C1617E C1617F C1617G C1617J C1617K High Current Battery Junction Box Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 252: C1617A C1617B C1617C C1617D C1617E C1617F C1617G C1617J C1617K High Current Battery Junction Box Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 253: C1617A C1617B C1617C C1617D C1617E C1617F C1617G C1617J C1617K High Current Battery Junction Box Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 254: C2280E Body Control Module Location - Behind Dash, Passenger Side

Courtesy of FORD MOTOR CO.

Fig 255: C1617A C1617B C1617C C1617D C1617E C1617F C1617G C1617J C1617K High Current Battery Junction Box (BJB) Location - Engine Compartment LH Side

Courtesy of FORD MOTOR CO.

Fig 256: C1633 Clutch Motor 1 Location - (Automatic Transmission) Transmission, Top

Courtesy of FORD MOTOR CO.

Fig 257: C1634 Clutch Motor 2 Location - (Automatic Transmission) Transmission, Lower Front

Courtesy of FORD MOTOR CO.

Fig 258: C1643 Fuel Pressure Sensor Location - Engine Compartment, LH Rear Of Engine

Courtesy of FORD MOTOR CO.

Fig 259: C1646 Battery Monitoring Sensor Location - Engine Compartment LH Side, Mounted On Battery Negative Terminal Assembly

Courtesy of FORD MOTOR CO.

Fig 260: C1651 Grille Shutter Actuator Location - Engine Compartment LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 261: C1655 Windshield Wiper Motor, Left Front Location - Engine Compartment LH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 262: C1655 Windshield Wiper Motor, Left Front Location - Engine Compartment RH Side, Rear

Courtesy of FORD MOTOR CO.

Fig 263: C1750A Location - (Automatic Transmission) Transmission, Near LH Fender

Courtesy of FORD MOTOR CO.

Fig 264: C1750B Transmission Control Module (TCM) Location - (Automatic Transmission) Transmission, Near LH Fender

Courtesy of FORD MOTOR CO.

Fig 265: C2004 Blower Motor Location - Behind Dash Panel

Courtesy of FORD MOTOR CO.

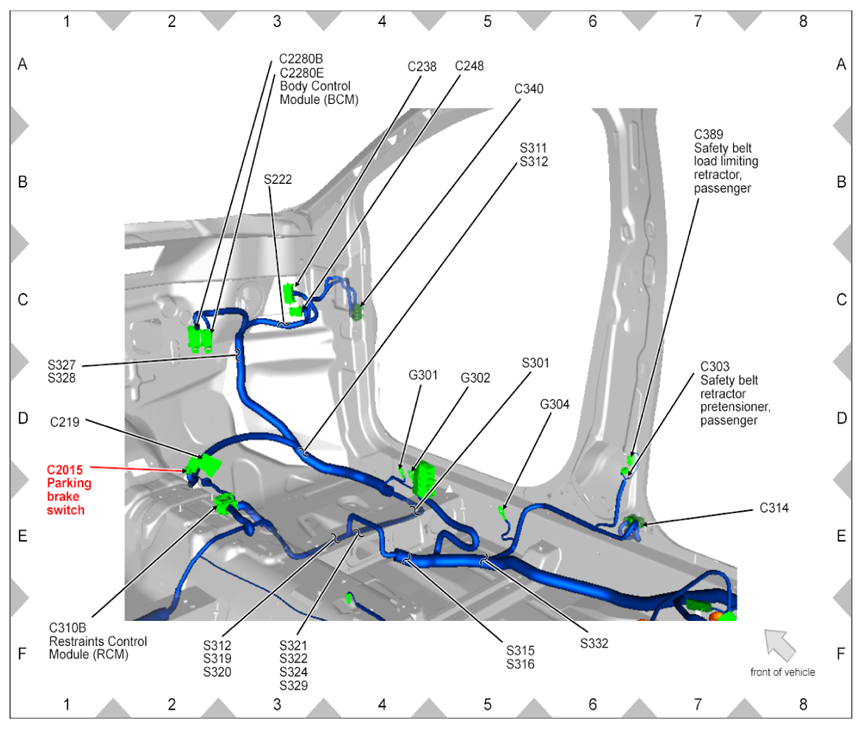

Fig 266: C2015 Parking Brake Switch Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 267: C2035 Active Park Assist Switch Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 268: C2040 Accelerator Pedal Position (APP) Sensor Location - Under Dash, LH Side

Courtesy of FORD MOTOR CO.

Fig 269: C2056 Footwell Lamp, Left Front Location - Instrument Panel, LH Side Bottom

Courtesy of FORD MOTOR CO.

Fig 270: C2057 Footwell Lamp, Right Front Location - Instrument Panel, RH Side Bottom

Courtesy of FORD MOTOR CO.

Fig 271: C2086 Passive Start Antenna, Front Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 272: C2091 Temperature Blend Door Actuator, Driver Location - Behind Dash Panel, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 273: C2092 Temperature Blend Door Actuator, Passenger Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 274: C2123 Front Control/Display Interface Module (FCDIM) Location - Behind Dash Panel, Top Center

Courtesy of FORD MOTOR CO.

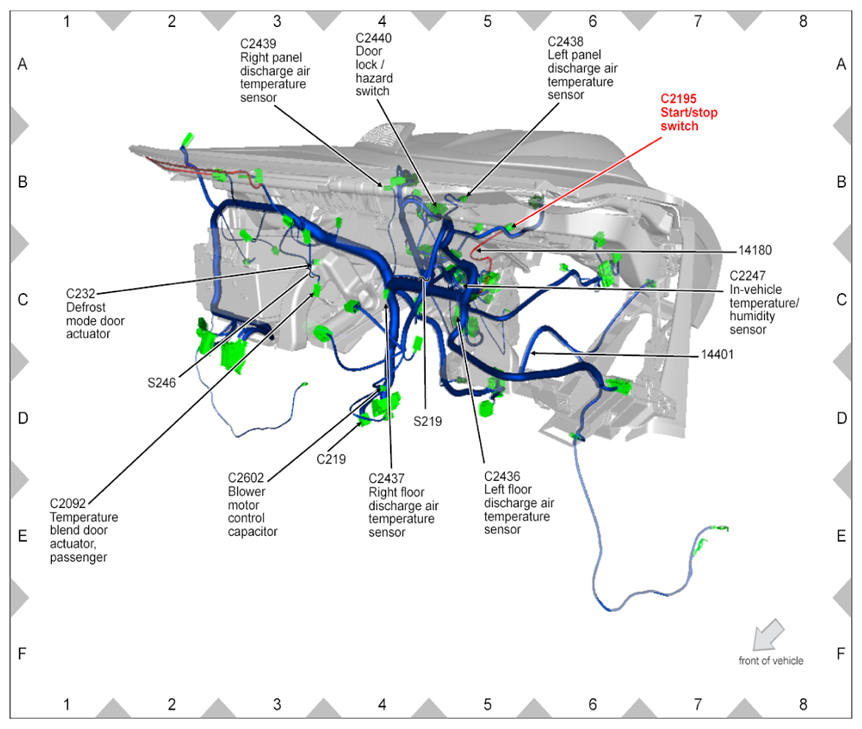

Fig 275: C2195 Start/Stop Switch Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 276: C2247 In-Vehicle Temperature/Humidity Sensor Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 277: C2280A Location - Behind Dash Passenger Side

Courtesy of FORD MOTOR CO.

Fig 278: C2280B Location - Behind Dash, Passenger Side

Courtesy of FORD MOTOR CO.

Fig 279: C2280C Location - Behind Dash Passenger Side

Courtesy of FORD MOTOR CO.

Fig 280: C2280D Location - Behind Dash Passenger Side

Courtesy of FORD MOTOR CO.

Fig 281: C2280H Body Control Module (BCM) Location - Behind Dash Passenger Side

Courtesy of FORD MOTOR CO.

Fig 282: C2280F Location - Behind Dash Passenger Side

Courtesy of FORD MOTOR CO.

Fig 283: C2280G Location - Behind Dash Passenger Side

Courtesy of FORD MOTOR CO.

Fig 284: C2357A C2357B HVAC Module, EMTC Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 285: C2351 Passenger Air Bag Canister Vent Location - Behind RH Side Of Dash Panel

Courtesy of FORD MOTOR CO.

Fig 286: C2356 Speaker, Instrument Panel Location - Behind Dash Panel, Center Top

Courtesy of FORD MOTOR CO.

Fig 287: C2357A C2357B HVAC Module, EMTC Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 288: 96 2398 Global Positioning System Module (GPSM) Location - Behind RH Side Of Dash Panel

Courtesy of FORD MOTOR CO.

Fig 289: C2366 Steering Wheel Switch, LH Lower Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 290: C2367 Steering Wheel Switch, RH Lower Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 291: C2381 Temperature Blend Door Actuator Location - Behind Dash Panel, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 292: C2383 Accessory Protocol Interface Module (APIM) Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 293: C2402 Front Controls Interface Module (FCIM) Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 294: C2401 Audio Input Jack Location - Behind RH Side Of Dash Panel

Courtesy of FORD MOTOR CO.

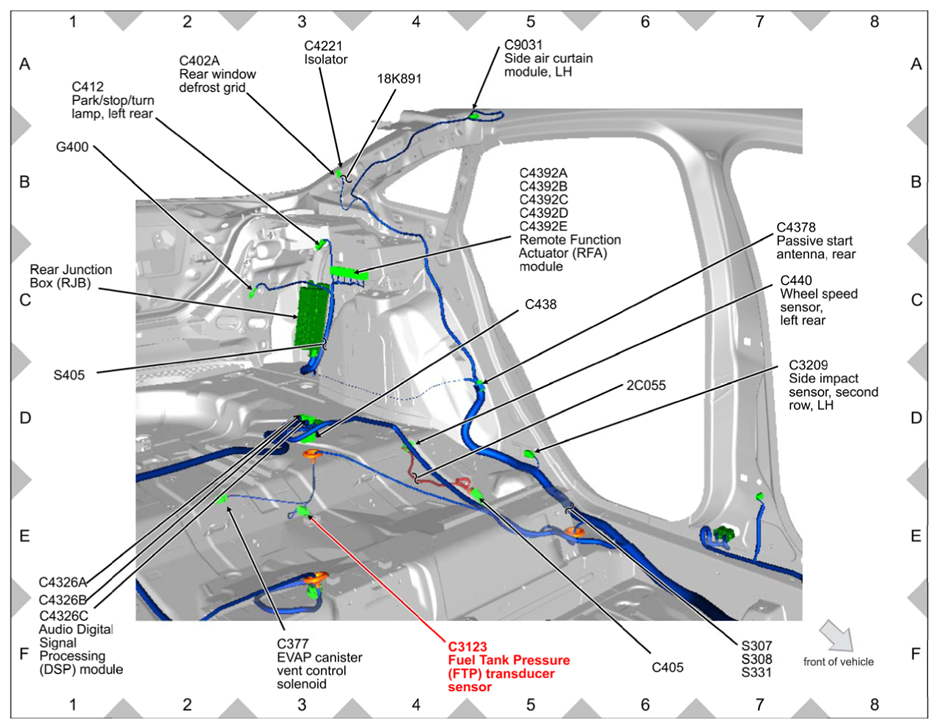

Fig 295: C3123 Fuel Tank Pressure (FTP) Transducer Sensor Location - (4 Door) On Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 296: C2436 Left Floor Discharge Air Temperature Sensor Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 297: C2437 Right Floor Discharge Air Temperature Sensor Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 298: C2438 Left Panel Discharge Air Temperature Sensor Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 299: C2439 Right Panel Discharge Air Temperature Sensor Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 300: C2440 Door Lock/Hazard Switch Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 301: C2448 Defrost/Panel/Floor Mode Door Actuator Location - Behind Dash Panel, Left Of Center

Courtesy of FORD MOTOR CO.

Fig 302: C2602 Blower Motor Control Capacitor Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 303: C2998 Steering Wheel Switch, LH Upper Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 304: C2999 Steering Wheel Switch, RH Upper Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 305: C3007A Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 306: C3007B Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 307: C3007C Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 308: C3007D Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 309: C3007F Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 310: C3007H Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 311: C3007J Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 312: C3047 Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 313: C3049 Seat Backrest Heater, Left Front Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 314: C3050 Seat Backrest Heater, Right Front Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 315: C3123 Fuel Tank Pressure (FTP) Transducer Sensor Location - (5 Door) On Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 316: C3127 Fuel Pump (FP) Assembly Location - (4 Door) On Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 317: C3127 Fuel Pump (FP) Assembly Location - (5 Door) On Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 318: C3159 Occupant Classification System Module (OCSM) Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 319: C3238 Safety Belt Tension Sensor (BTS), Passenger Location - (4 Door) Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 320: C3209 Side Impact Sensor, Second Row, LH Location - (4 Door) Left C-Pillar

Courtesy of FORD MOTOR CO.

Fig 321: C3209 Side Impact Sensor, Second Row, LH Location - (5 Door) Left C-Pillar

Courtesy of FORD MOTOR CO.

Fig 322: C3211 Side Impact Sensor, Second Row, RH Location - (4 Door) Passenger C-Pillar

Courtesy of FORD MOTOR CO.

Fig 323: C3211 Side Impact Sensor, Second Row, RH Location - (5 Door) Passenger C-Pillar

Courtesy of FORD MOTOR CO.

Fig 324: C3238 Safety Belt Tension Sensor (BTS), Passenger Location - (5 Door) Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 325: C3239 Fuel Pump Control Module (FPCM) Location - (4 Door) On Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 326: C3239 Fuel Pump Control Module (FPCM) Location - (5 Door) On Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 327: C4014A C4014B C4014C Parking Aid Module (PAM) Location - (4 Door) Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

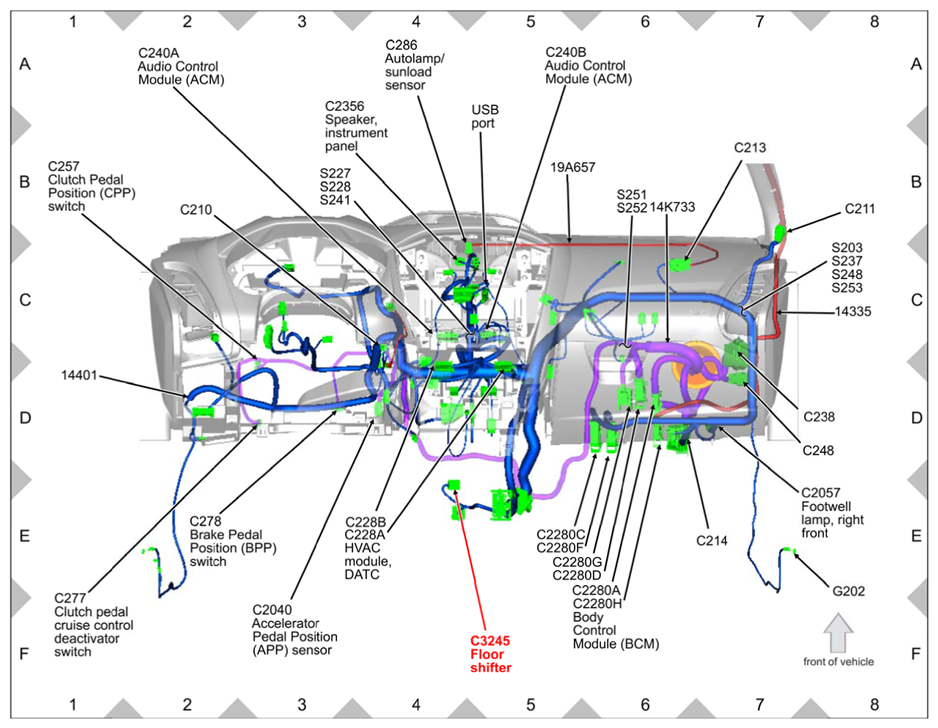

Fig 328: C3245 Floor Shifter Location - Center Console

Courtesy of FORD MOTOR CO.

Fig 329: C3288 Seat Track Position Sensor, Right Front Location - Passenger Seat, Front

Courtesy of FORD MOTOR CO.

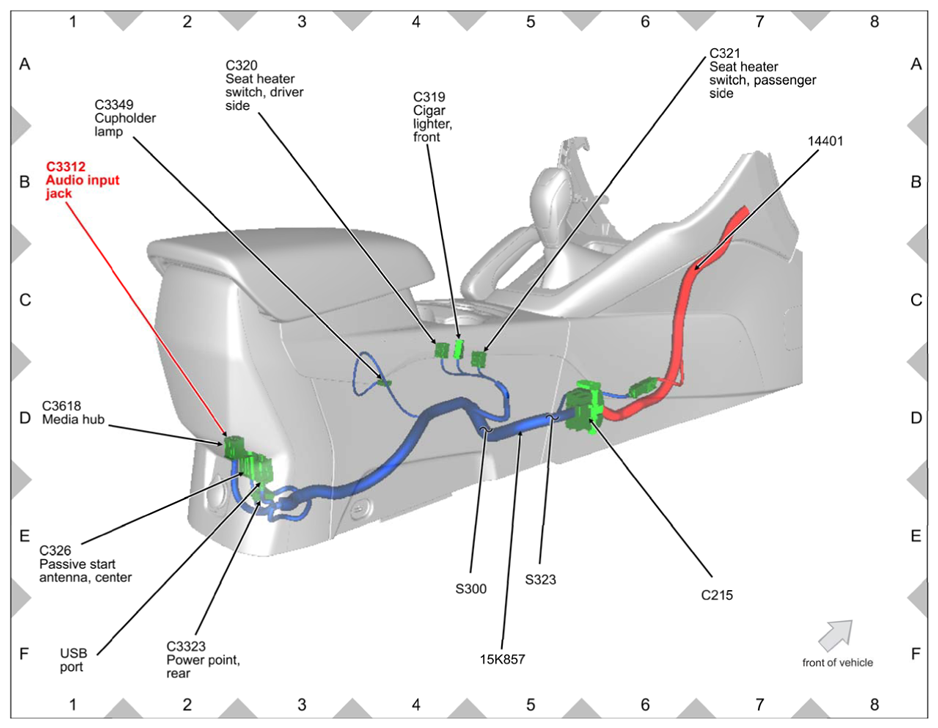

Fig 330: C3312 Audio Input Jack Location - In Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 331: C3321 Side Air Bag Module, Left Front Location - Driver Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 332: C3223 Power Point, Rear Location - In Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 333: C3329 Side Air Bag Module, Right Front Location - Passenger Seat, RH Side

Courtesy of FORD MOTOR CO.

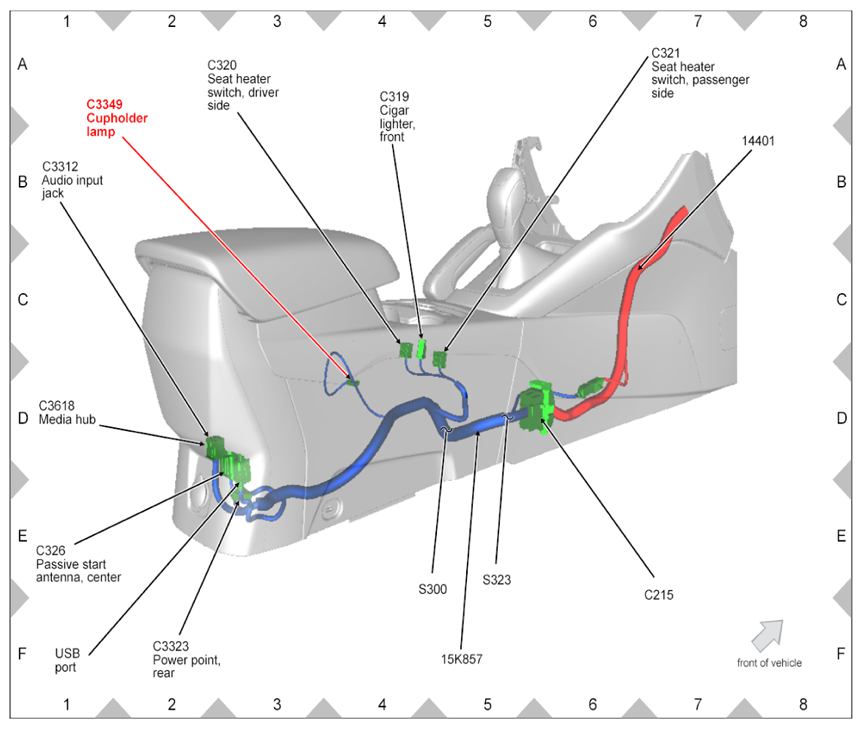

Fig 334: C3349 Cupholder Lamp Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 335: C3617 Floor Shifter Illumination Location - On Floor Shifter

Courtesy of FORD MOTOR CO.

Fig 336: C3618 Media Hub Location - In Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 337: C3651 Fuel Pump Control Capacitor Location - (4 Door) Near Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 338: C3651 Fuel Pump Control Capacitor Location - (5 Door) Near Fuel Tank

Courtesy of FORD MOTOR CO.

Fig 339: C4009 Parking Air Sensor Rear, Outer Left Location - (4 Door) Vehicle Rear, LH Side

Courtesy of FORD MOTOR CO.

Fig 340: C4009 Parking Aid Sensor Rear, Outer Left Location - (5 Door) Vehicle Rear, LH Side

Courtesy of FORD MOTOR CO.

Fig 341: C4011 Parking Aid Sensor Rear, Outer Right Location - (4 Door) Vehicle Rear, RH Side

Courtesy of FORD MOTOR CO.

Fig 342: C4011 Parking Aid Sensor Rear, Outer Right Location - (5 Door) Vehicle Rear, RH Side

Courtesy of FORD MOTOR CO.

Fig 343: C4014A C4014B C4014C Parking Aid Module (PAM) Location - (5 Door) Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 344: C4014A C4014B C4014C Parking Aid Module (PAM) Location - (4 Door) Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 345: C4014A C4014B C4014C Parking Aid Module (PAM) Location - (5 Door) Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 346: C4014A C4014B C4014C Parking Aid Module (PAM) Location - (4 Door) Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 347: C4014A C4014B C4014C Parking Aid Module (PAM) Location - (5 Door) Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 348: C4082 Intelligent Access (IA) Antenna Location - (4 Door) Vehicle Rear, Center

Courtesy of FORD MOTOR CO.

Fig 349: C4082 Intelligent Access (IA) Antenna Location - (5 Door) Vehicle Rear, Center

Courtesy of FORD MOTOR CO.

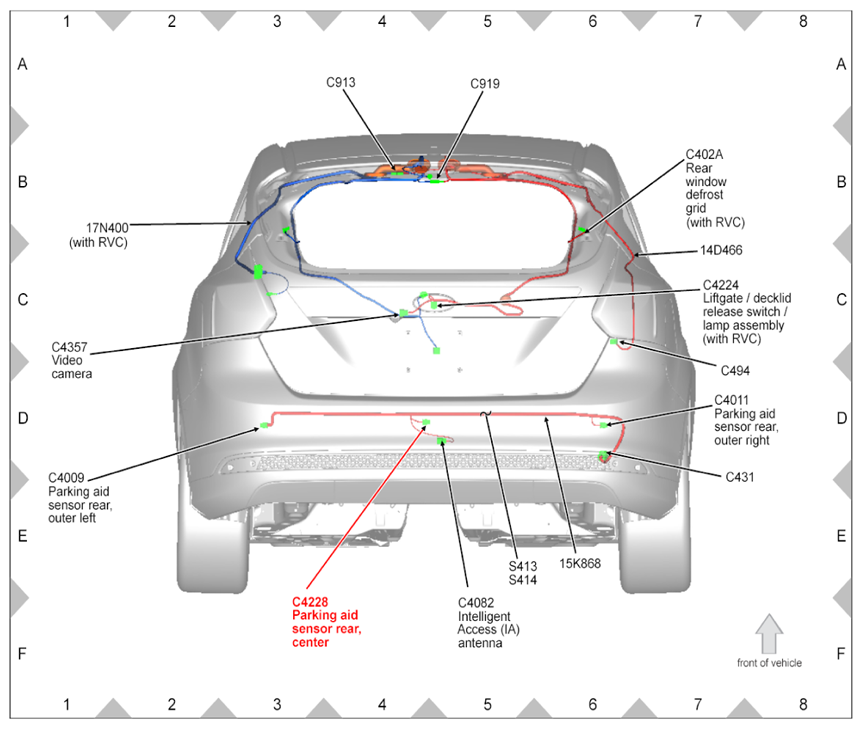

Fig 350: C4228 Parking Aid Sensor Rear, Center Location - (4 Door) Vehicle Rear, Center

Courtesy of FORD MOTOR CO.

Fig 351: C4198 Luggage Compartment Lamp, Left Location - (5 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 352: C4212 Subwoofer Location - (4 Door) Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 353: C4212 Subwoofer Location - (5 Door) Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 354: C4218 Rear Window Wiper Motor Location - (5 Door) Vehicle Rear, Center

Courtesy of FORD MOTOR CO.

Fig 355: C4221 Isolator Location - (4 Door) Left Side Of Rear Window

Courtesy of FORD MOTOR CO.

Fig 356: C4223 Liftgate / Decklid Latch Assembly Location - (4 Door) Vehicle Rear, Center

Courtesy of FORD MOTOR CO.

Fig 357: C4223 Liftgate / Decklid Latch Assembly Location - (5 Door) Vehicle Rear, Center

Courtesy of FORD MOTOR CO.

Fig 358: C4224 Liftgate / Decklid Release Switch / Lamp Assembly Location - (4 Door) Vehicle Rear, Center

Courtesy of FORD MOTOR CO.

Fig 359: C4224 Liftgate / Decklid Release Switch / Lamp Assembly Location - (5 Door) Vehicle Rear, Center

Courtesy of FORD MOTOR CO.

Fig 360: C4228 Parking Aid Sensor Rear, Center Location - (5 Door) Vehicle Rear, Center

Courtesy of FORD MOTOR CO.

Fig 361: C4226C Audio Digital Signal Processing (DSP) Module Location - (4 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 362: C4226A Location - (4 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 363: C4226A Location - (5 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 364: C4226B Location - (4 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 365: C4326B Location - (5 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 366: C4226C Audio Digital Signal Processing (DSP) Module Location - (5 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 367: C4357 Video Camera Location - (4 Door) Vehicle Rear

Courtesy of FORD MOTOR CO.

Fig 368: C4357 Video Camera Location - (5 Door) Vehicle Rear, Center

Courtesy of FORD MOTOR CO.

Fig 369: Vehicle Repair Location Codes Chart

Courtesy of FORD MOTOR CO.

Fig 370: C4378 Passive Start Antenna, Rear Location - (4 Door) Left C-Pillar

Courtesy of FORD MOTOR CO.

Fig 371: C4378 Passive Start Antenna, Rear Location - (5 Door) Left C-Pillar

Courtesy of FORD MOTOR CO.

Fig 372: C4292A C4292B C4292C C4292D C4292E Remote Function Actuator (RFA) Module Location - (4 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 373: C4292A C4292B C4292C C4292D C4292E Remote Function Actuator (RFA) Module Location - (5 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 374: C4292A C4292B C4292C C4292D C4292E Remote Function Actuator (RFA) Module Location - (4 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 375: C4292A C4292B C4292C C4292D C4292E Remote Function Actuator (RFA) Module Location - (5 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 376: C4292A C4292B C4292C C4292D C4292E Remote Function Actuator (RFA) Module Location - (4 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 377: C4292A C4292B C4292C C4292D C4292E Remote Function Actuator (RFA) Module Location - (5 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 378: C4292A C4292B C4292C C4292D C4292E Remote Function Actuator (RFA) Module Location - (4 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 379: C4292A C4292B C4292C C4292D C4292E Remote Function Actuator (RFA) Module Location - (5 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 380: C4292A C4292B C4292C C4292D C4292E Remote Function Actuator (RFA) Module Location - (4 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 381: C4292A C4292B C4292C C4292D C4292E Remote Function Actuator (RFA) Module Location - (5 Door) Left Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 382: C4402 Image Processing Module B (IPM-B) Location - (4 Door) Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 383: C4402 Image Processing Module B (IPM-B) Location - (5 Door) Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 384: C4403 Luggage Compartment Lamp, Right Location - (5 Door) Right Rear Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 385: C9021 Antenna Location - (4 Door) On Vehicle Roof, Rear

Courtesy of FORD MOTOR CO.

Fig 386: C9021 Antenna Location - (5 Door) On Vehicle Roof, Rear

Courtesy of FORD MOTOR CO.

Fig 387: C9026 Remote Functions Receiver (RFR) Module Location - In Headliner

Courtesy of FORD MOTOR CO.

Fig 388: C9031 Side Air Curtain Module, LH Location - (4 Door) Left C-Pillar At Roof

Courtesy of FORD MOTOR CO.

Fig 389: C9031 Side Air Curtain Module, LH Location - (5 Door) Left C-Pillar At Roof

Courtesy of FORD MOTOR CO.

Fig 390: C9032 Side Air Curtain Module, RH Location - (4 Door) Right C-Pillar At Roof

Courtesy of FORD MOTOR CO.

Fig 391: C9032 Side Air Curtain Module, RH Location - (5 Door) Right C-Pillar At Roof

Courtesy of FORD MOTOR CO.

Fig 392: C9046 Overhead Console Illumination Location - In Headliner

Courtesy of FORD MOTOR CO.

Fig 393: C9051 Antenna Location - (4 Door) On Vehicle Roof, Rear

Courtesy of FORD MOTOR CO.

Fig 394: C9221 Microphone Location - In Headliner

Courtesy of FORD MOTOR CO.
