Wiper And Washers: Notes

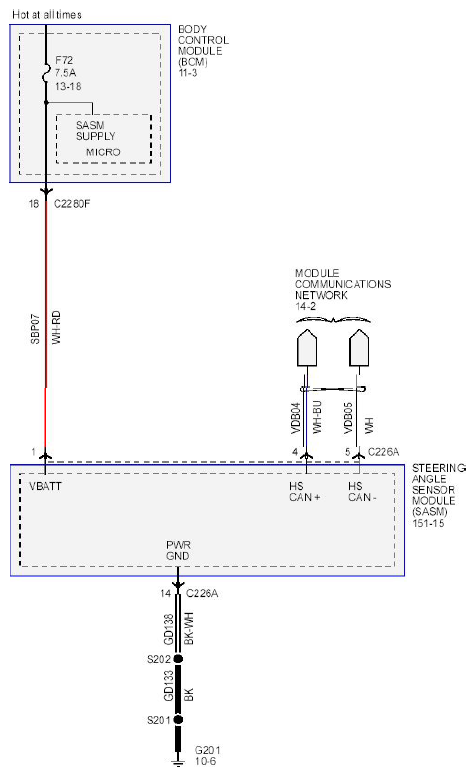

Fig 1: Wiper And Washers - Circuit Diagram (1 Of 3)
G08744340Courtesy of FORD MOTOR CO.

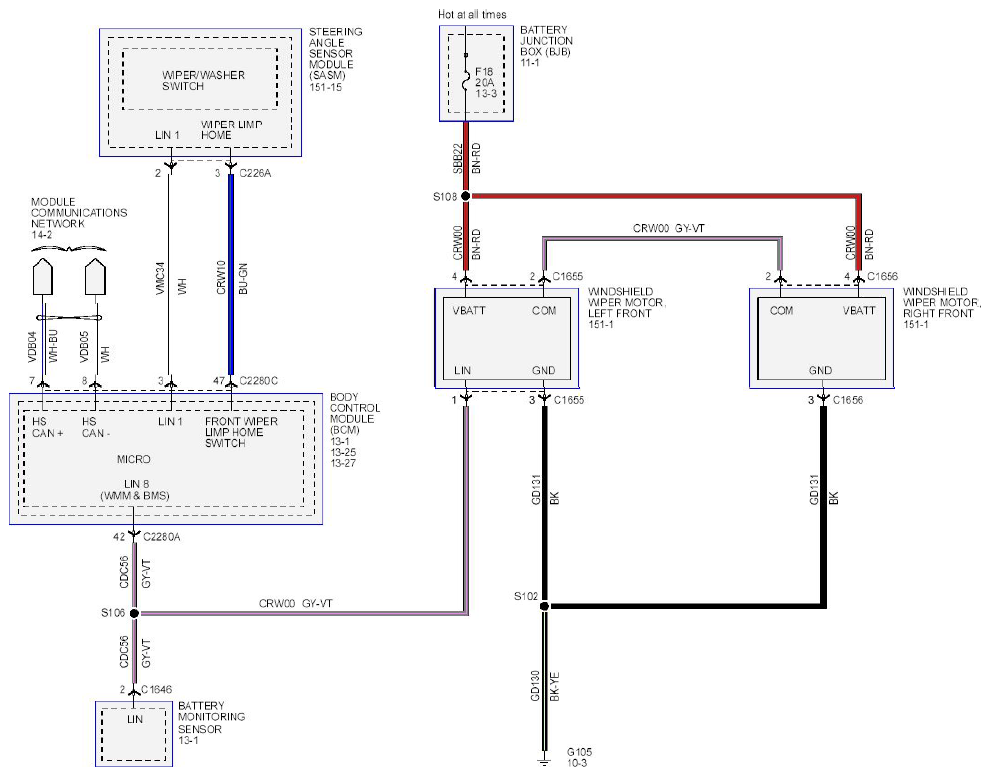

Fig 2: Wiper And Washers - Circuit Diagram (2 Of 3)
G08744341Courtesy of FORD MOTOR CO.

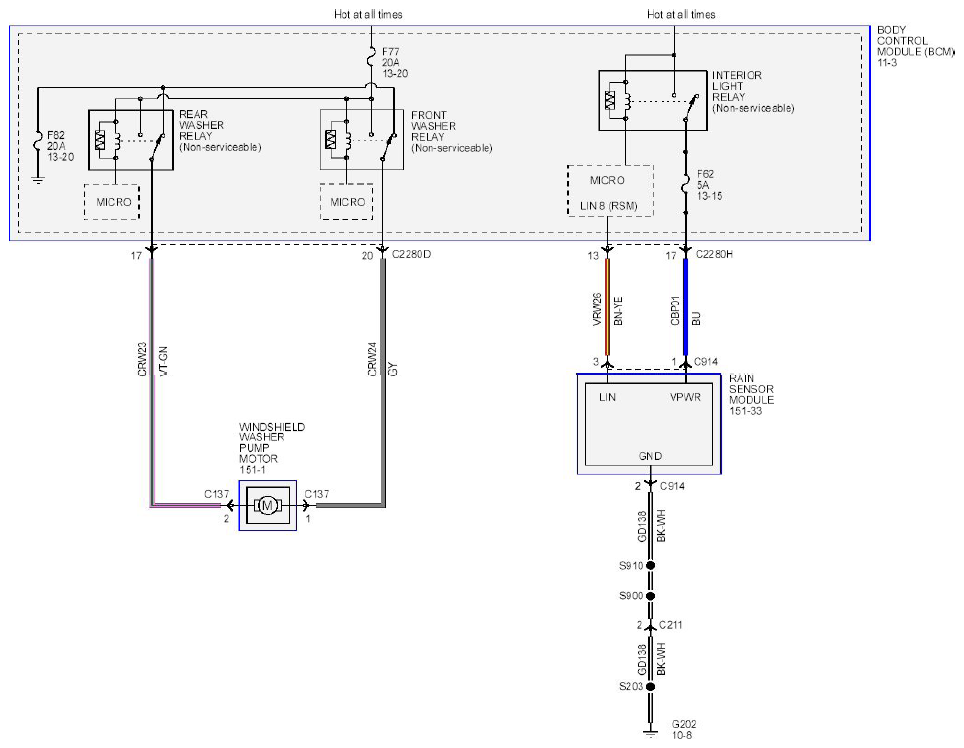

Fig 3: Wiper And Washers - Circuit Diagram (3 Of 3)
G08744343Courtesy of FORD MOTOR CO.
