Ford
>>
2013
>>
Focus Titanium, 4D Sedan, Standard Trans, Gas
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams - Except Electric
>>
Turn Signal/Stop/Hazard Lamps
>>
With Door Modules
With Door Modules

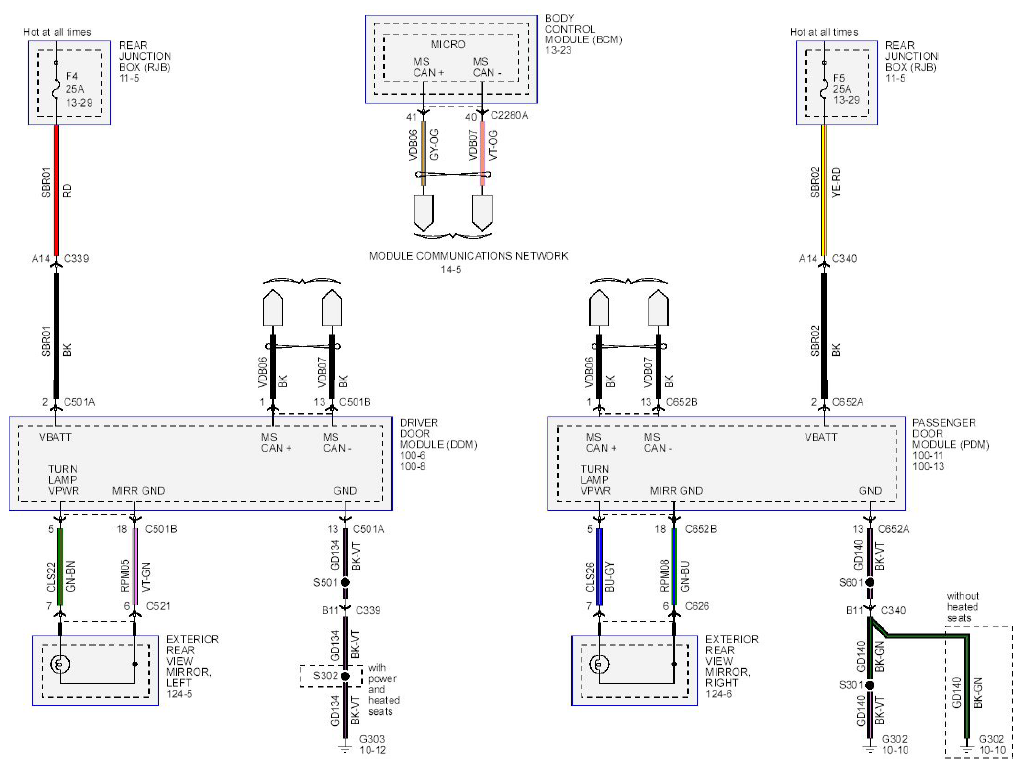

Fig 1: Turn Signal/Stop/Hazard Lamps (With Door Modules) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
