Turn Signal/Stop/Hazard Lamps: Notes

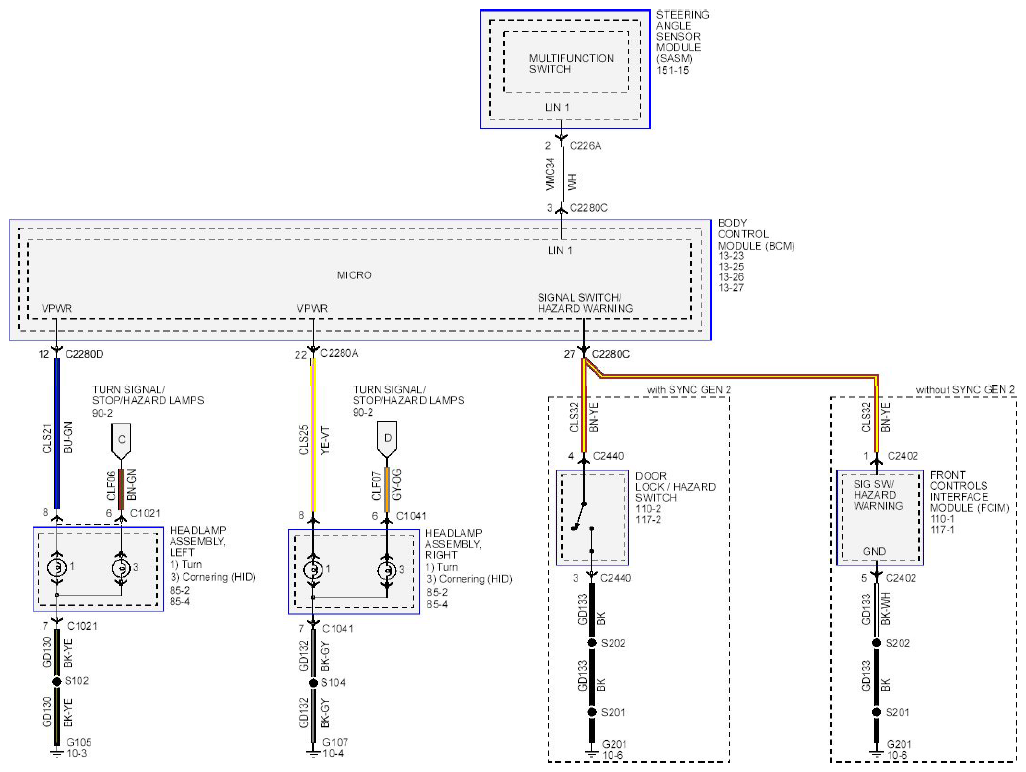

Fig 1: Turn Signal/Stop/Hazard Lamps - Circuit Diagram (1 Of 2)
G08744349Courtesy of FORD MOTOR CO.
Fig 2: Turn Signal/Stop/Hazard Lamps - Circuit Diagram (2 Of 2)
G08744352Courtesy of FORD MOTOR CO.
