Turn Signal/Stop/Hazard Lamps: Hid

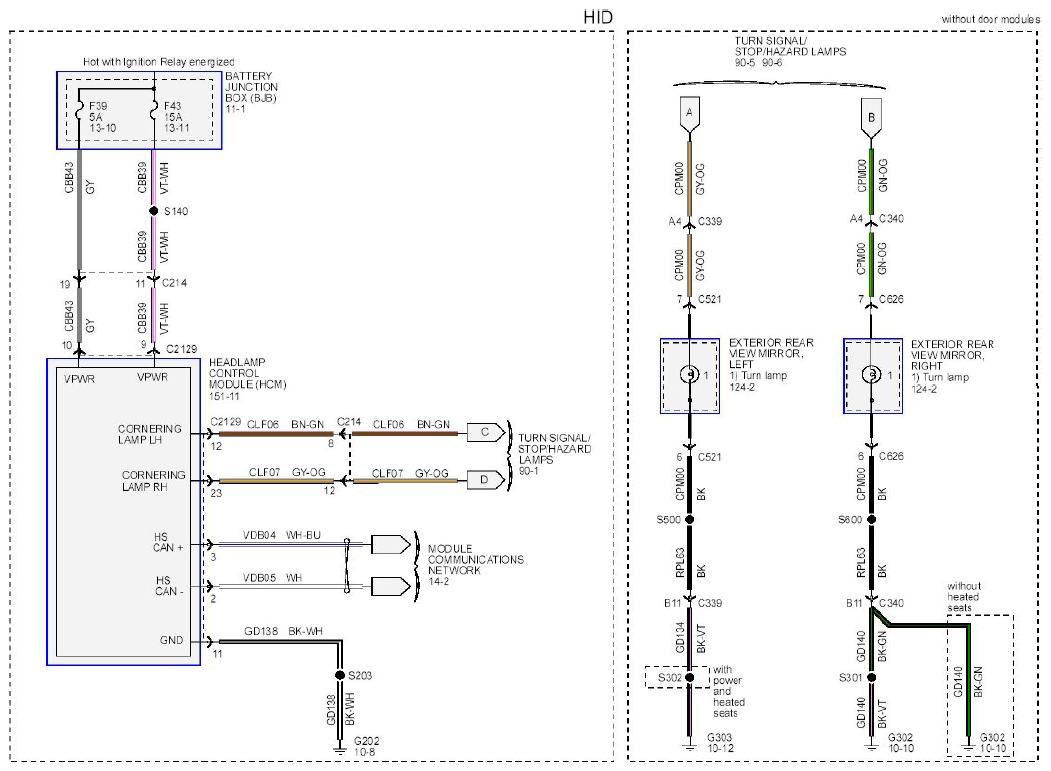

Fig 1: Turn Signal/Stop/Hazard Lamps (HID) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
