Turn Signal/Stop/Hazard Lamps
>>
5 Door
5 Door

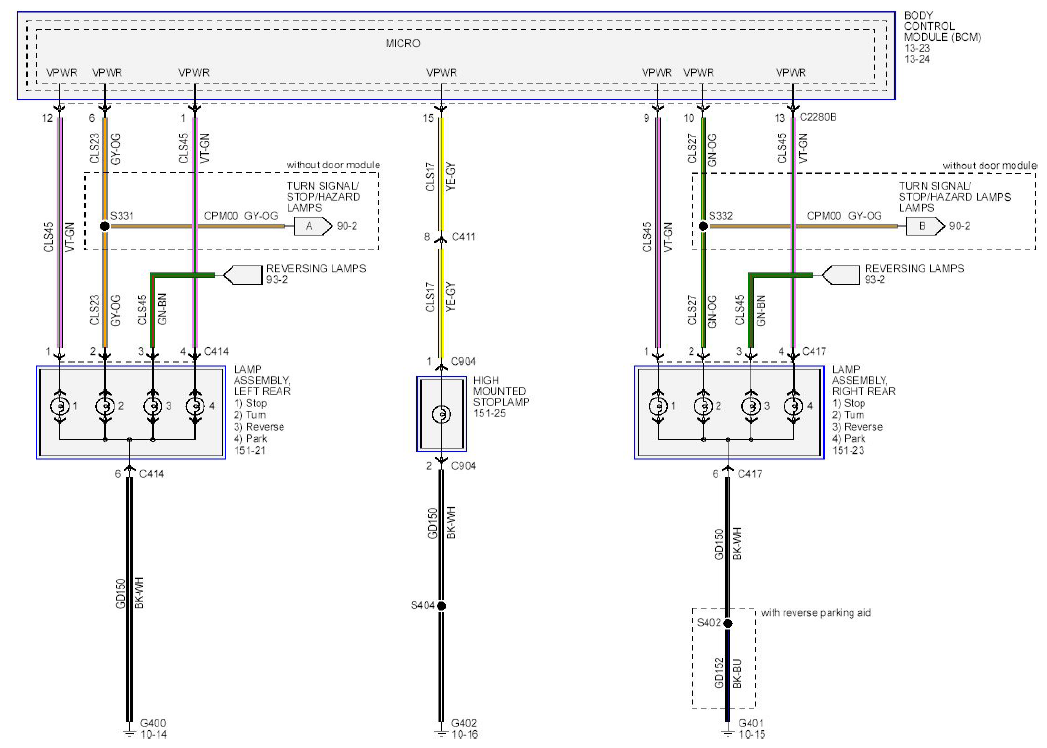

Fig 1: Turn Signal/Stop/Hazard Lamps (5 Door) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
