Turn Signal/Stop/Hazard Lamps
>>
4 Door
4 Door

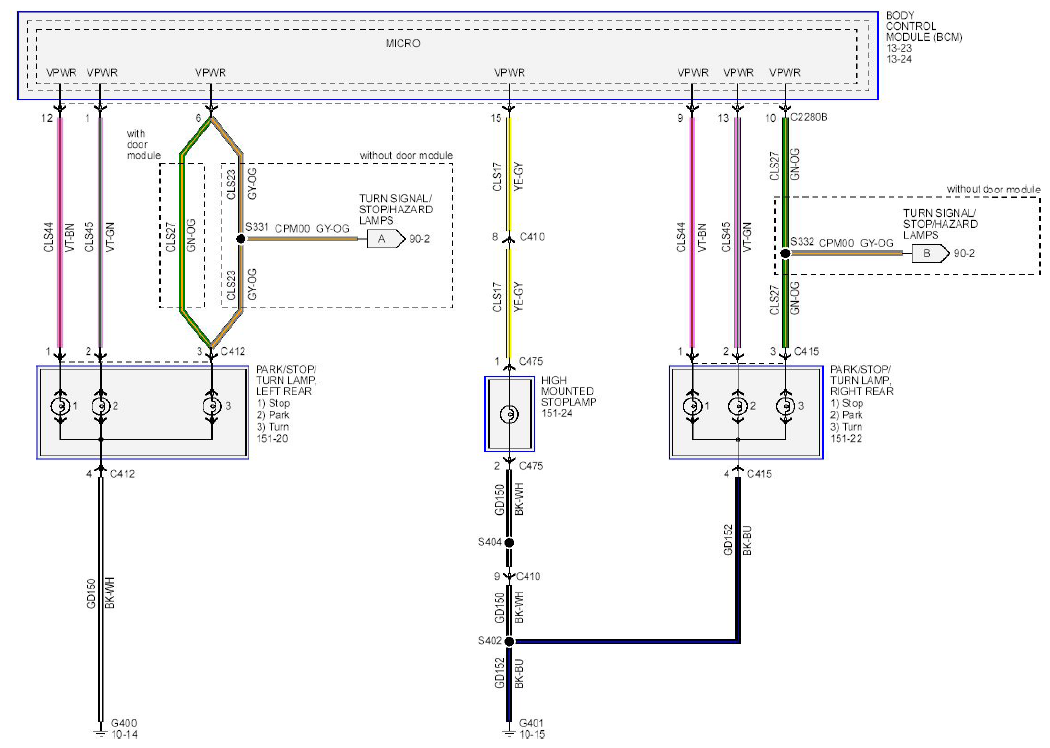

Fig 1: Turn Signal/Stop/Hazard Lamps (4 Door) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
