Focus Titanium, 4D Sedan, Standard Trans, Gas
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams - Except Electric
>>
Transmission Controls
Transmission Controls

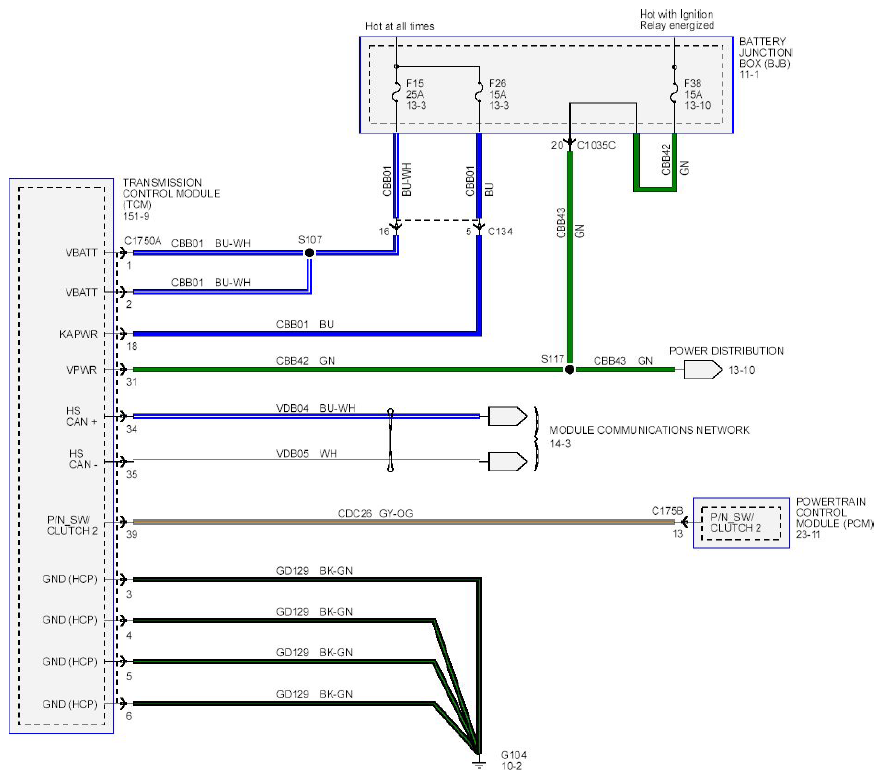

Fig 1: Transmission Controls - Circuit Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

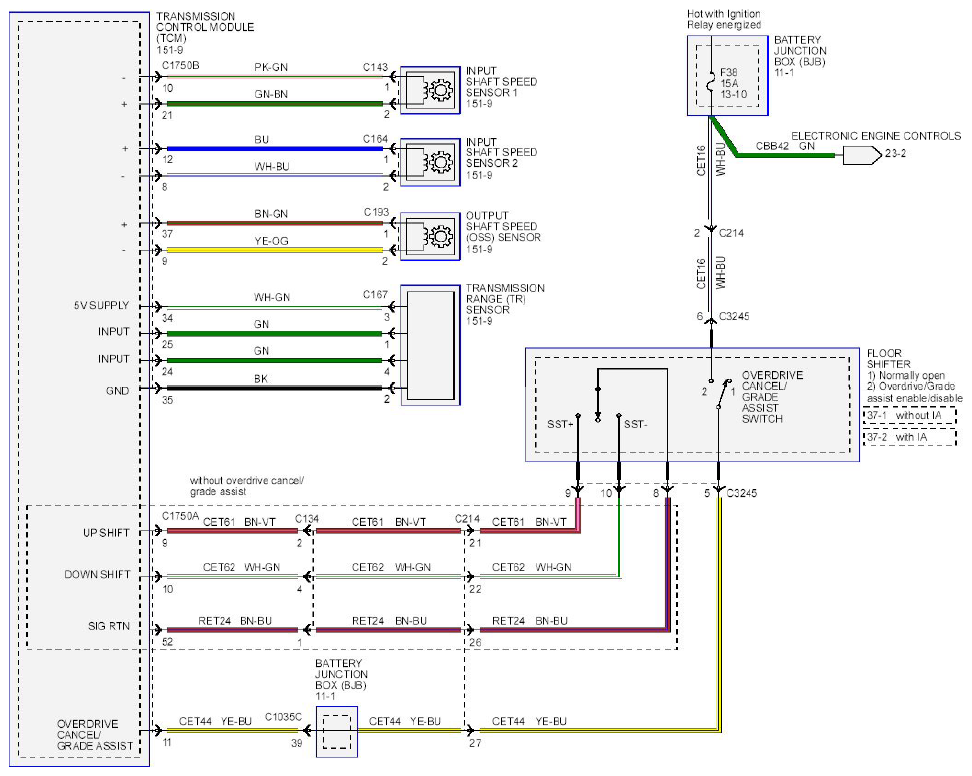

Fig 2: Transmission Controls - Circuit Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

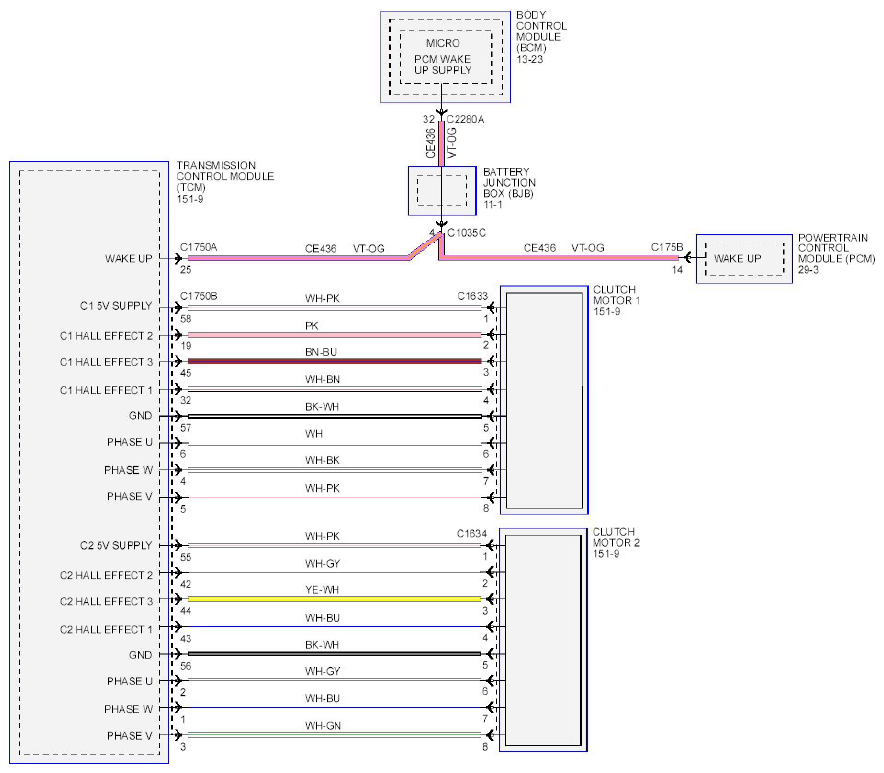

Fig 3: Transmission Controls - Circuit Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
