Supplemental Restraint System

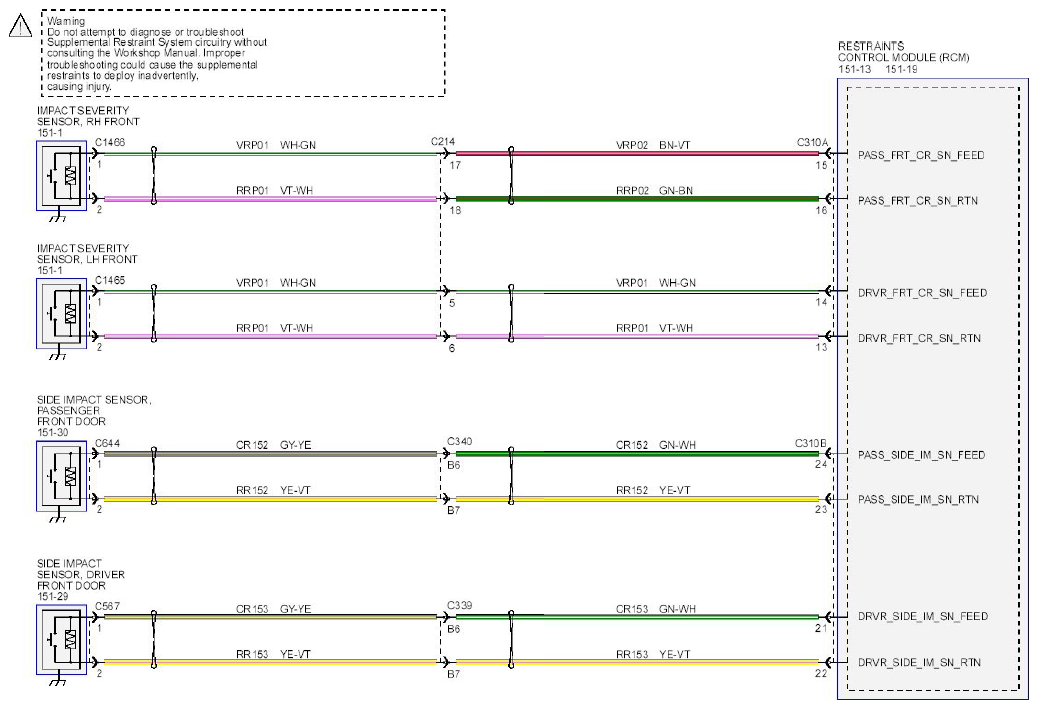

Fig 1: Supplemental Restraint System - Circuit Diagram (1 Of 7)

Courtesy of FORD MOTOR CO.

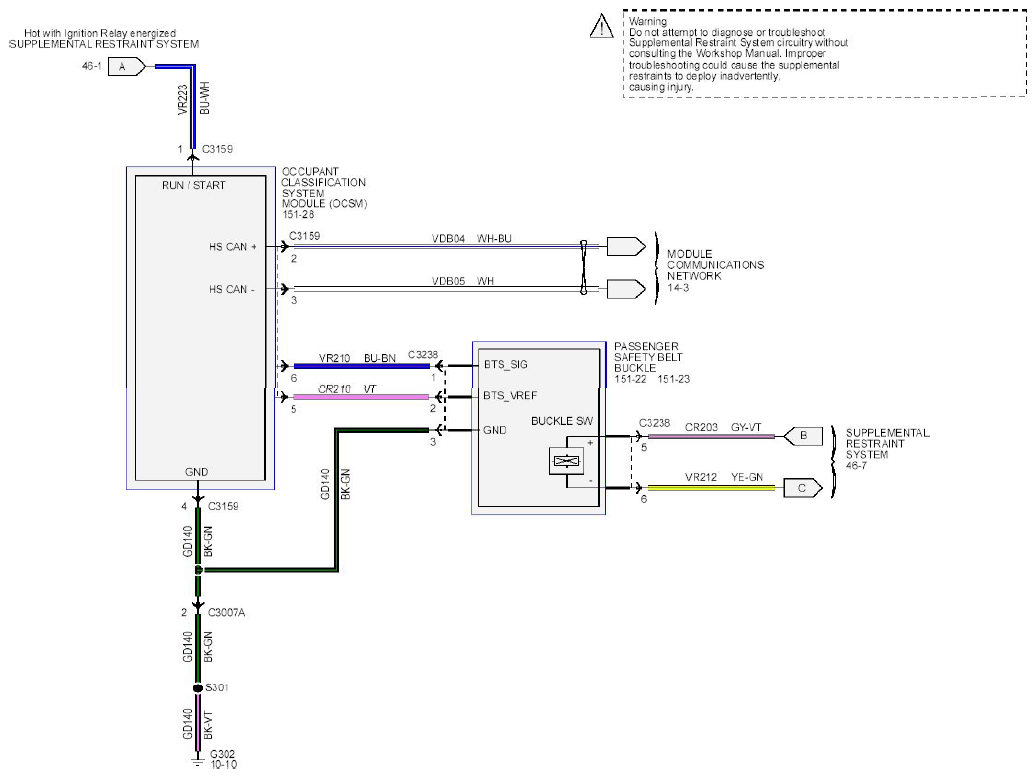

Fig 2: Supplemental Restraint System - Circuit Diagram (2 Of 7)

Courtesy of FORD MOTOR CO.

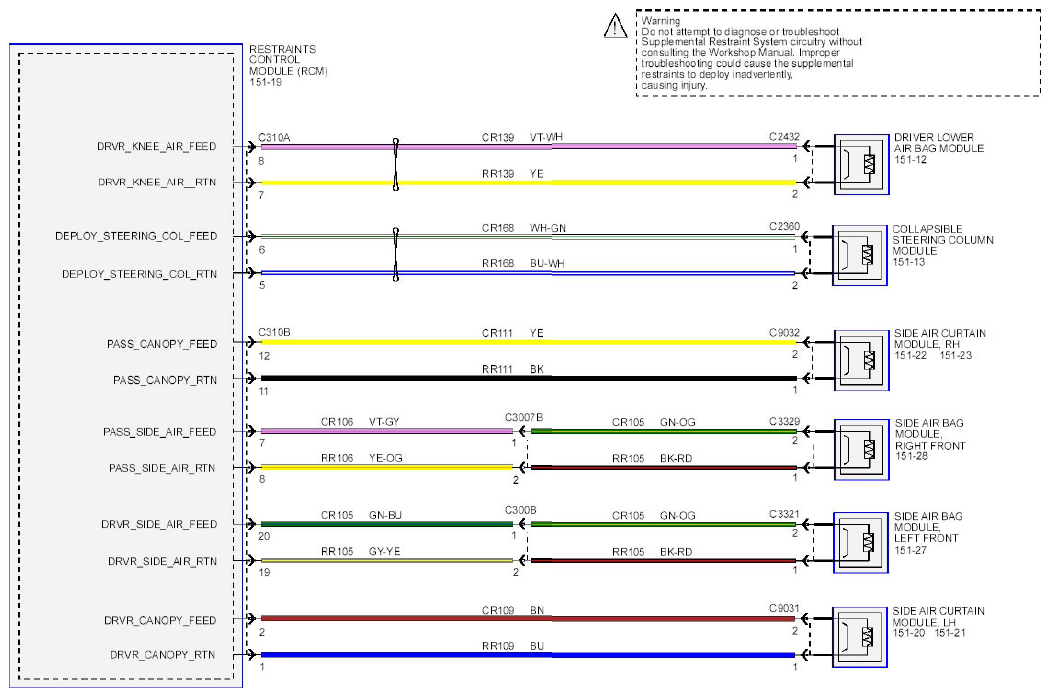

Fig 3: Supplemental Restraint System - Circuit Diagram (3 Of 7)

Courtesy of FORD MOTOR CO.

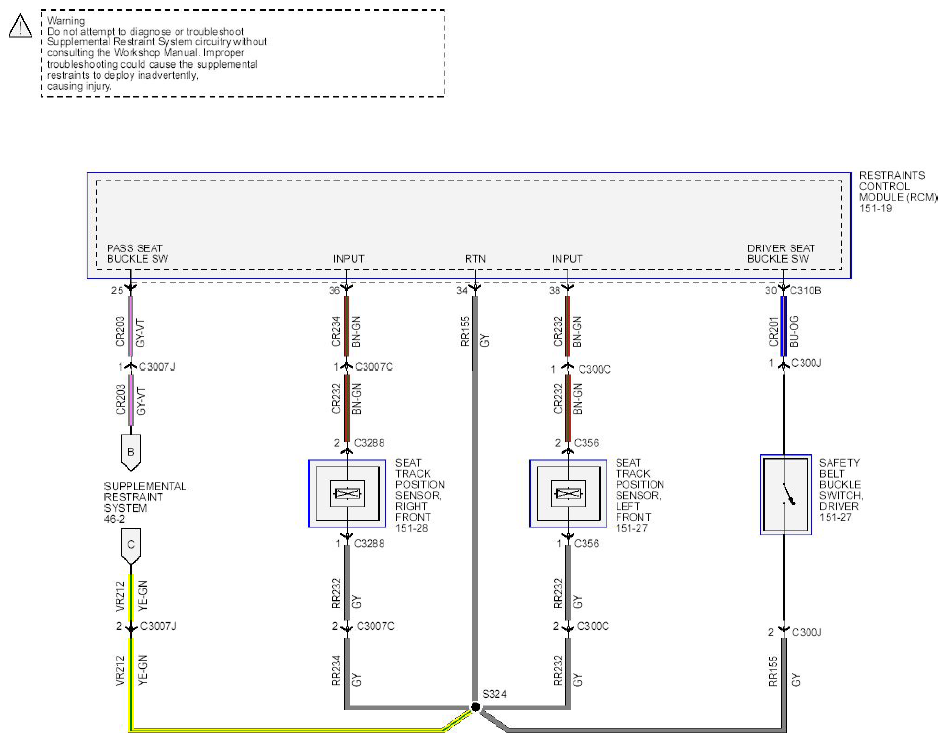

Fig 4: Supplemental Restraint System - Circuit Diagram (4 Of 7)

Courtesy of FORD MOTOR CO.

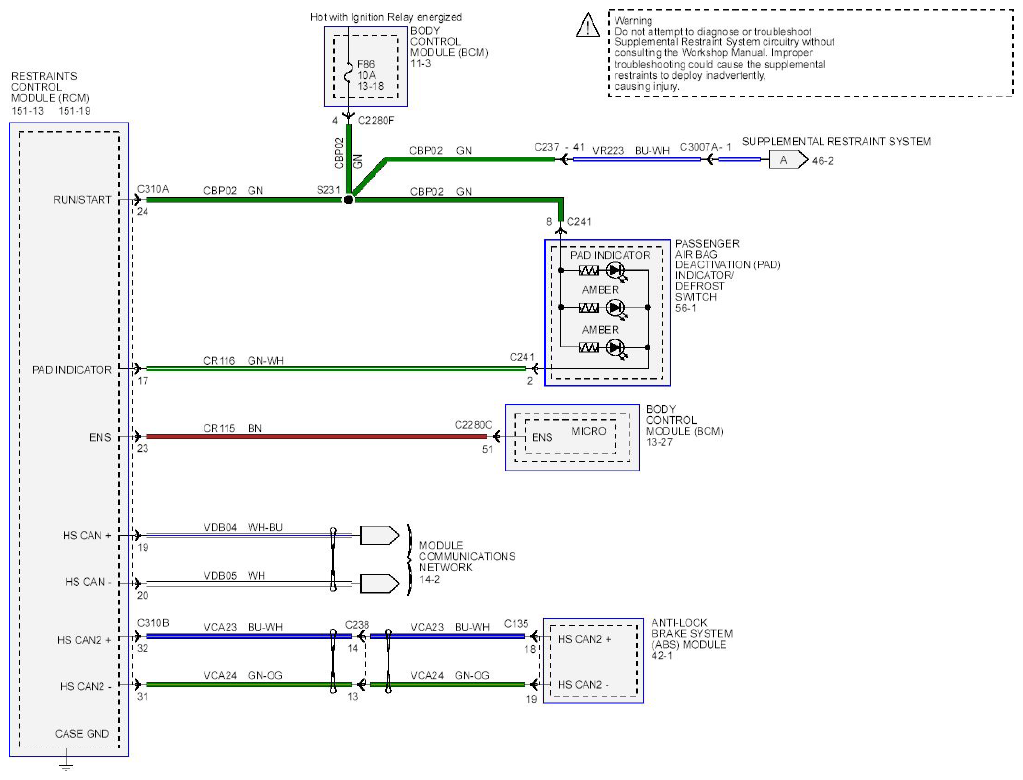

Fig 5: Supplemental Restraint System - Circuit Diagram (5 Of 7)

Courtesy of FORD MOTOR CO.

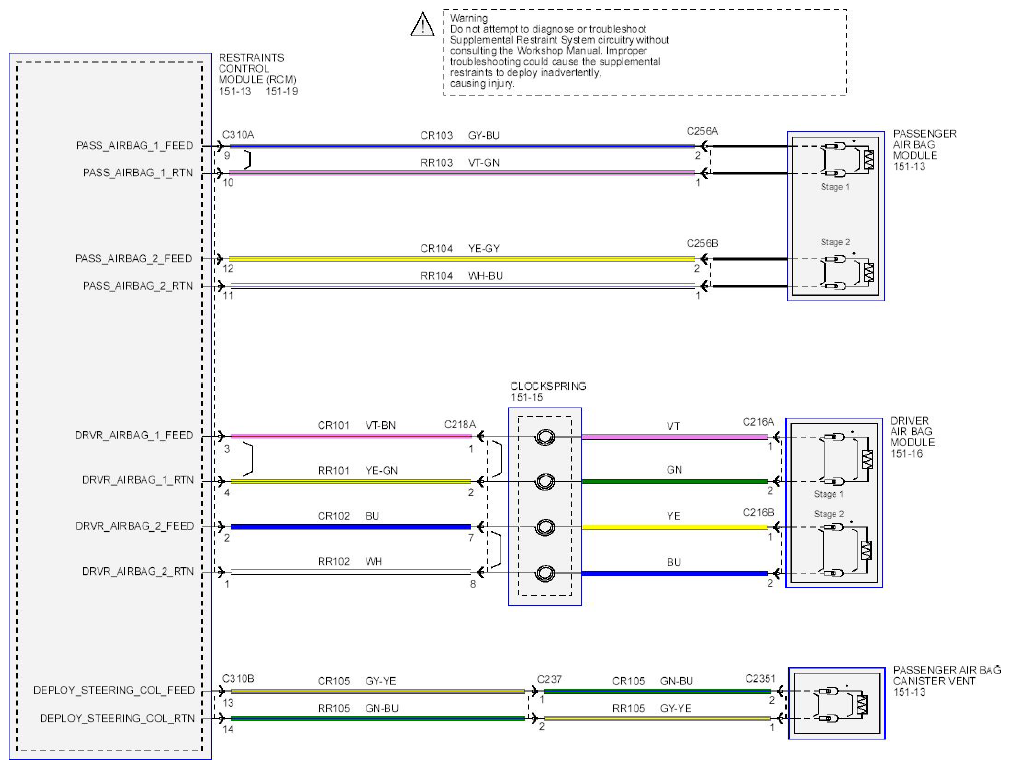

Fig 6: Supplemental Restraint System - Circuit Diagram (6 Of 7)

Courtesy of FORD MOTOR CO.

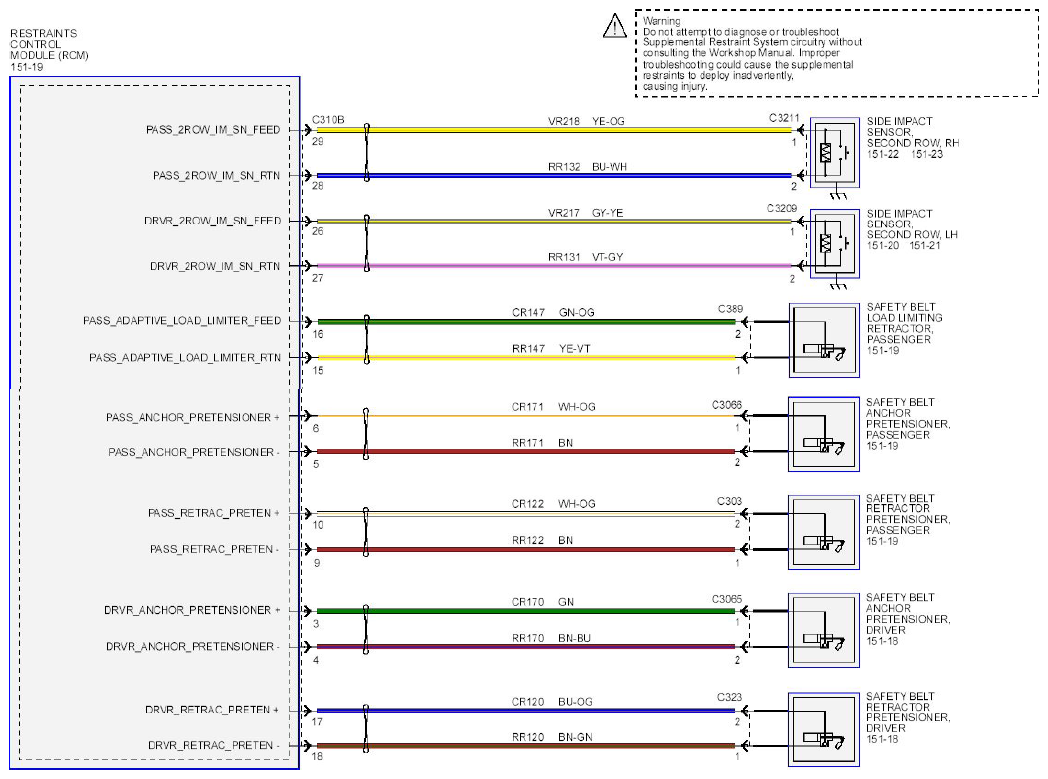

Fig 7: Supplemental Restraint System - Circuit Diagram (7 Of 7)

Courtesy of FORD MOTOR CO.
