Starting System
>>
With IA
With IA

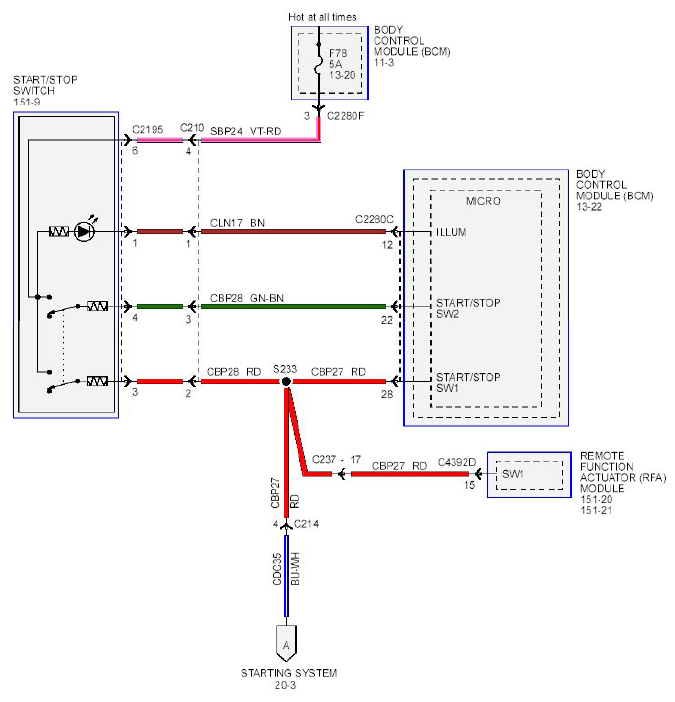

Fig 1: Starting System (With IA) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
