Focus Titanium, 4D Sedan, Standard Trans, Gas
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams - Except Electric
>>
Starting System
>>
Notes
Starting System: Notes

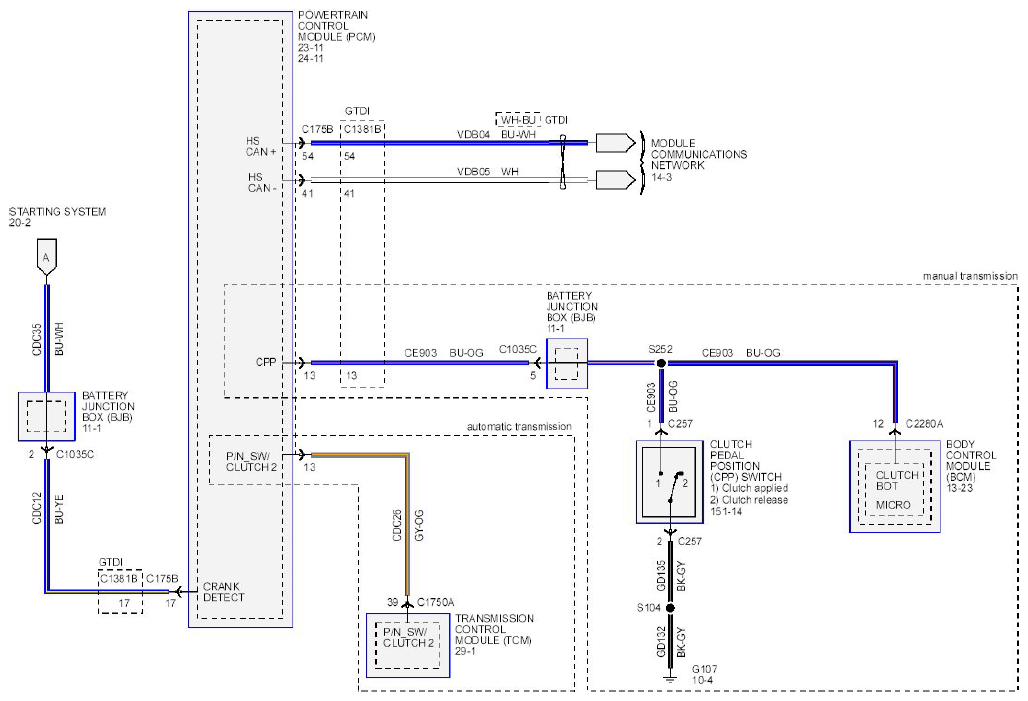

Fig 1: Starting System - Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

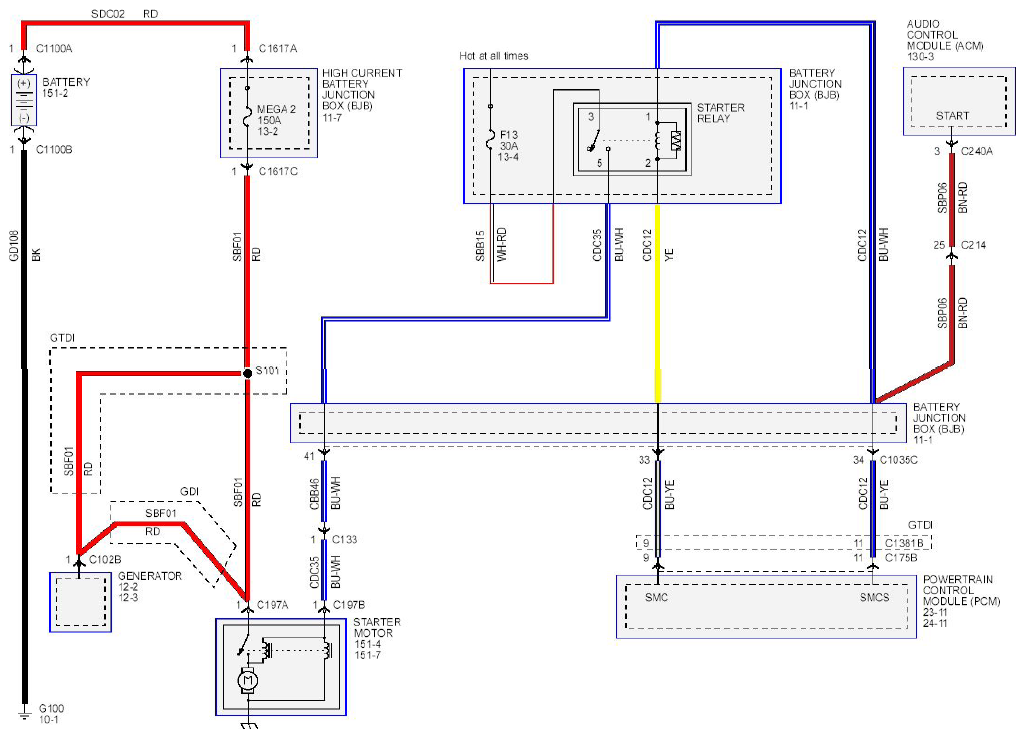

Fig 2: Starting System - Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
