Shift Interlock
>>
Without IA
Without IA

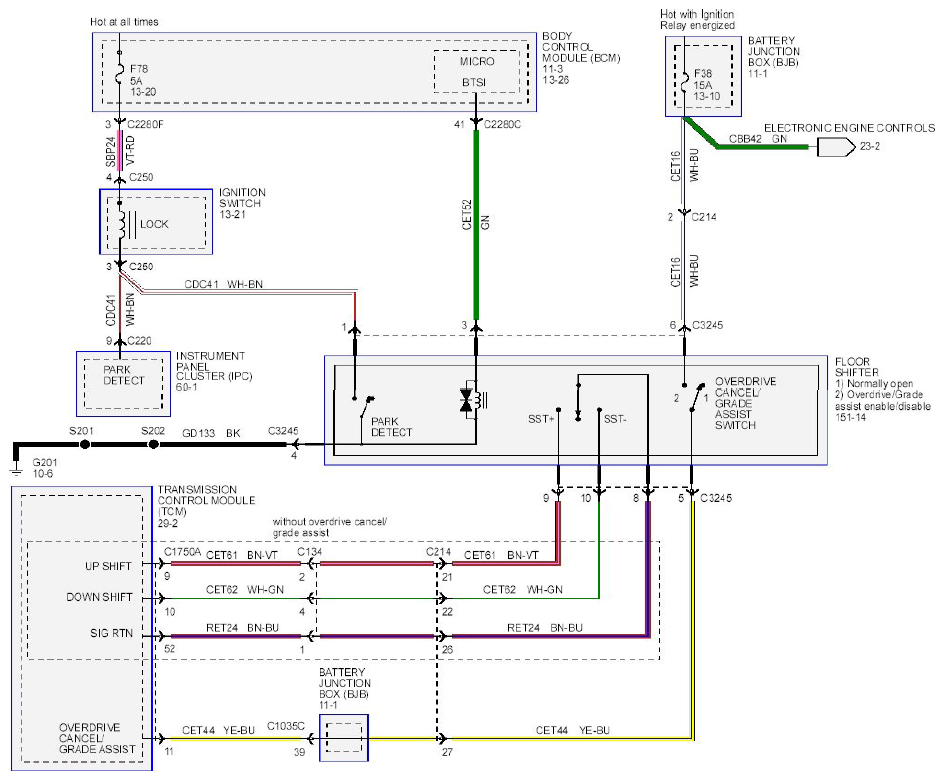

Fig 1: Shift Interlock Without IA - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
