Shift Interlock
>>
With IA
With IA

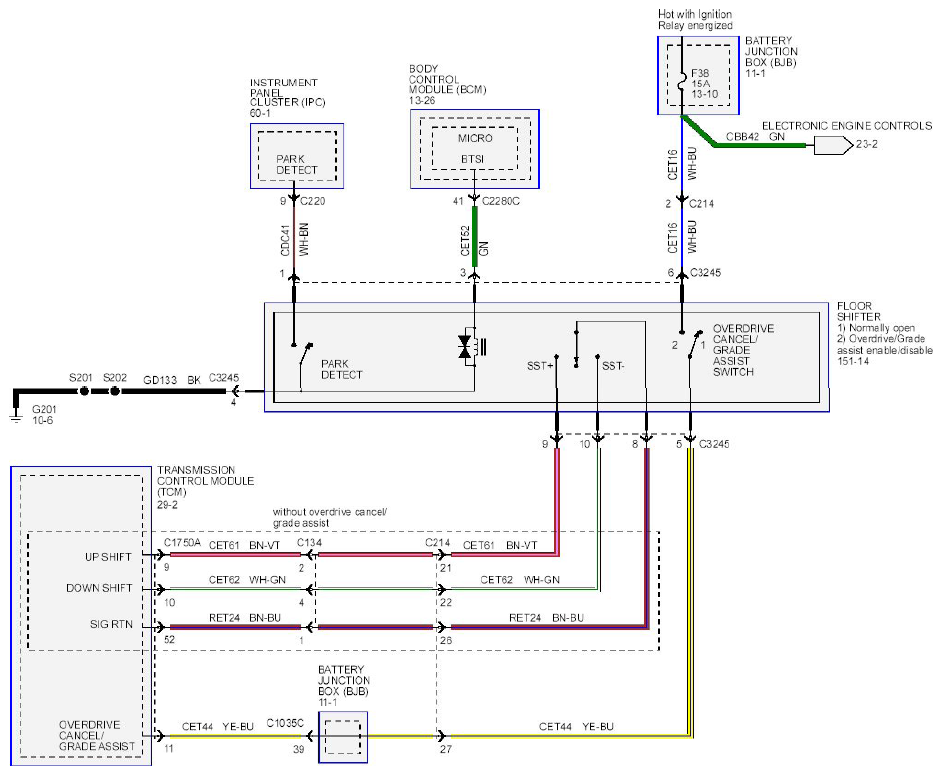

Fig 1: Shift Interlock With IA - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
