Roof Opening Panel
Roof Opening Panel

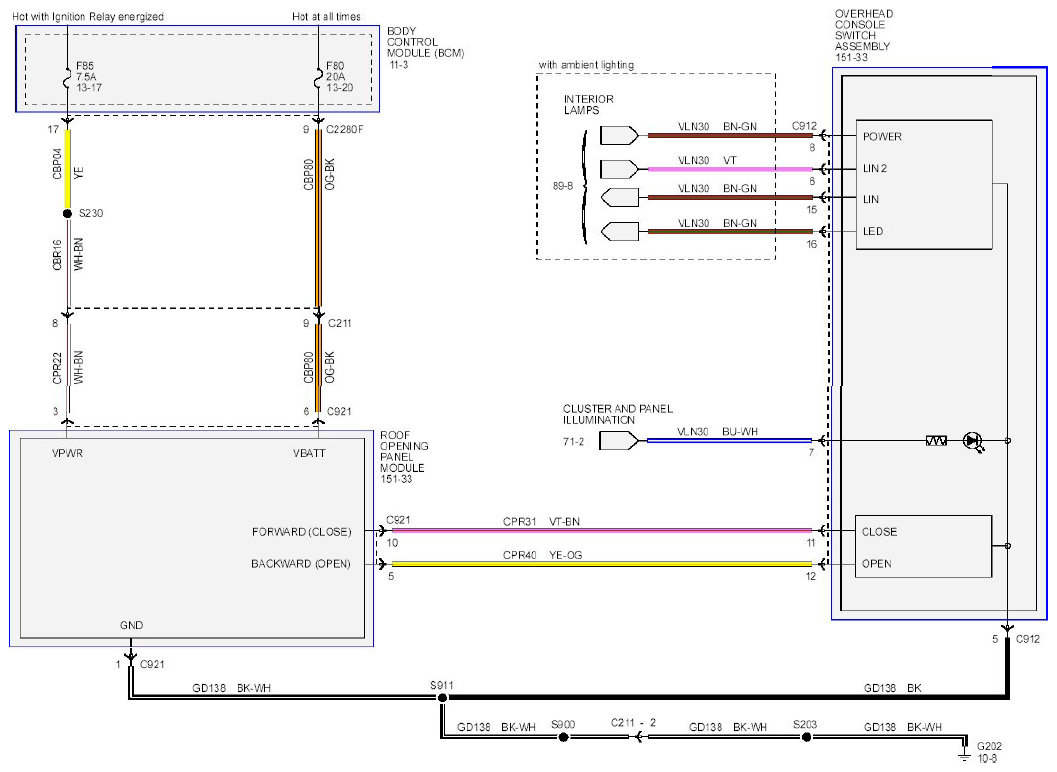

Fig 1: Roof Opening Panel - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
