Reversing Lamps
Reversing Lamps

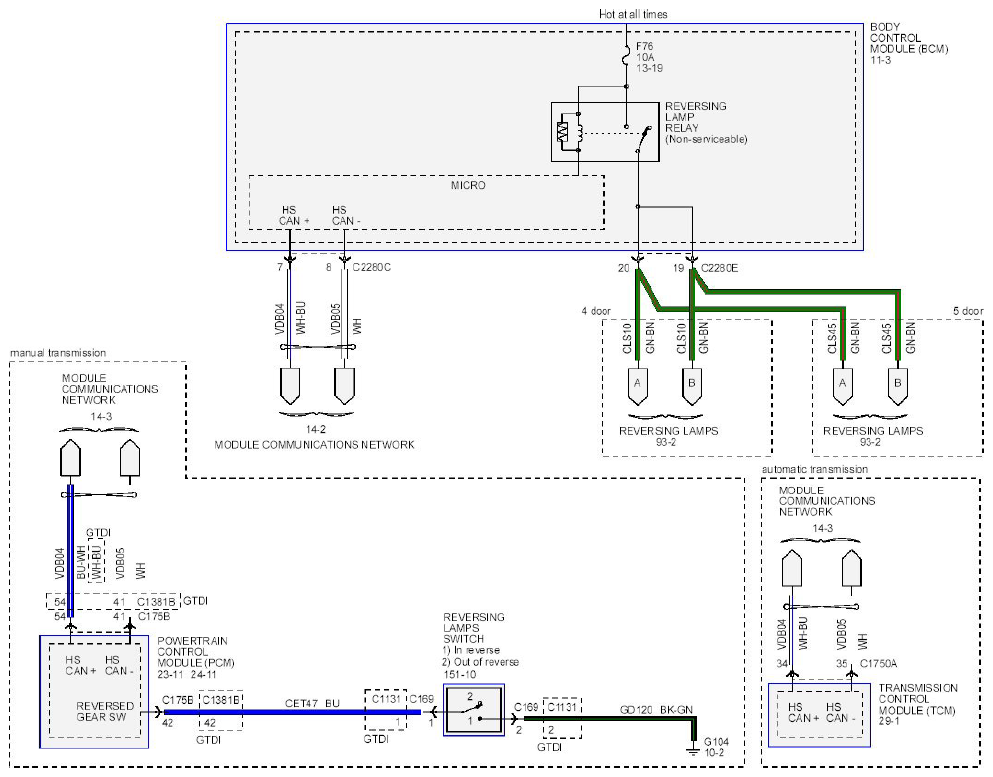

Fig 1: Reversing Lamps - Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

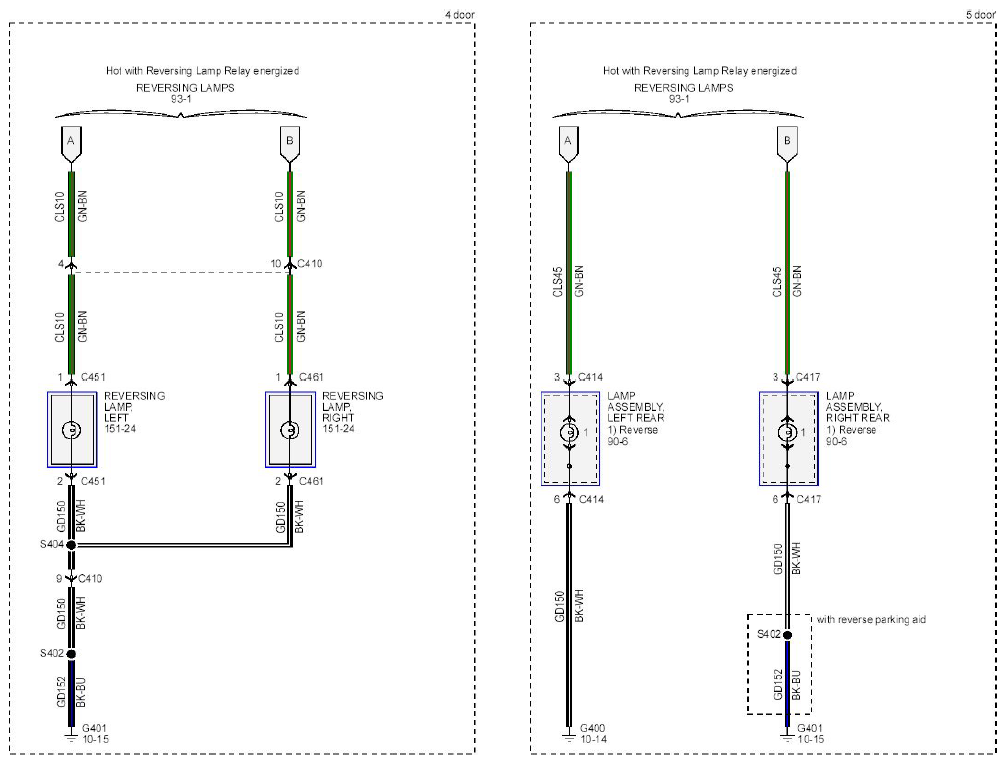

Fig 2: Reversing Lamps - Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
