Home >> Ford >> 2013 >> Focus Titanium, 4D Sedan, Standard Trans, Gas >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams - Except Electric >> Remote Keyless Entry And Alarm >> Without Door Modules

Without Door Modules

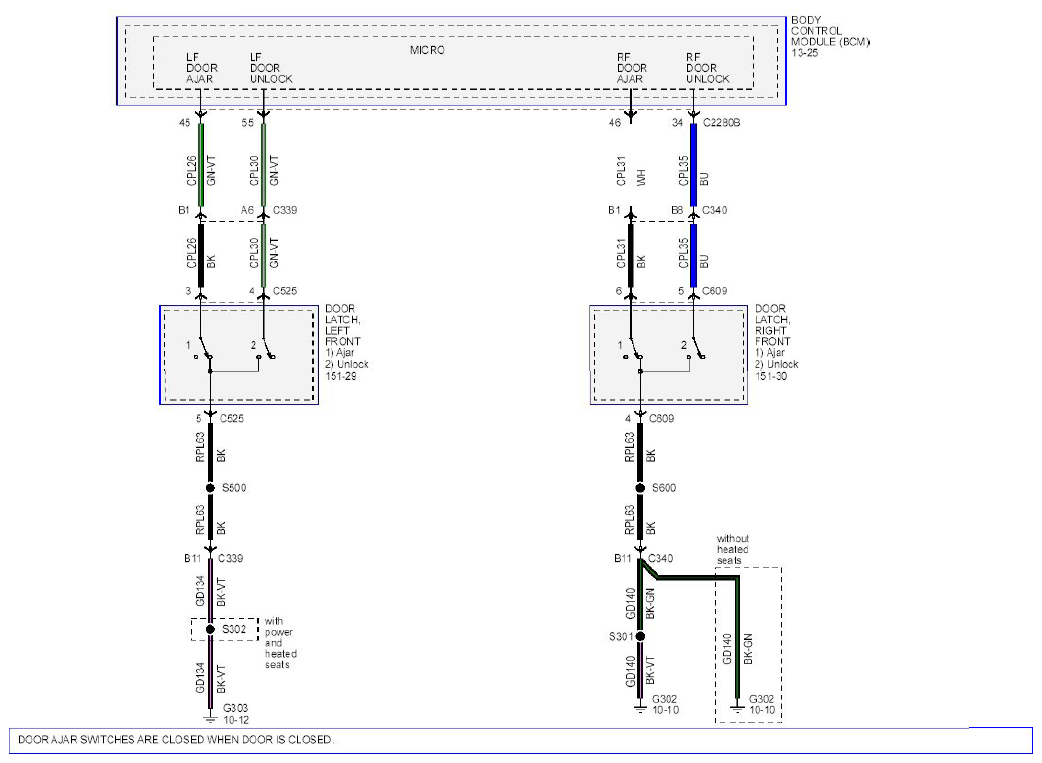

Fig 1: Remote Keyless Entry And Alarm (Without Door Modules) - Circuit Diagram (1 Of 3)
G08744387Courtesy of FORD MOTOR CO.

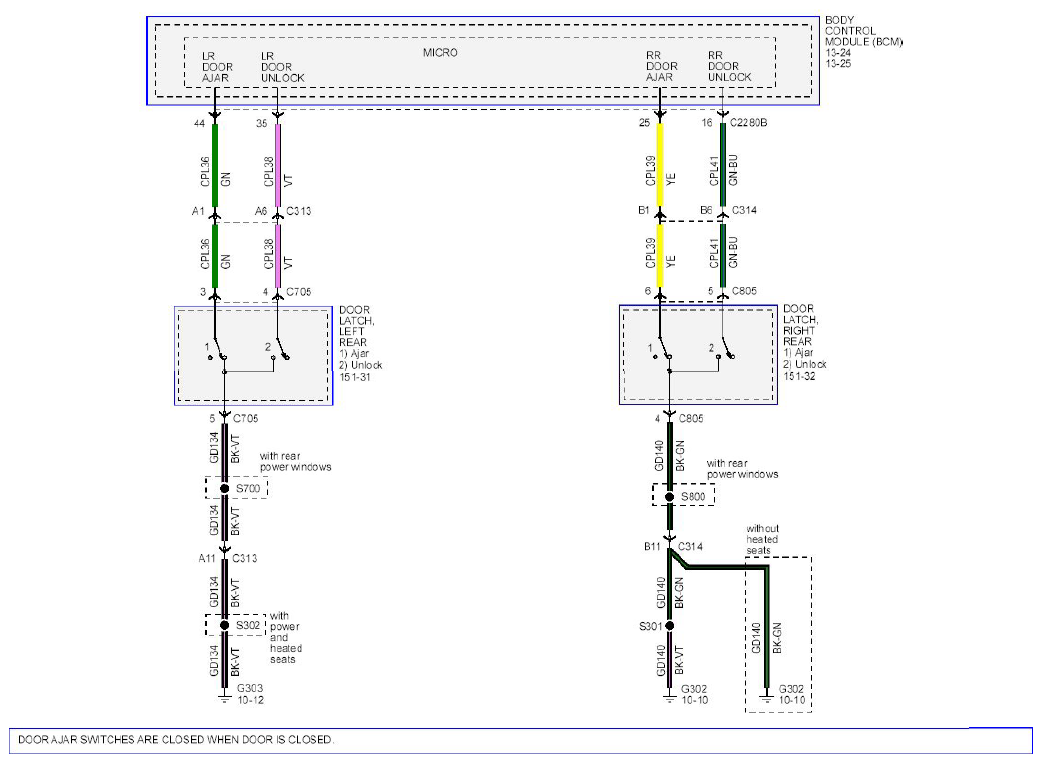

Fig 2: Remote Keyless Entry And Alarm (Without Door Modules) - Circuit Diagram (2 Of 3)
G08744388Courtesy of FORD MOTOR CO.

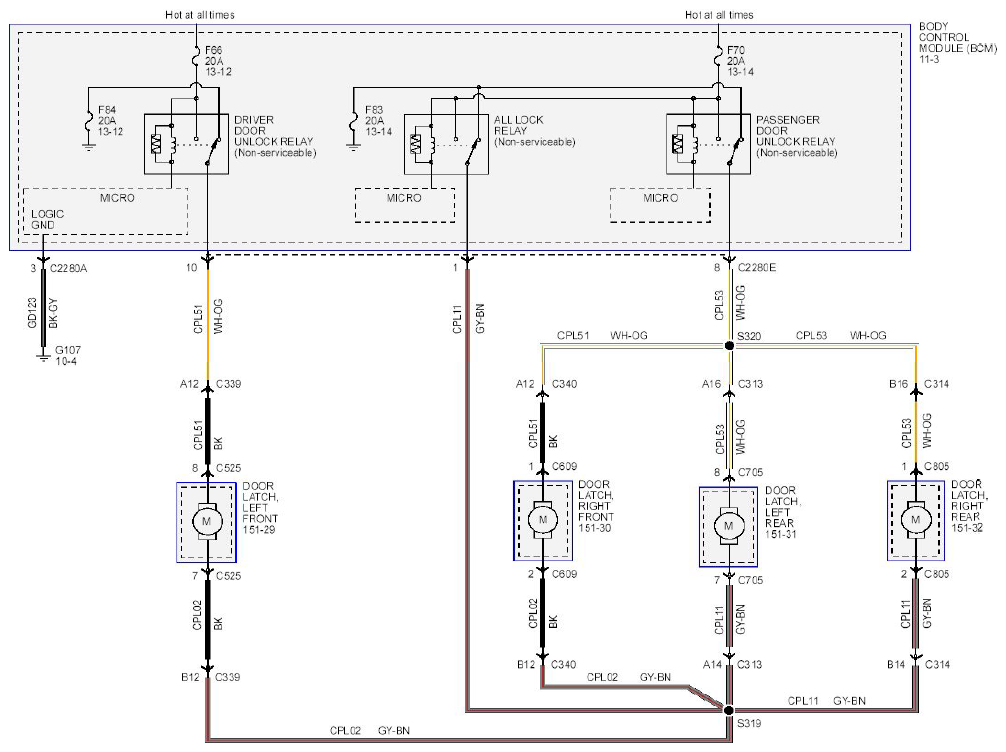

Fig 3: Remote Keyless Entry And Alarm (Without Door Modules) - Circuit Diagram (3 Of 3)
G08744389Courtesy of FORD MOTOR CO.
