Focus Titanium, 4D Sedan, Standard Trans, Gas
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams - Except Electric
>>
Remote Keyless Entry And Alarm
>>
With IA
With IA

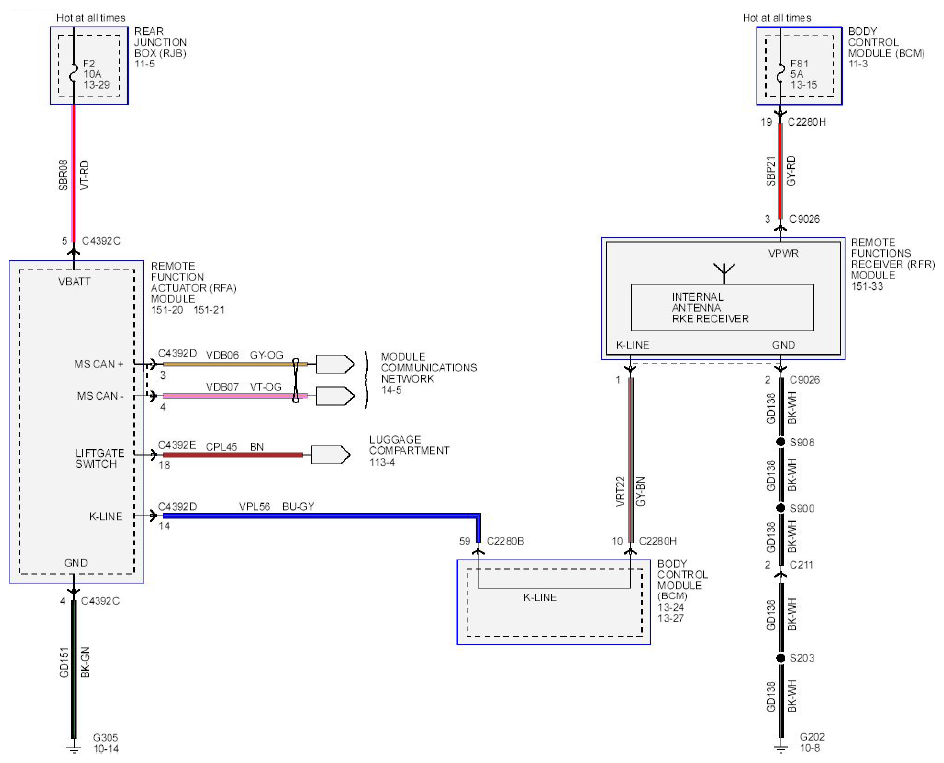

Fig 1: Remote Keyless Entry And Alarm (With IA) - Circuit Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

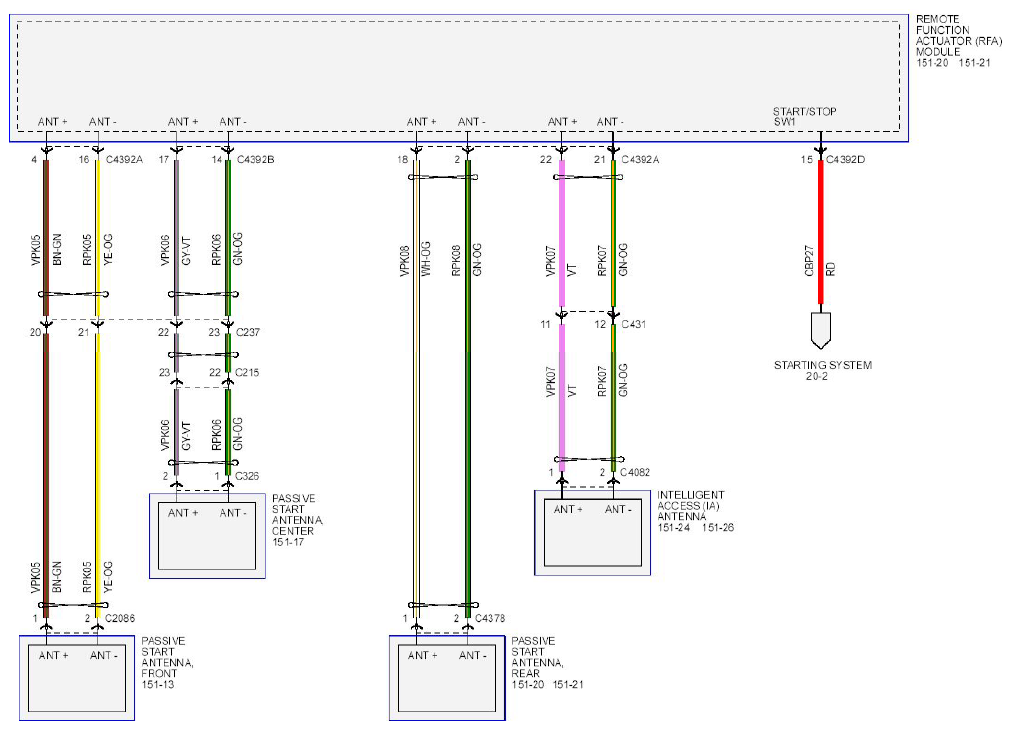

Fig 2: Remote Keyless Entry And Alarm (With IA) - Circuit Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

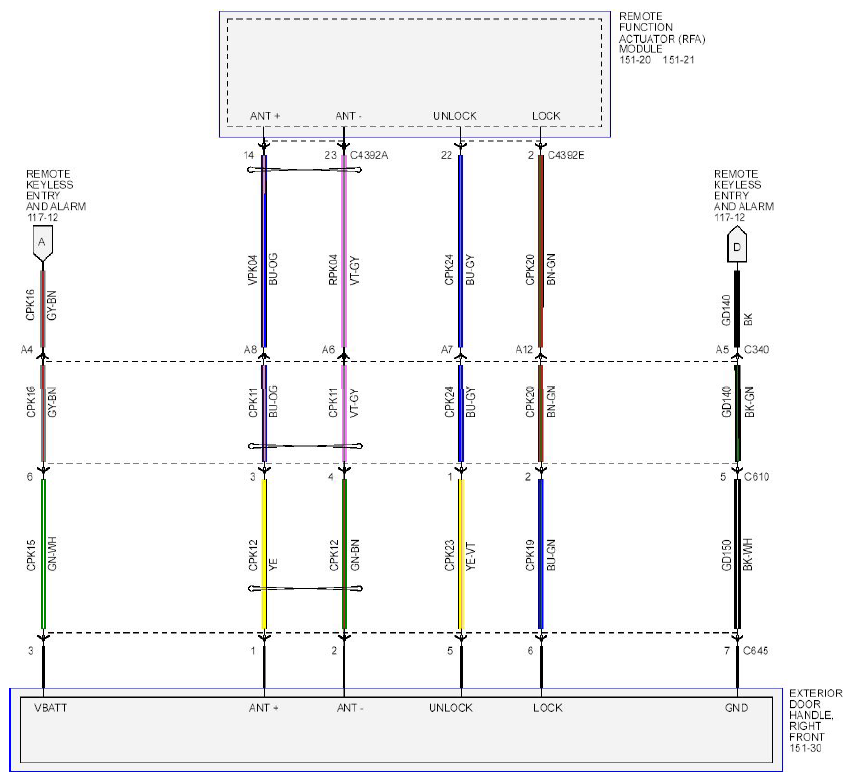

Fig 3: Remote Keyless Entry And Alarm (With IA) - Circuit Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

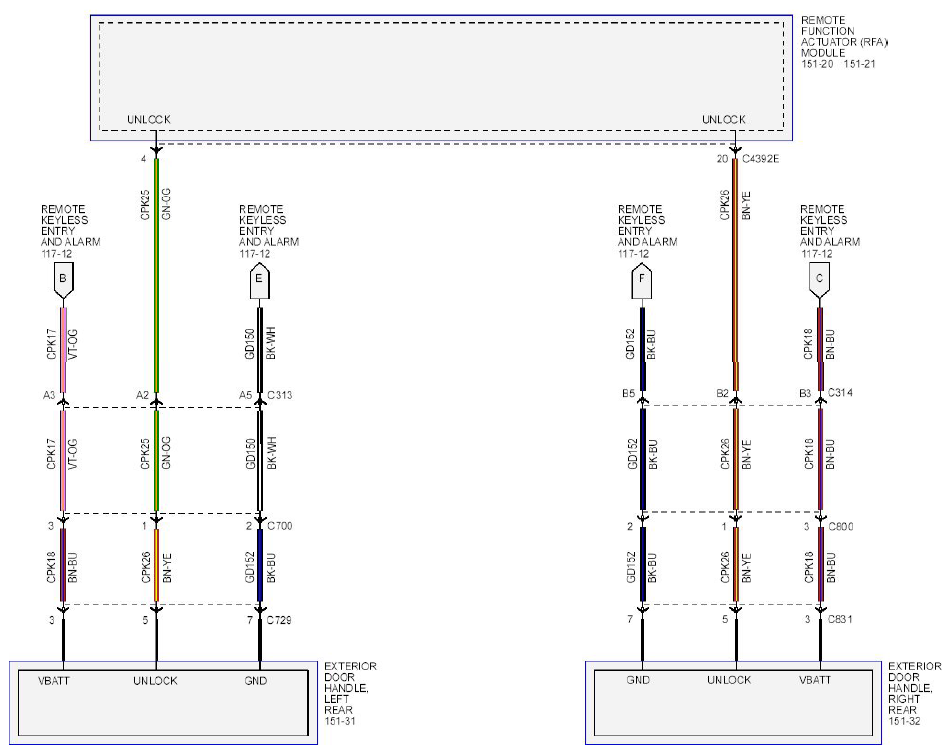

Fig 4: Remote Keyless Entry And Alarm (With IA) - Circuit Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

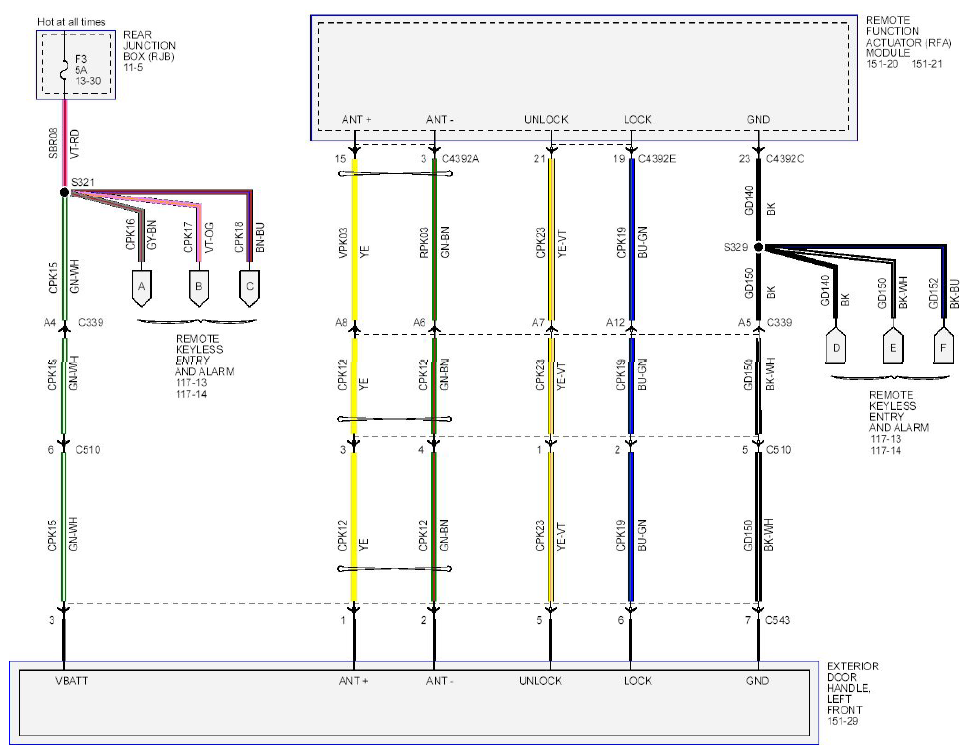

Fig 5: Remote Keyless Entry And Alarm (With IA) - Circuit Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
