With Door Modules

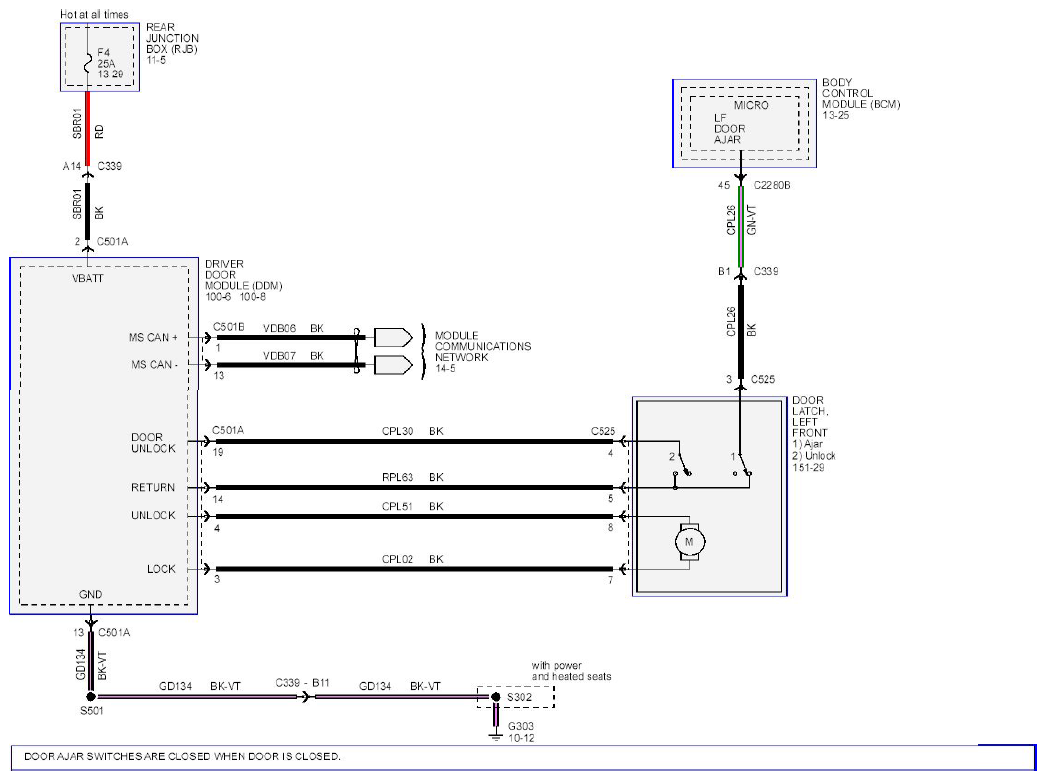

Fig 1: Remote Keyless Entry And Alarm (With Door Modules) - Circuit Diagram (1 Of 4)
G08744390Courtesy of FORD MOTOR CO.

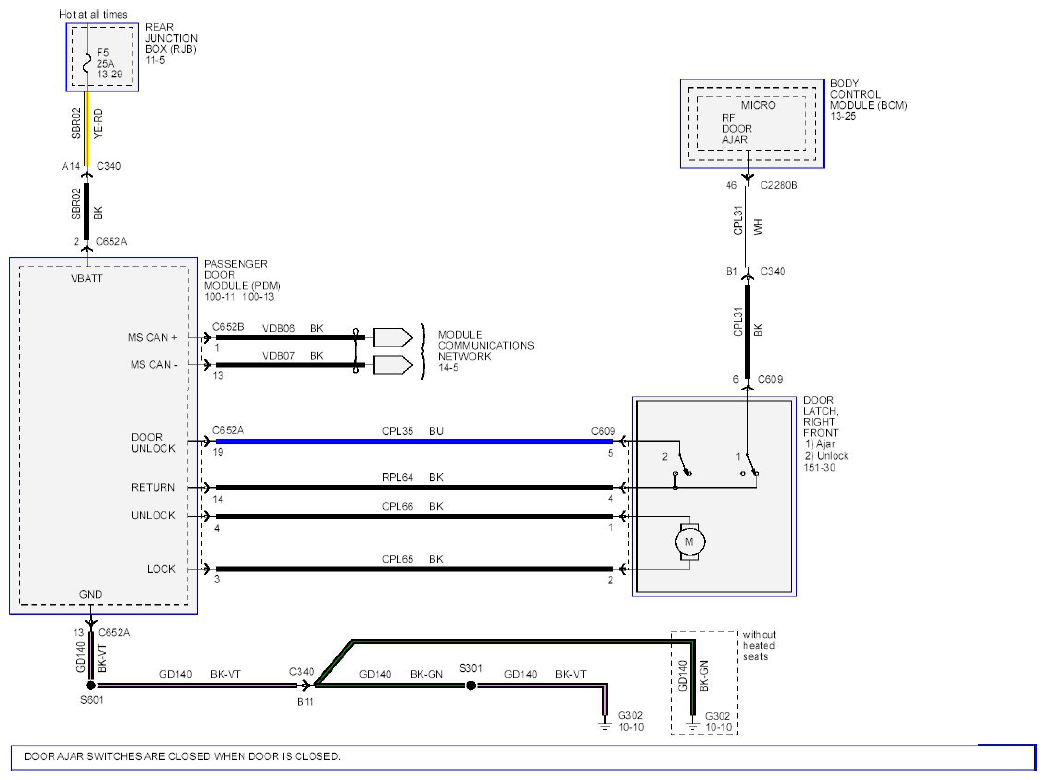

Fig 2: Remote Keyless Entry And Alarm (With Door Modules) - Circuit Diagram (2 Of 4)
G08744391Courtesy of FORD MOTOR CO.

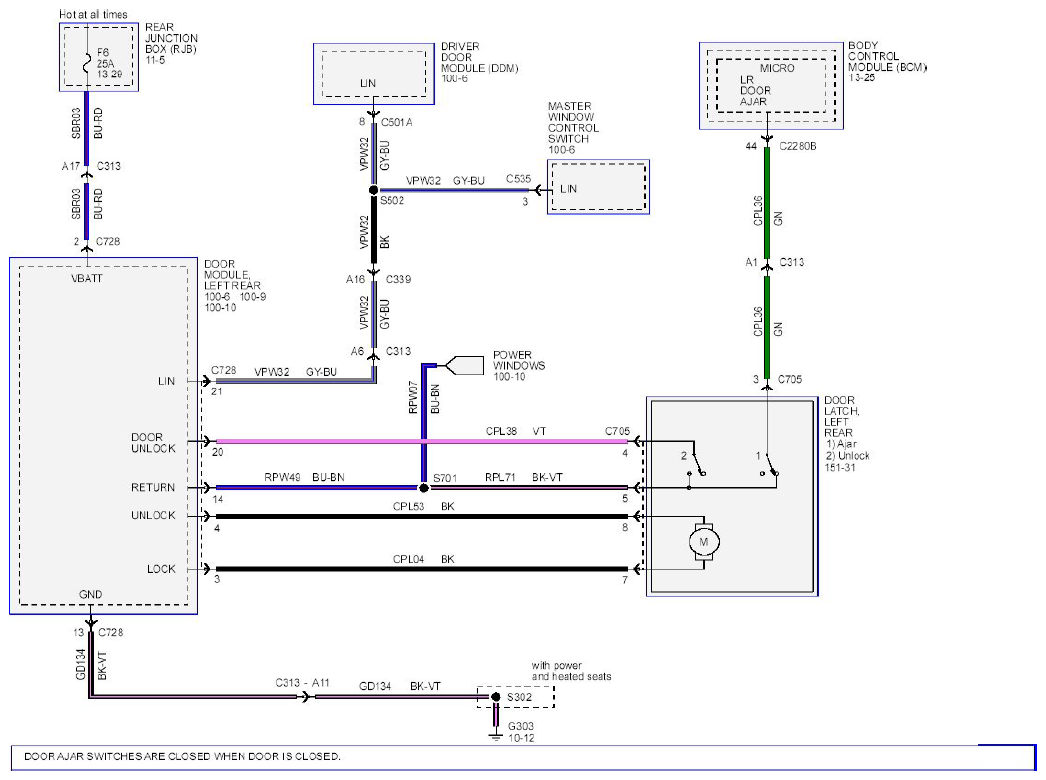

Fig 3: Remote Keyless Entry And Alarm (With Door Modules) - Circuit Diagram (3 Of 4)
G08744392Courtesy of FORD MOTOR CO.

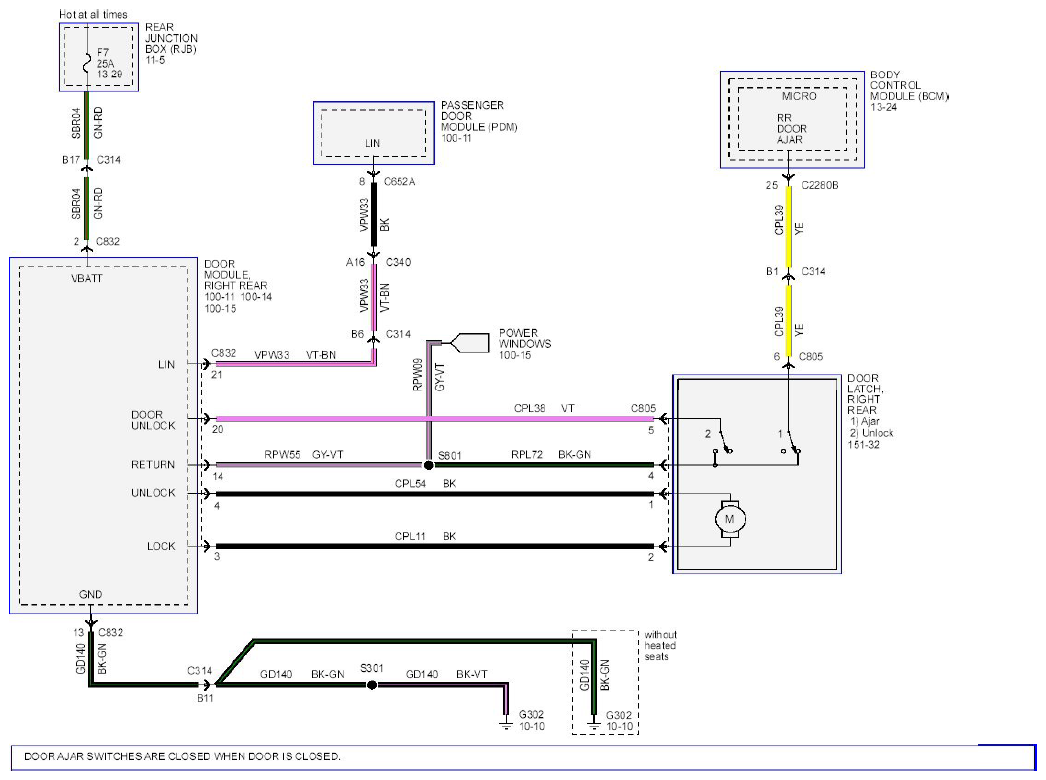

Fig 4: Remote Keyless Entry And Alarm (With Door Modules) - Circuit Diagram (4 Of 4)
G08744393Courtesy of FORD MOTOR CO.
