Remote Keyless Entry And Alarm: Notes

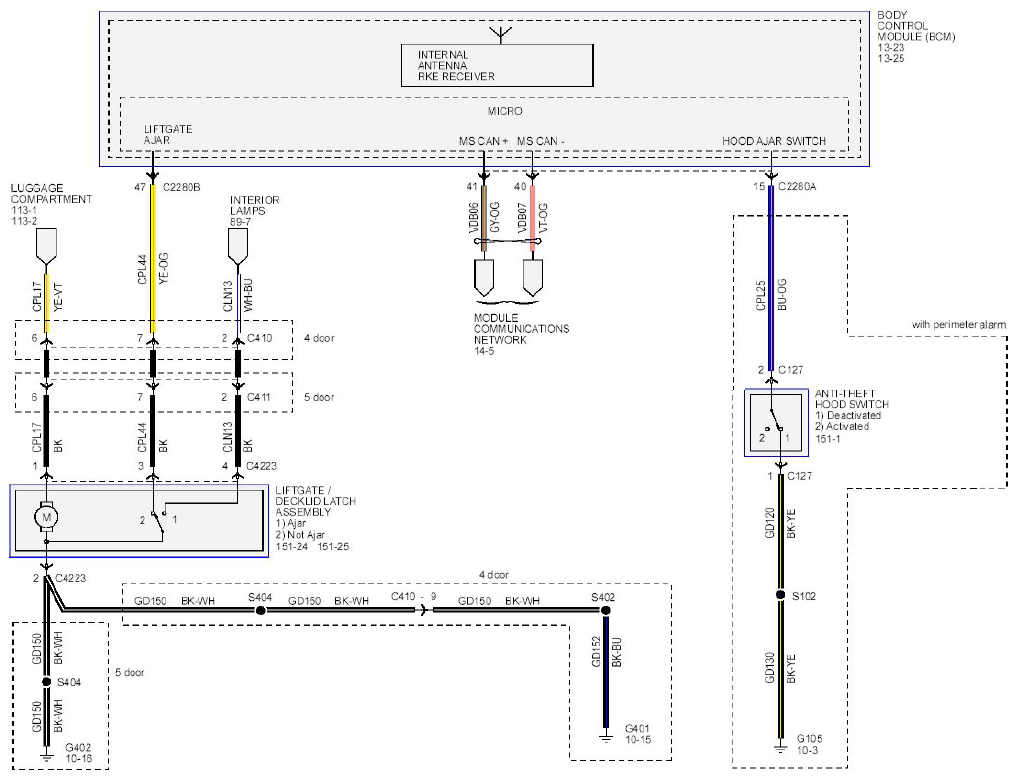

Fig 1: Remote Keyless Entry And Alarm - Circuit Diagram

G08744394

Courtesy of FORD MOTOR CO.
