Without Door Modules With Rear Power Windows

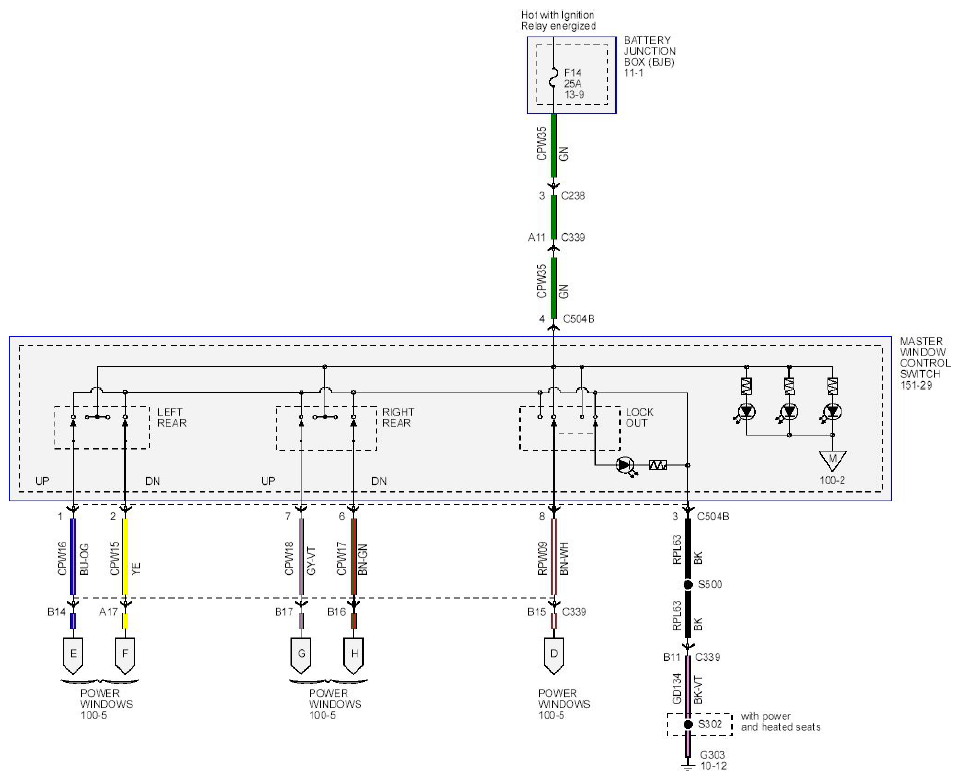

Fig 1: Power Windows (Without Door Modules With Rear Power Windows) - Circuit Diagram (1 Of 3)

Courtesy of FORD MOTOR CO.

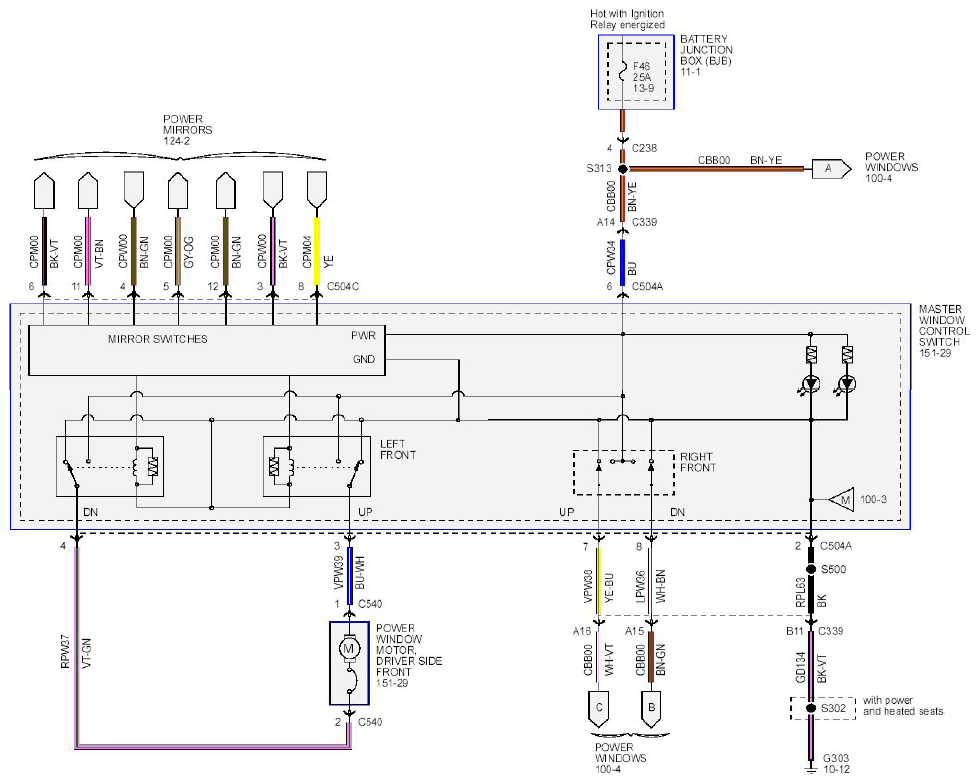

Fig 2: Power Windows (Without Door Modules With Rear Power Windows) - Circuit Diagram (2 Of 3)

Courtesy of FORD MOTOR CO.

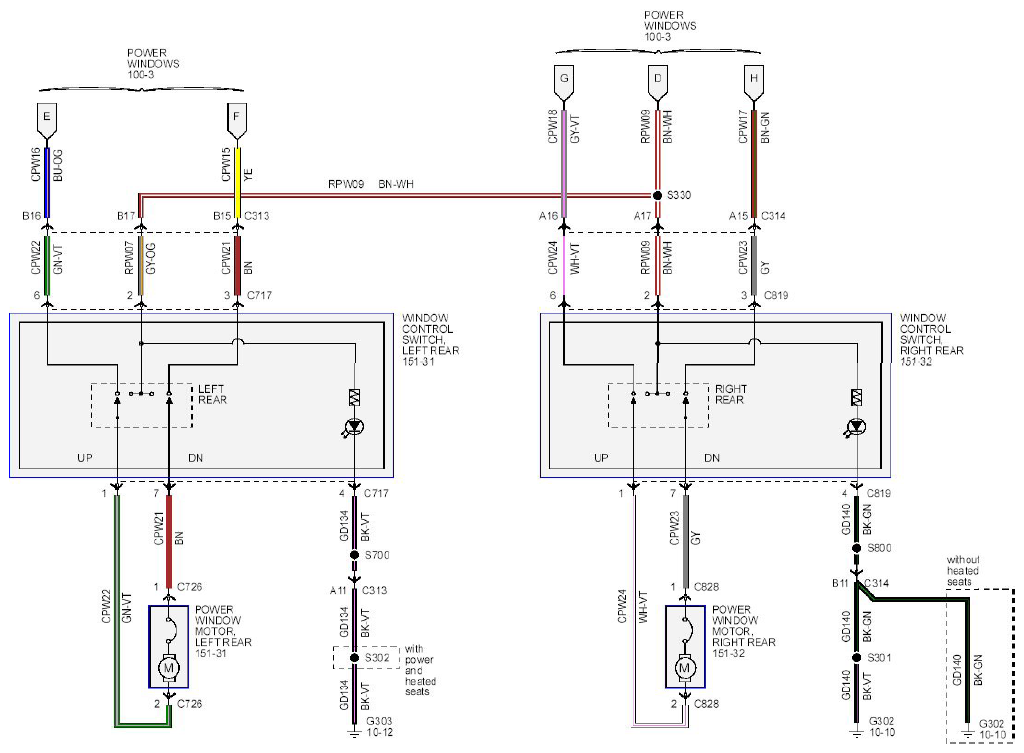

Fig 3: Power Windows (Without Door Modules With Rear Power Windows) - Circuit Diagram (3 Of 3)

Courtesy of FORD MOTOR CO.
