With Door Modules

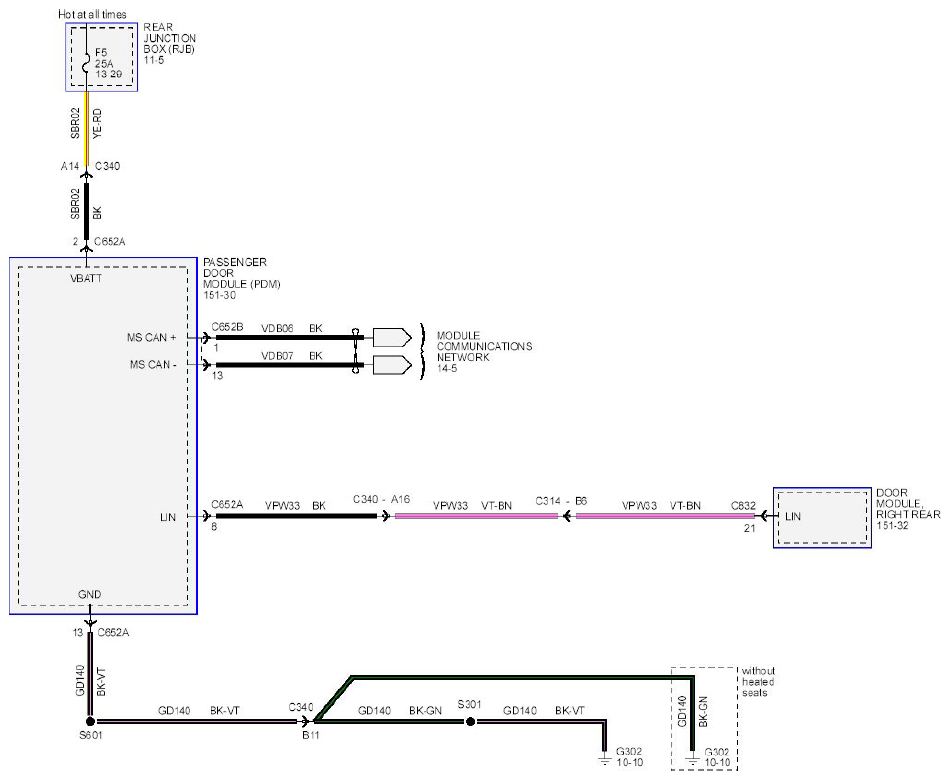

Fig 1: Power Windows (With Door Modules) - Circuit Diagram (1 Of 10)

Courtesy of FORD MOTOR CO.

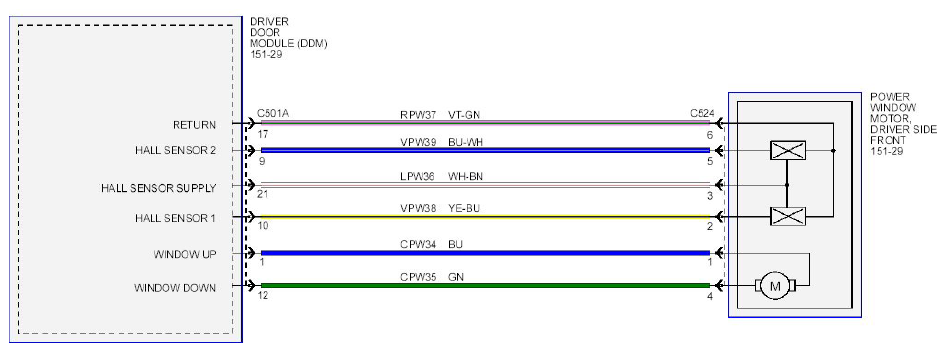

Fig 2: Power Windows (With Door Modules) - Circuit Diagram (2 Of 10)

Courtesy of FORD MOTOR CO.

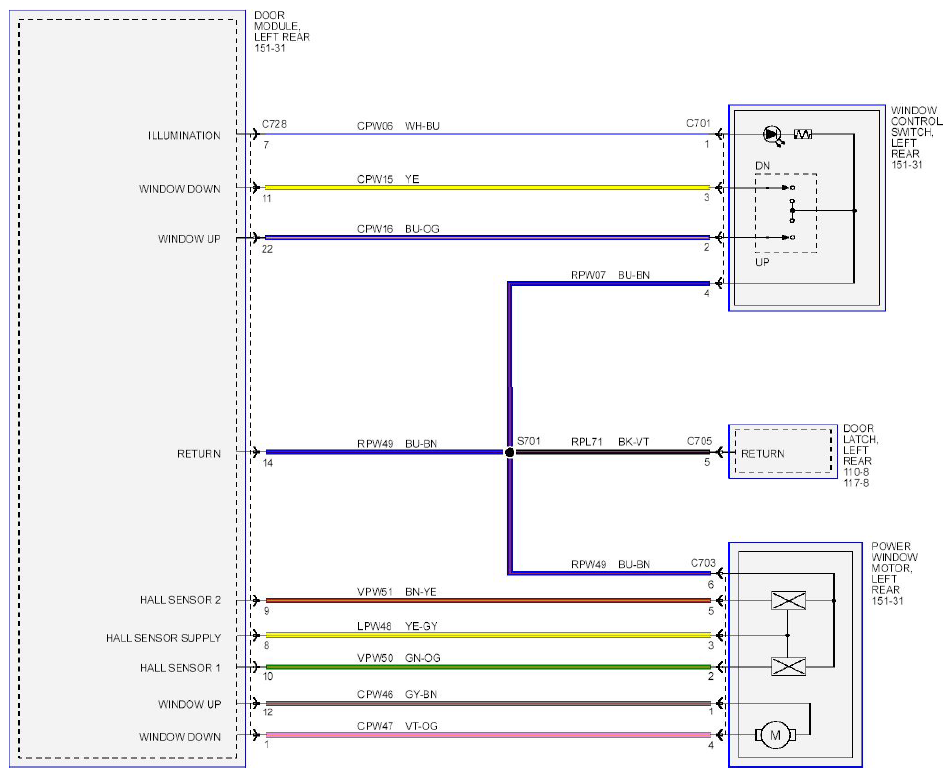

Fig 3: Power Windows (With Door Modules) - Circuit Diagram (3 Of 10)

Courtesy of FORD MOTOR CO.

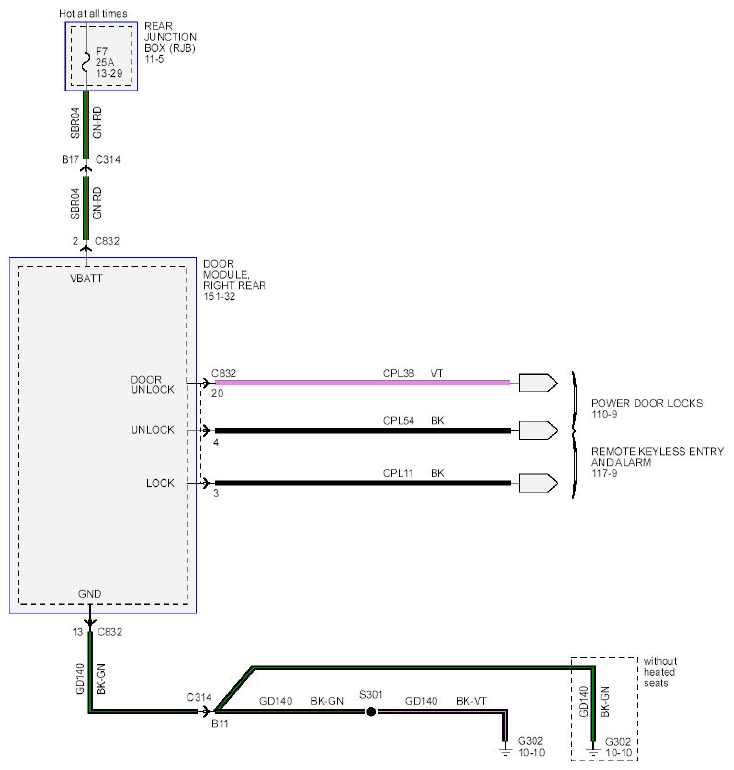

Fig 4: Power Windows (With Door Modules) - Circuit Diagram (4 Of 10)

Courtesy of FORD MOTOR CO.

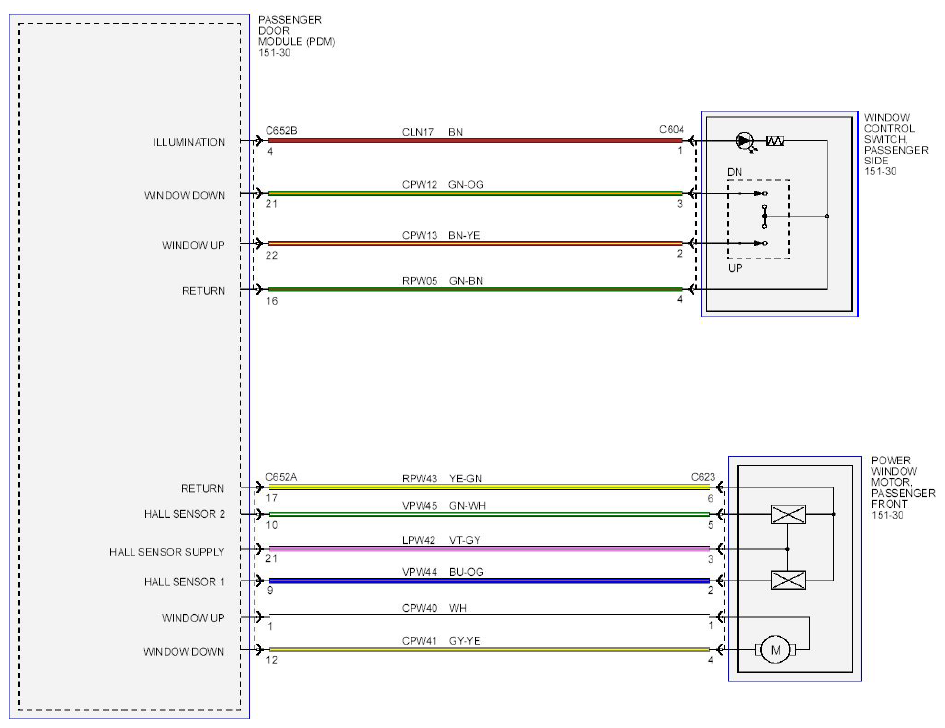

Fig 5: Power Windows (With Door Modules) - Circuit Diagram (5 Of 10)

Courtesy of FORD MOTOR CO.

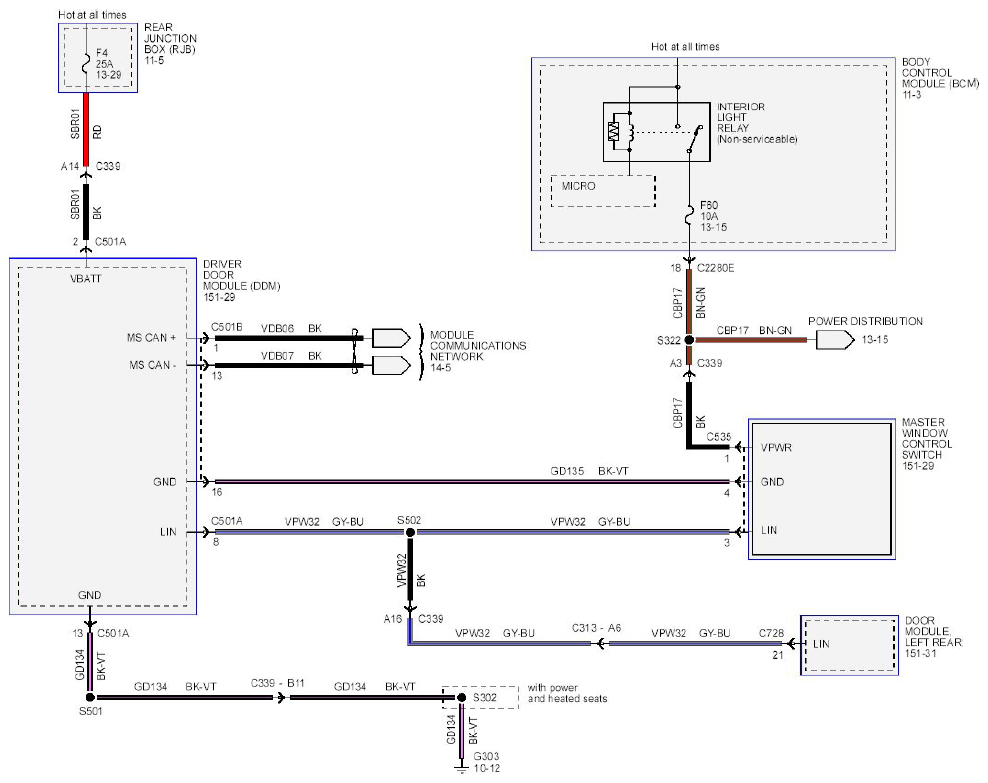

Fig 6: Power Windows (With Door Modules) - Circuit Diagram (6 Of 10)

Courtesy of FORD MOTOR CO.

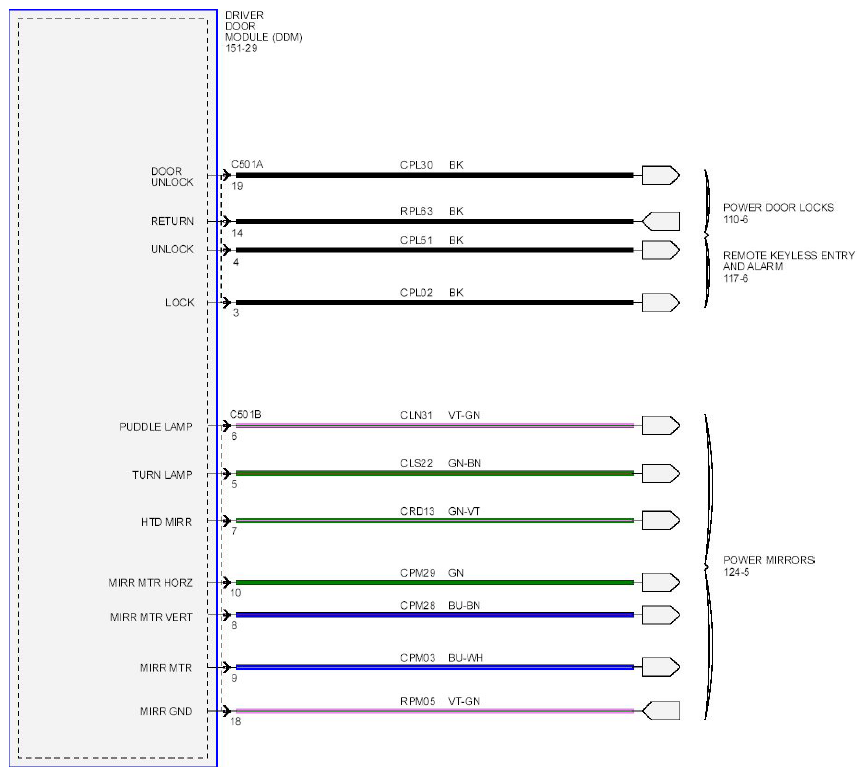

Fig 7: Power Windows (With Door Modules) - Circuit Diagram (7 Of 10)

Courtesy of FORD MOTOR CO.

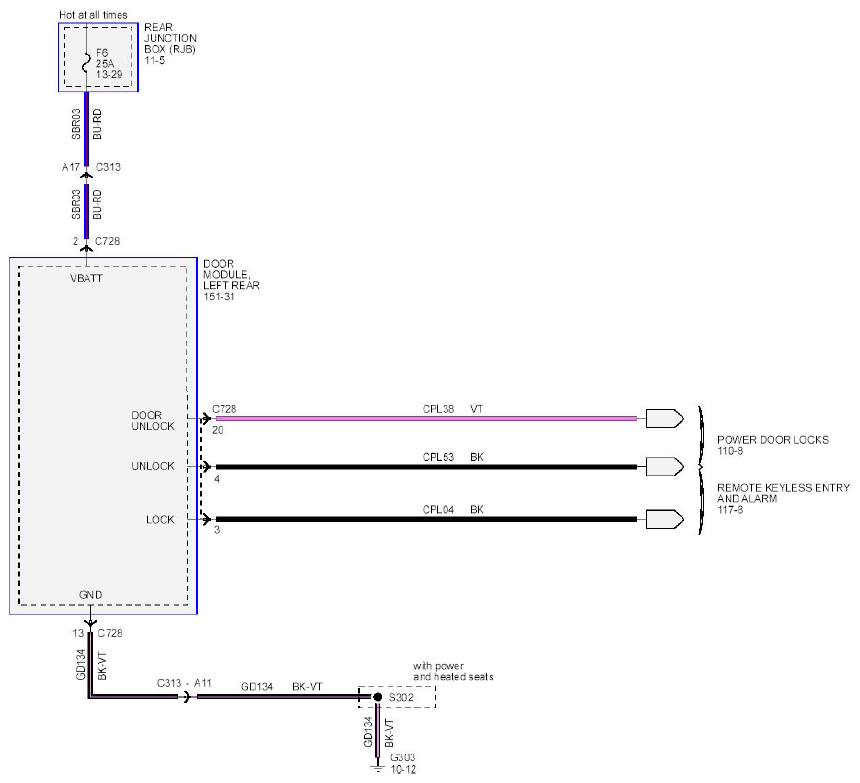

Fig 8: Power Windows (With Door Modules) - Circuit Diagram (8 Of 10)

Courtesy of FORD MOTOR CO.

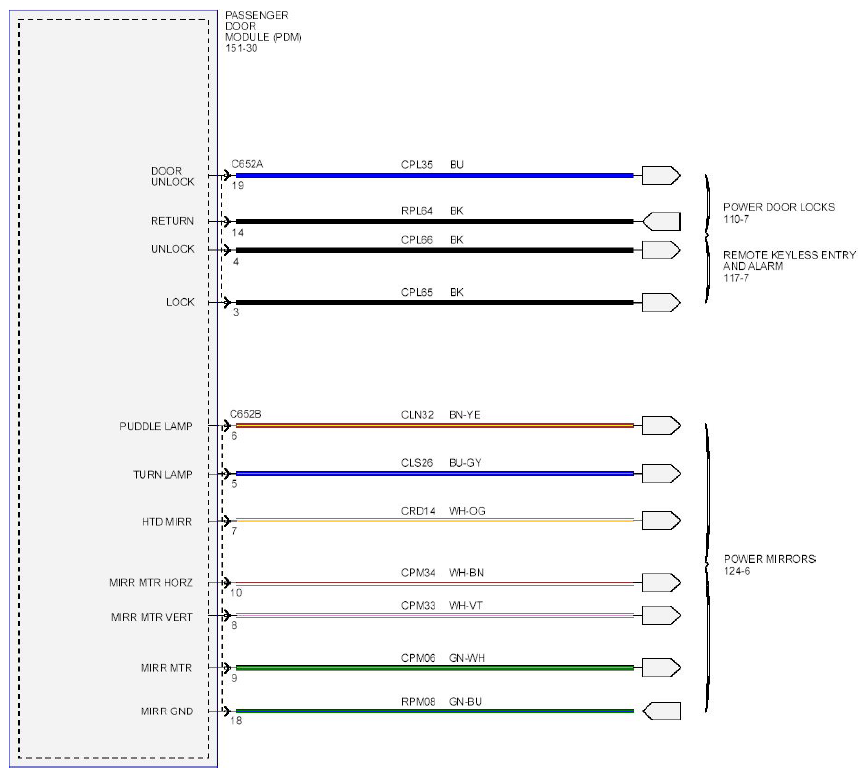

Fig 9: Power Windows (With Door Modules) - Circuit Diagram (9 Of 10)

Courtesy of FORD MOTOR CO.

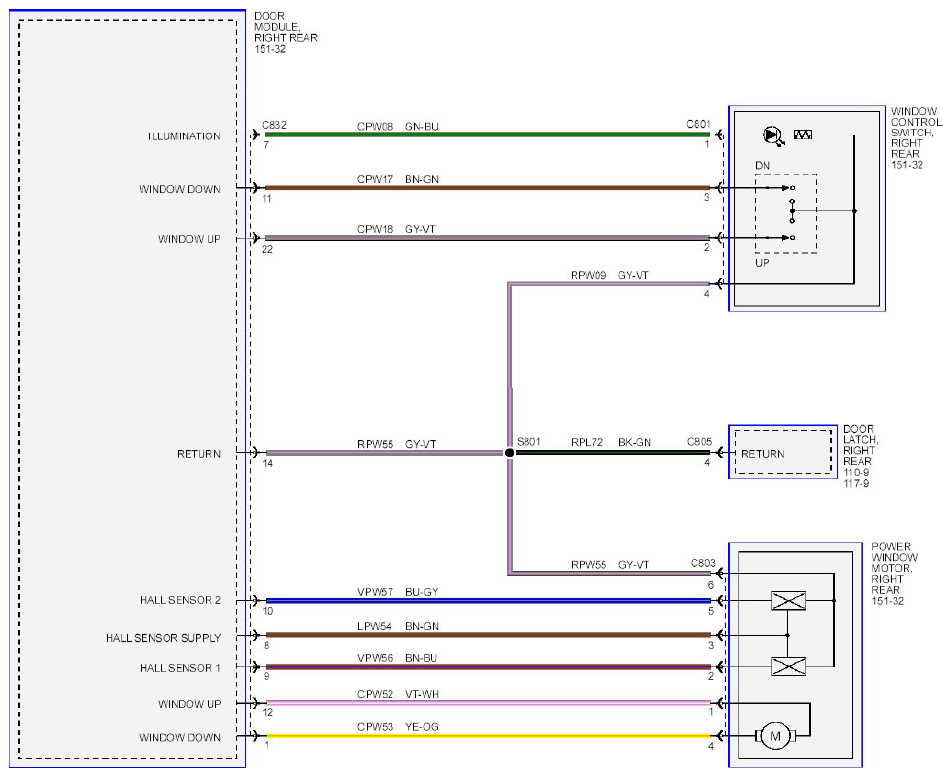

Fig 10: Power Windows (With Door Modules) - Circuit Diagram (10 Of 10)

Courtesy of FORD MOTOR CO.
