Power Mirrors
>>
Without Door Modules Without Rear Power Windows
Without Door Modules Without Rear Power Windows

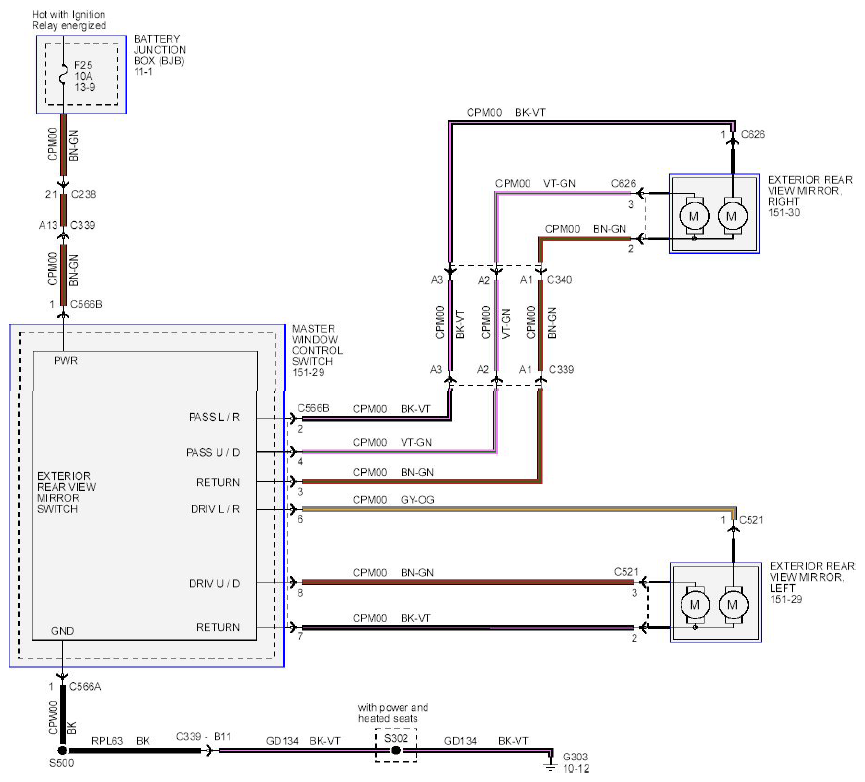

Fig 1: Power Mirrors (Without Door Modules And Rear Power Windows) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
