Home >> Ford >> 2013 >> Focus Titanium, 4D Sedan, Standard Trans, Gas >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams - Except Electric >> Power Mirrors >> With Door Modules

With Door Modules

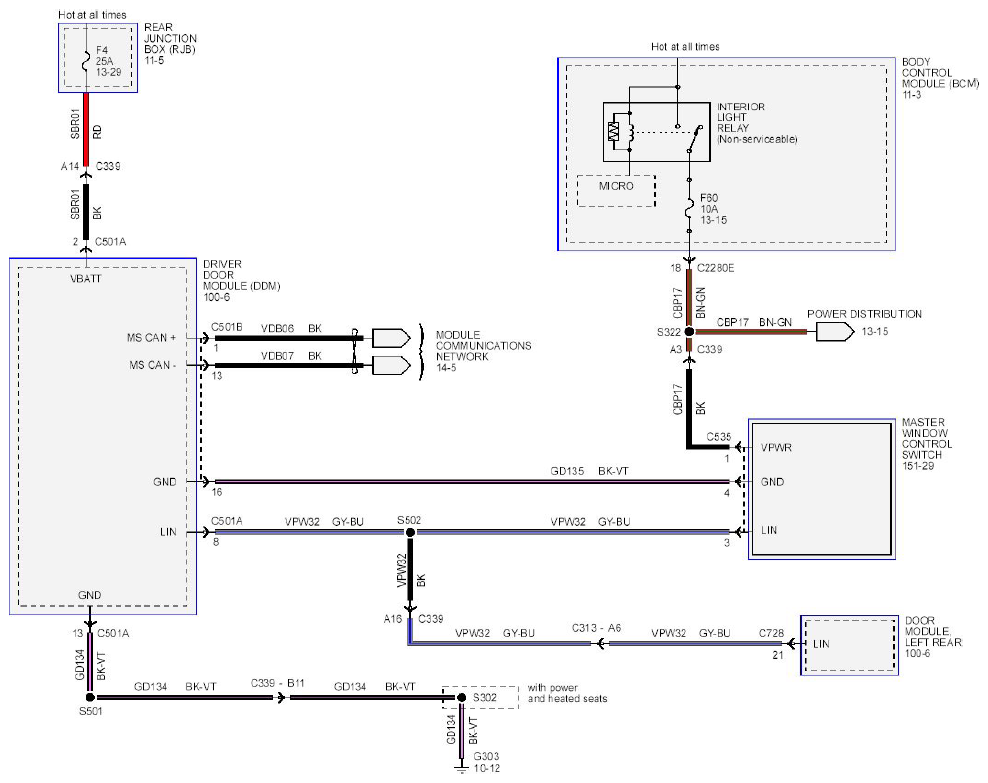

Fig 1: Power Mirrors (With Door Modules) - Circuit Diagram (1 Of 4)
G08744405Courtesy of FORD MOTOR CO.

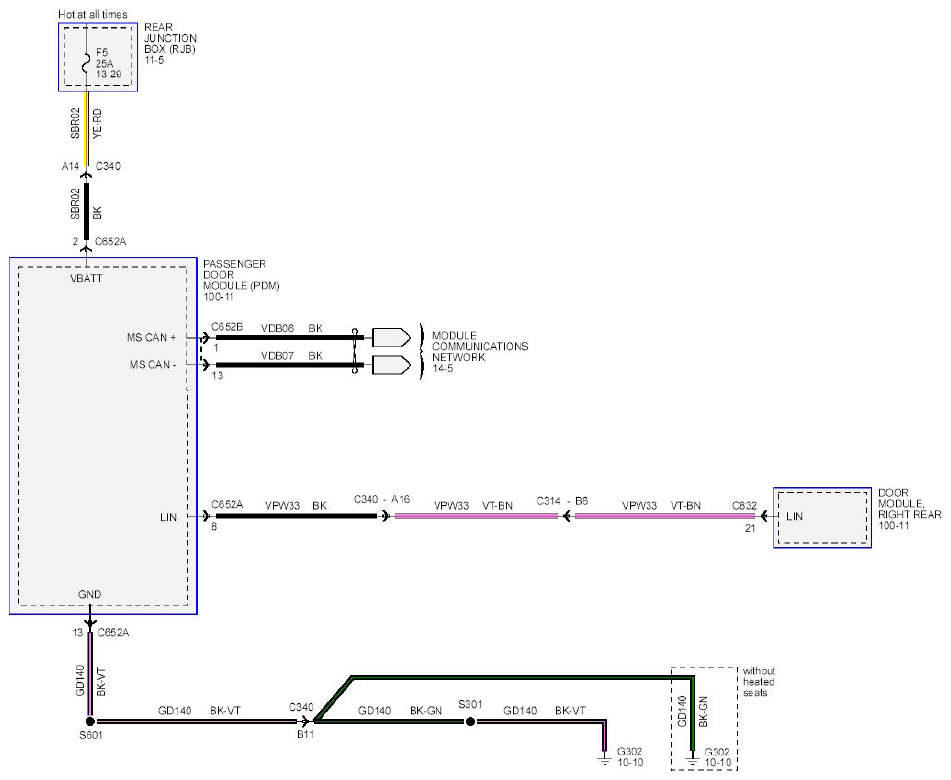

Fig 2: Power Mirrors (With Door Modules) - Circuit Diagram (2 Of 4)
G08744406Courtesy of FORD MOTOR CO.

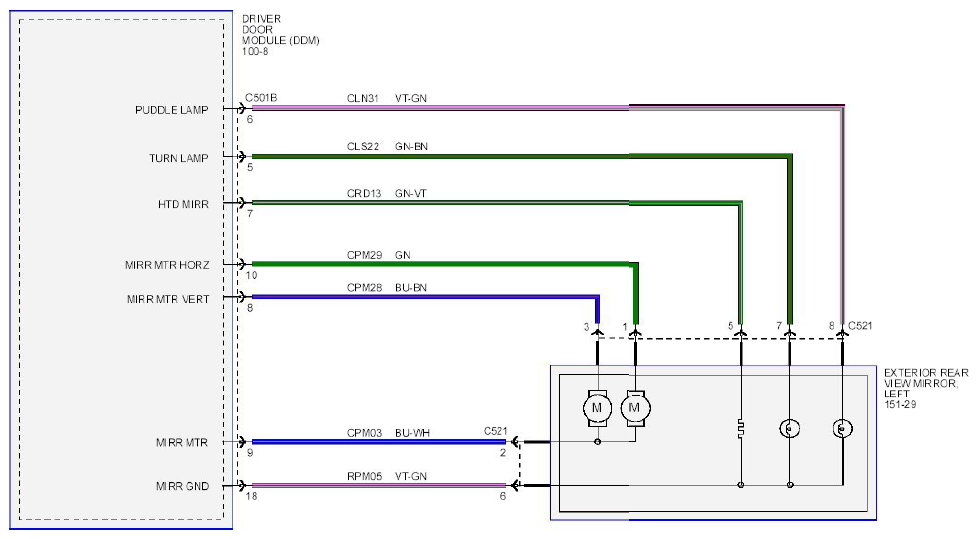

Fig 3: Power Mirrors (With Door Modules) - Circuit Diagram (3 Of 4)
G08744407Courtesy of FORD MOTOR CO.

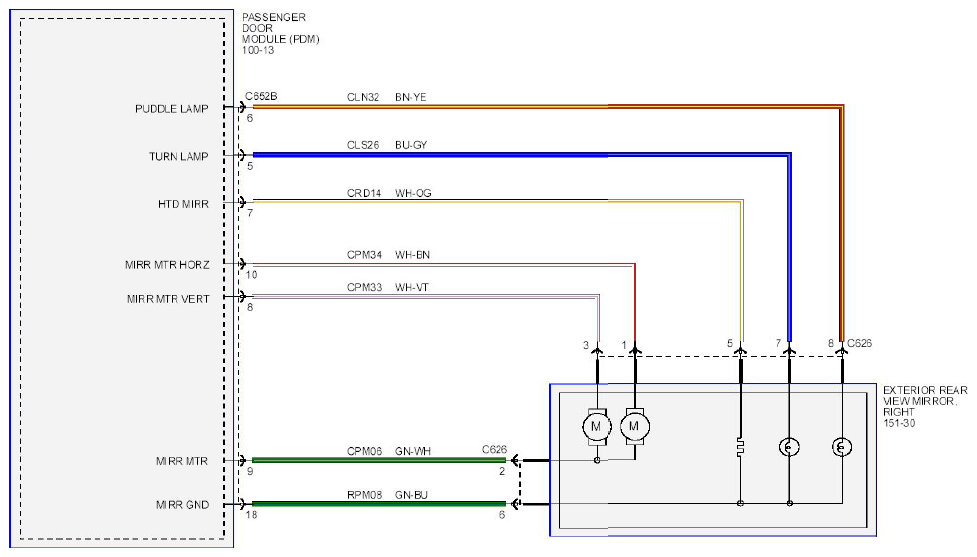

Fig 4: Power Mirrors (With Door Modules) - Circuit Diagram (4 Of 4)
G08744408Courtesy of FORD MOTOR CO.
