Home >> Ford >> 2013 >> Focus Titanium, 4D Sedan, Standard Trans, Gas >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams - Except Electric >> Power Mirrors >> Notes

Power Mirrors: Notes

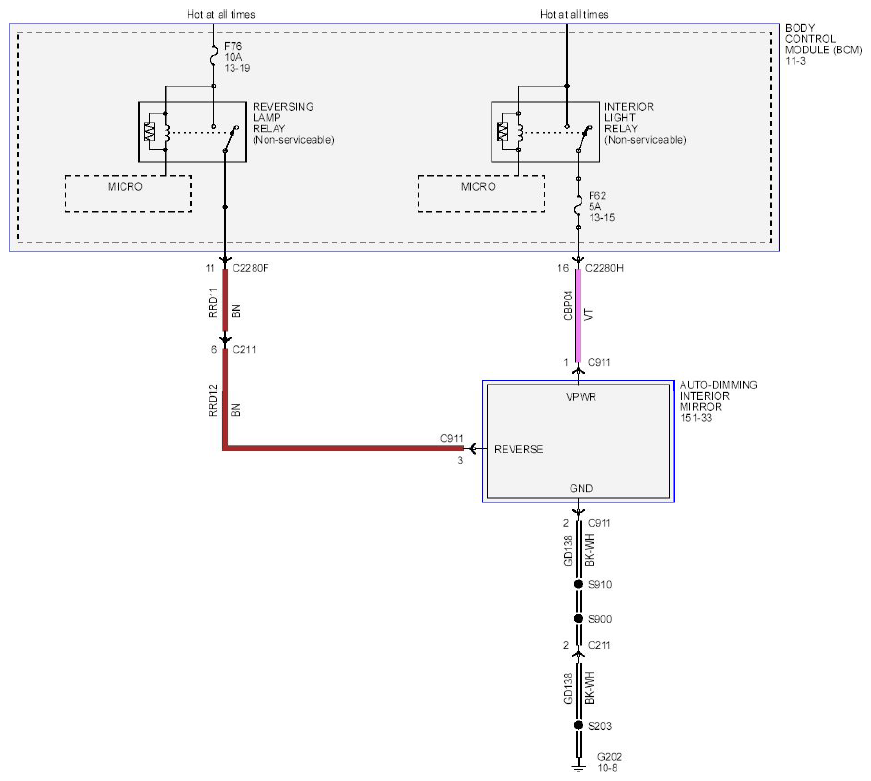

Fig 1: Power Mirrors - Circuit Diagram

G08744409

Courtesy of FORD MOTOR CO.
