Power Door Locks
>>
Without Door Modules
Without Door Modules

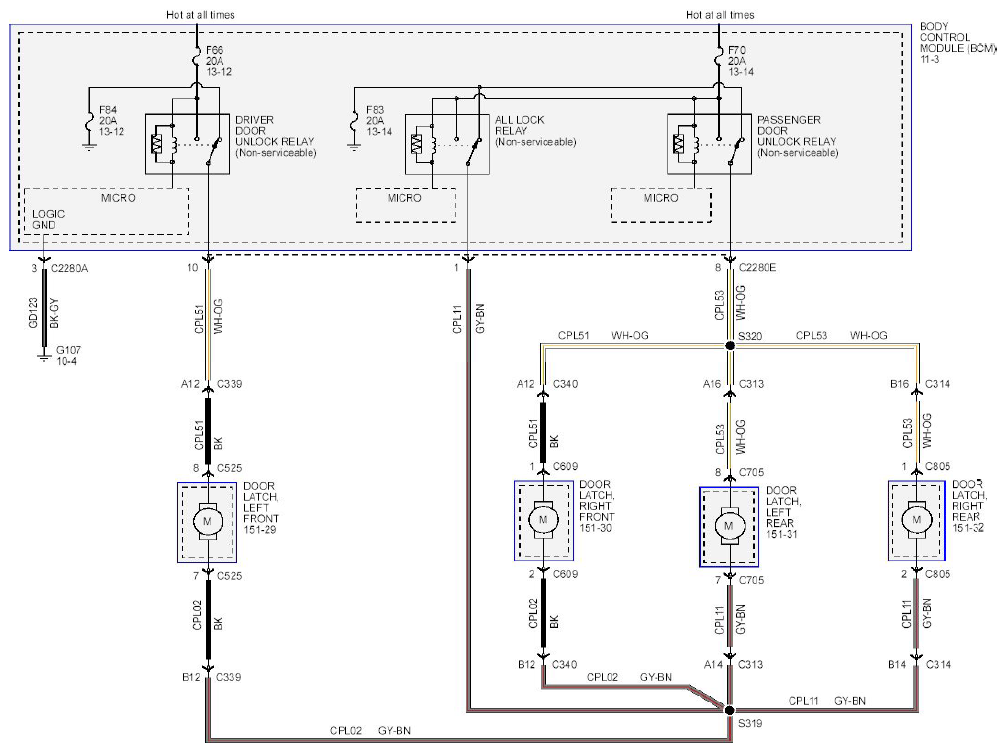

Fig 1: Power Door Locks (Without Door Modules) - Circuit Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

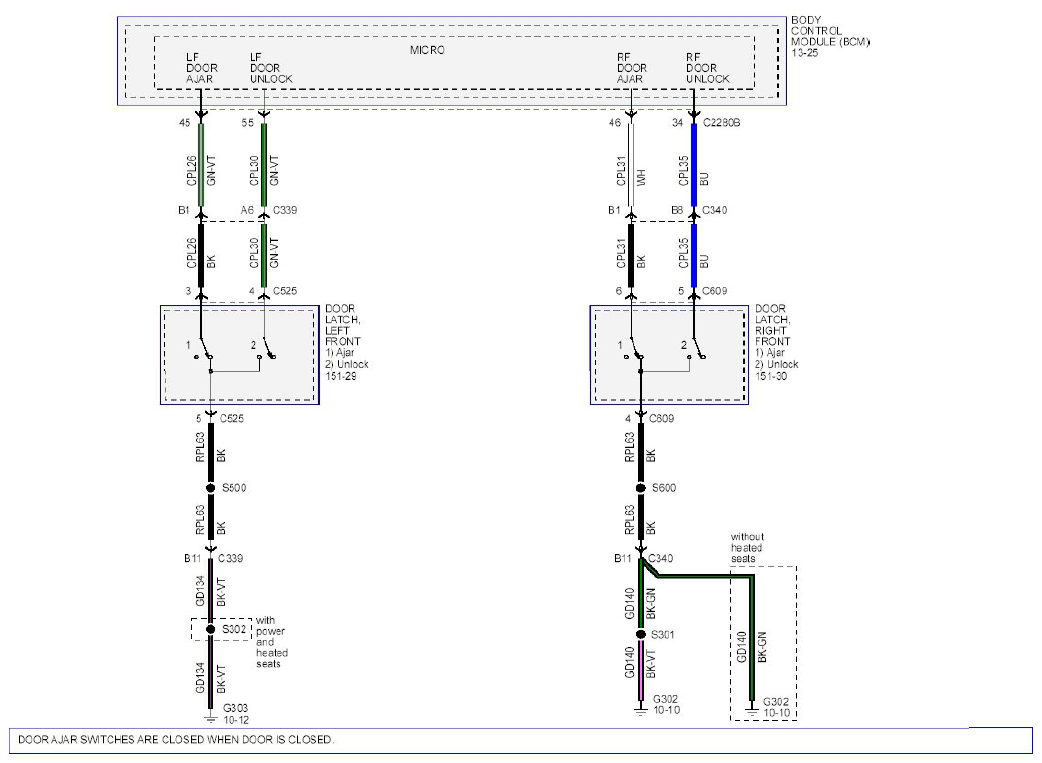

Fig 2: Power Door Locks (Without Door Modules) - Circuit Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

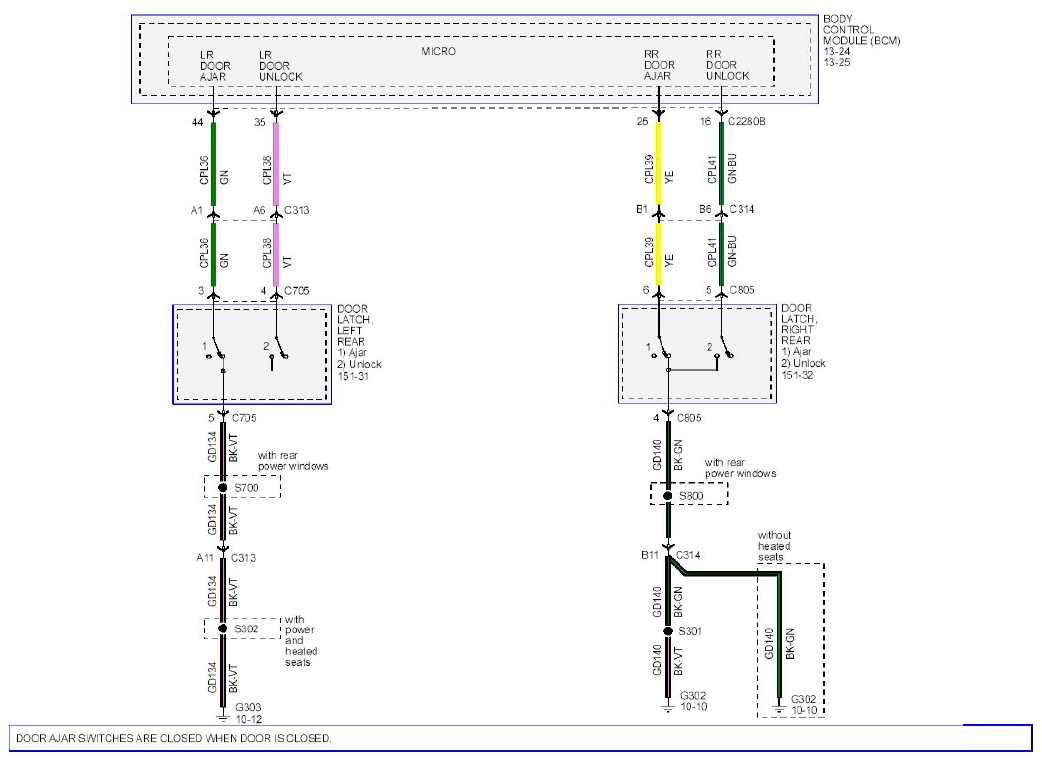

Fig 3: Power Door Locks (Without Door Modules) - Circuit Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
