With Door Modules

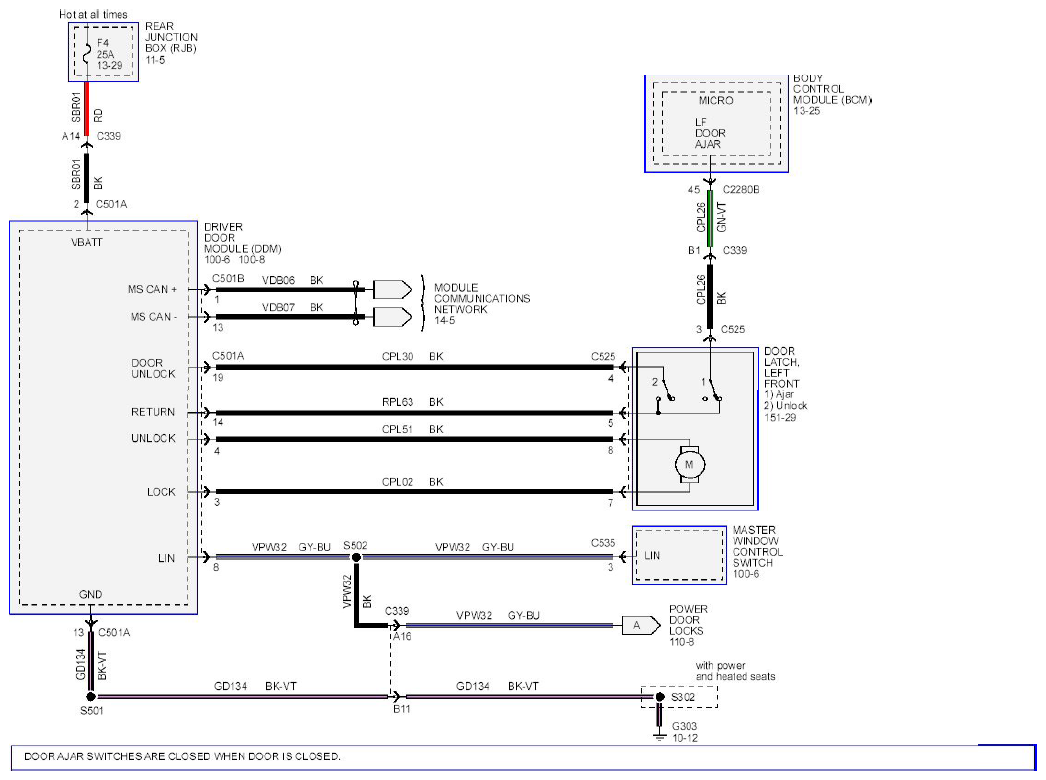

Fig 1: Power Door Locks (With Door Modules) - Circuit Diagram (1 Of 4)
G08744380Courtesy of FORD MOTOR CO.

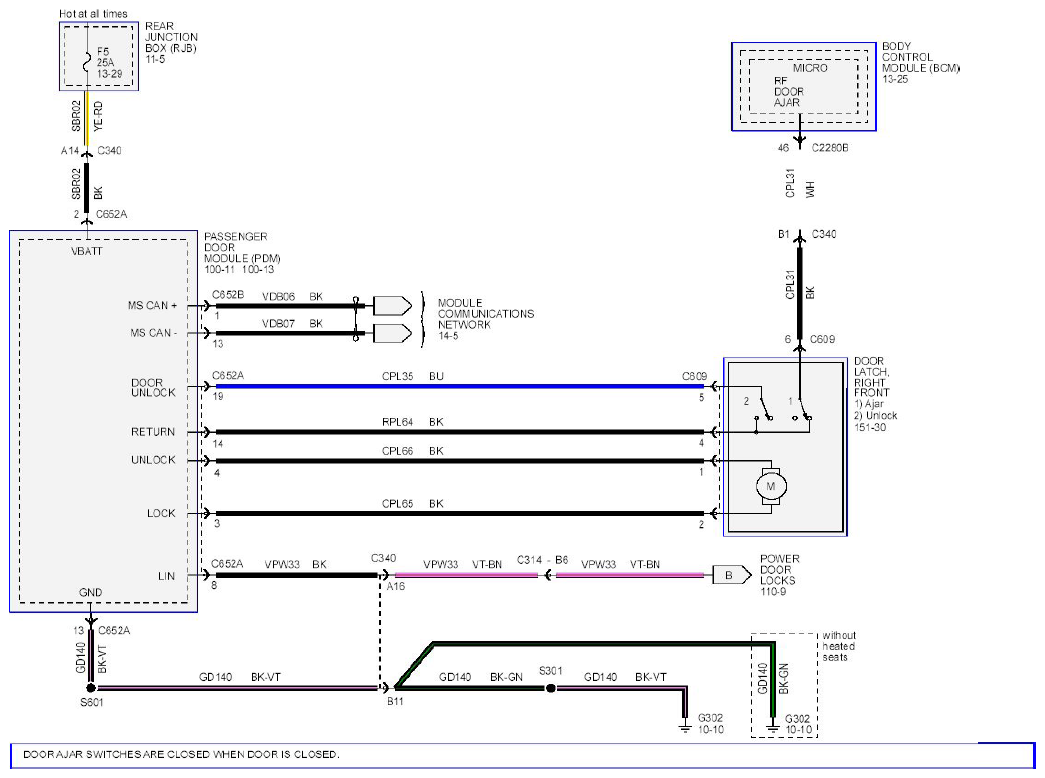

Fig 2: Power Door Locks (With Door Modules) - Circuit Diagram (2 Of 4)
G08744381Courtesy of FORD MOTOR CO.

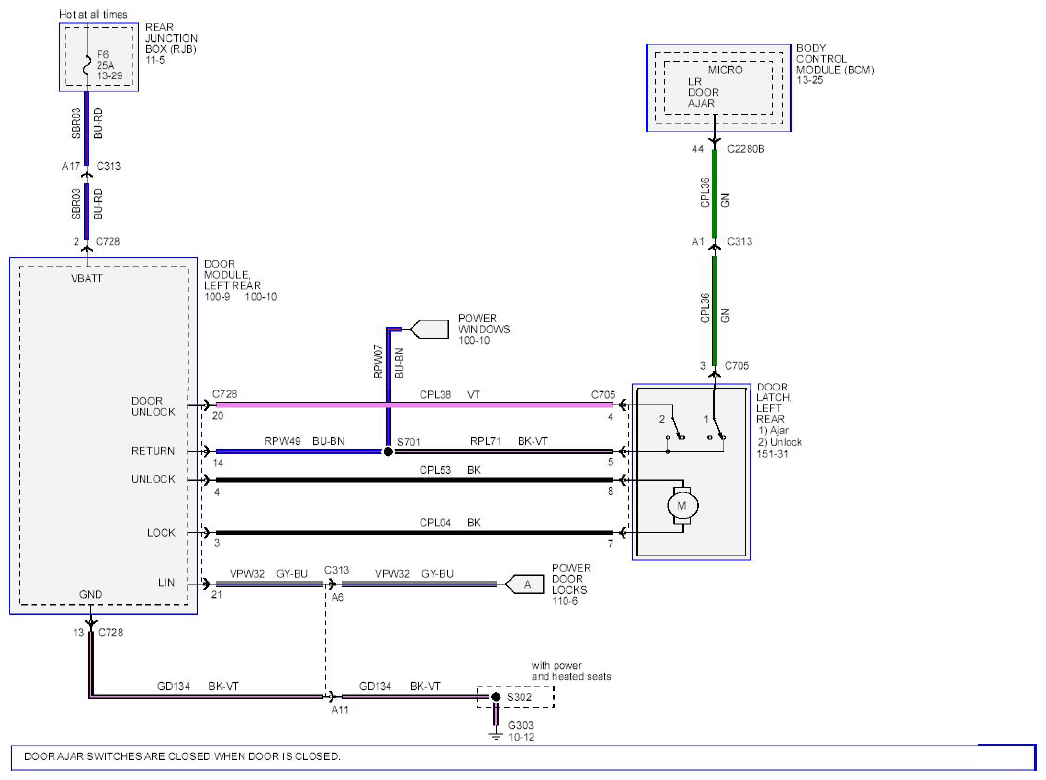

Fig 3: Power Door Locks (With Door Modules) - Circuit Diagram (3 Of 4)
G08744382Courtesy of FORD MOTOR CO.

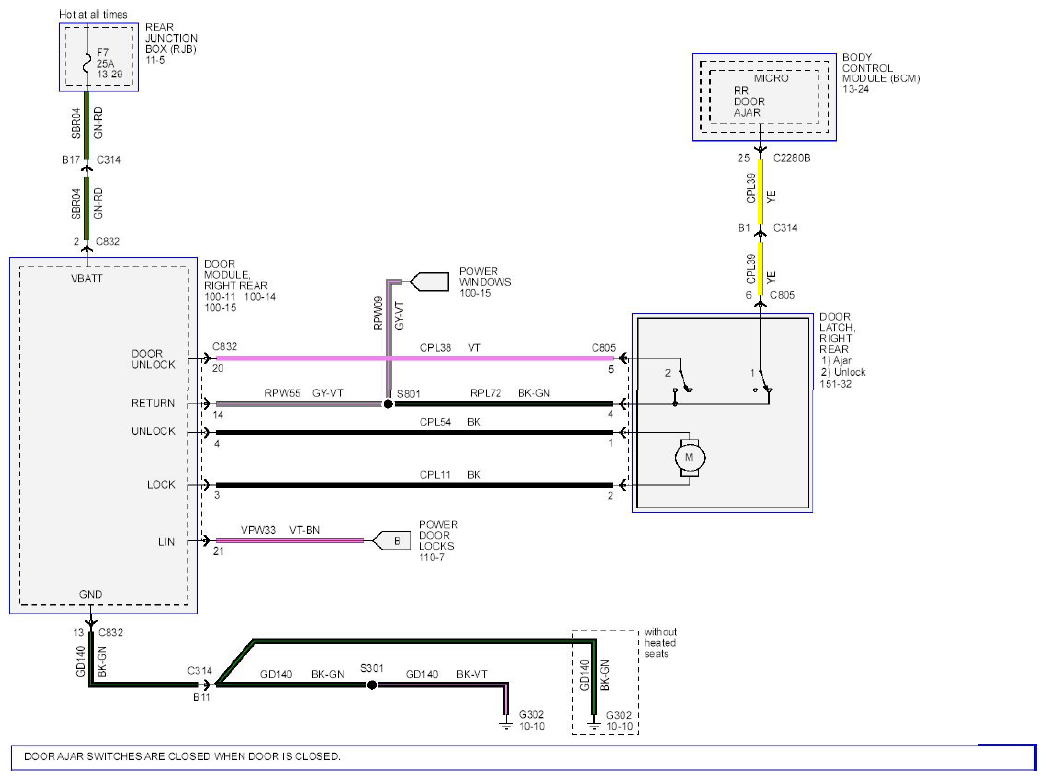

Fig 4: Power Door Locks (With Door Modules) - Circuit Diagram (4 Of 4)
G08744383Courtesy of FORD MOTOR CO.
