Sync Gen 2

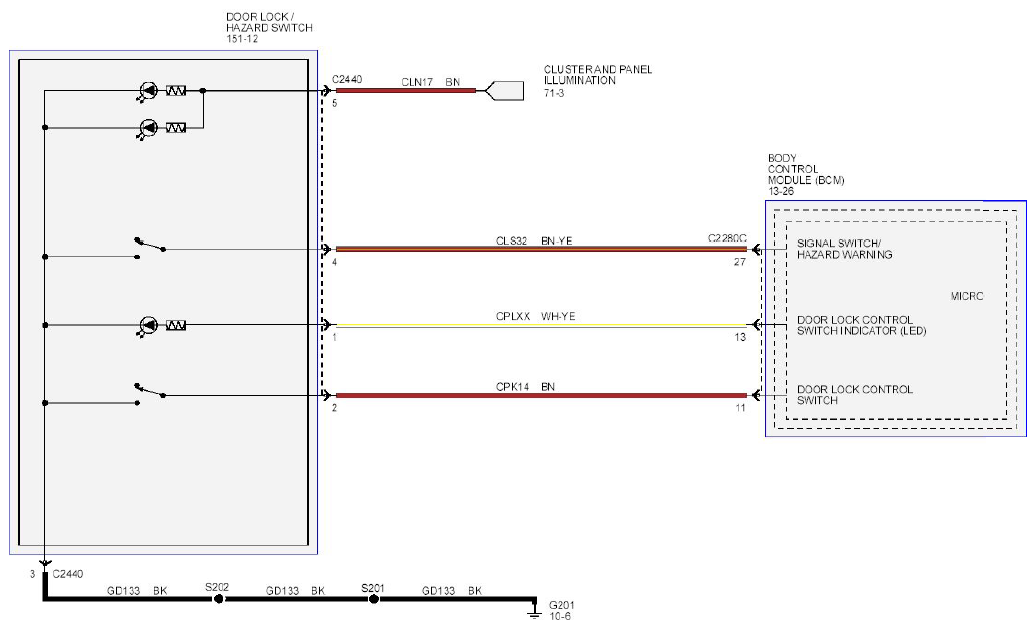

Fig 1: Power Door Locks (SYNC GEN 2) - Circuit Diagram

G08744376

Courtesy of FORD MOTOR CO.
