Focus Titanium, 4D Sedan, Standard Trans, Gas
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams - Except Electric
>>
Power Distribution
>>
Notes
Power Distribution: Notes

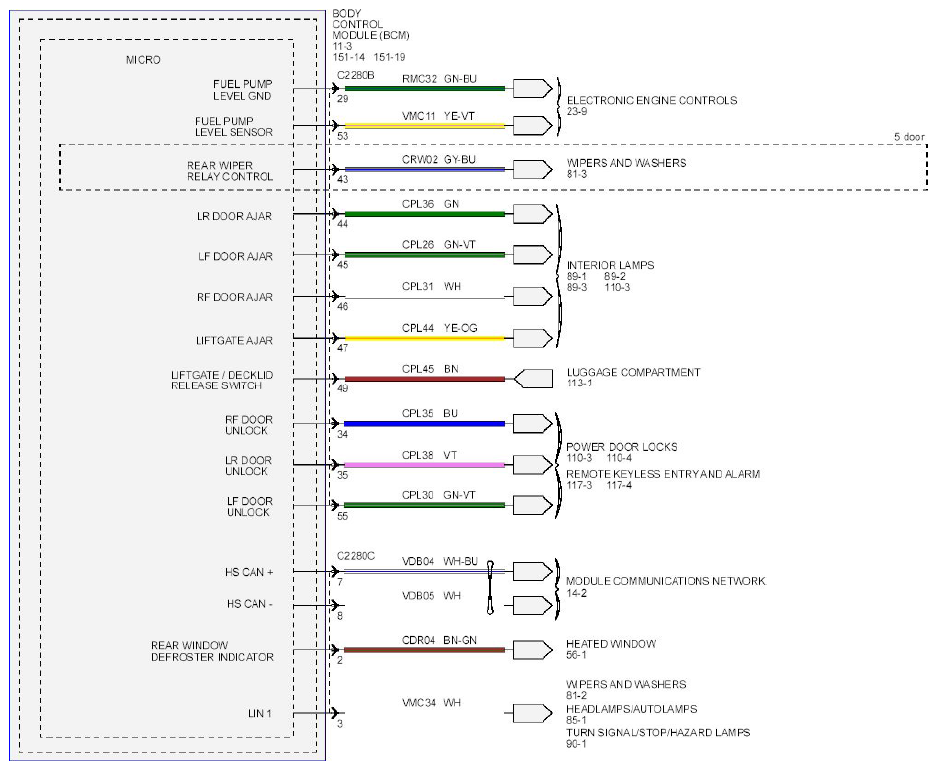

Fig 1: Power Distribution - Circuit Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

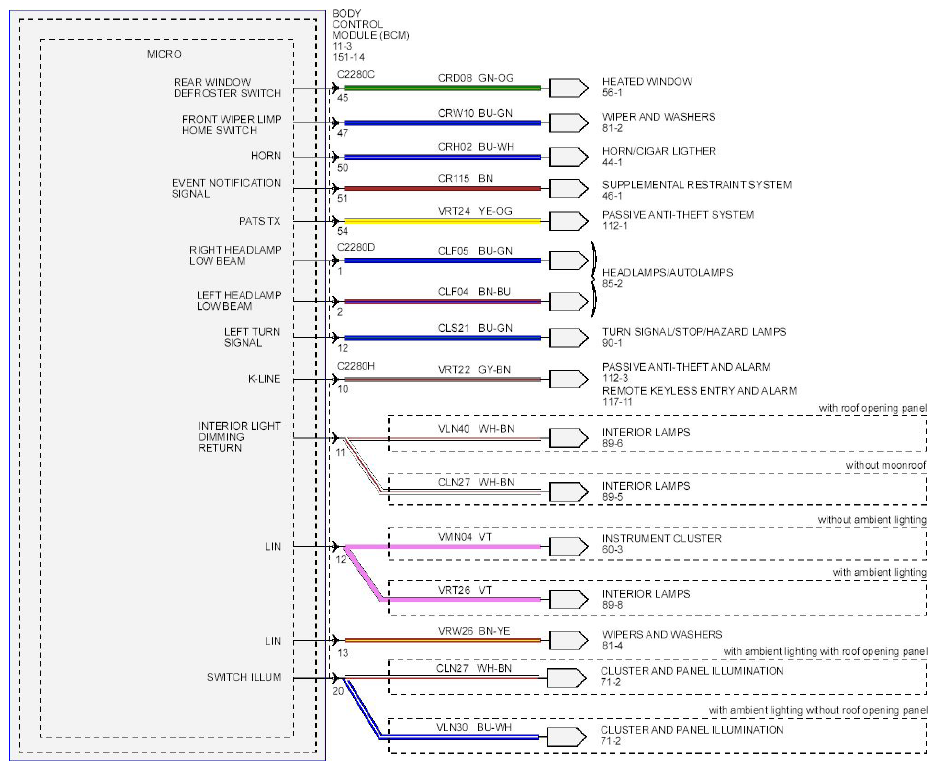

Fig 2: Power Distribution - Circuit Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

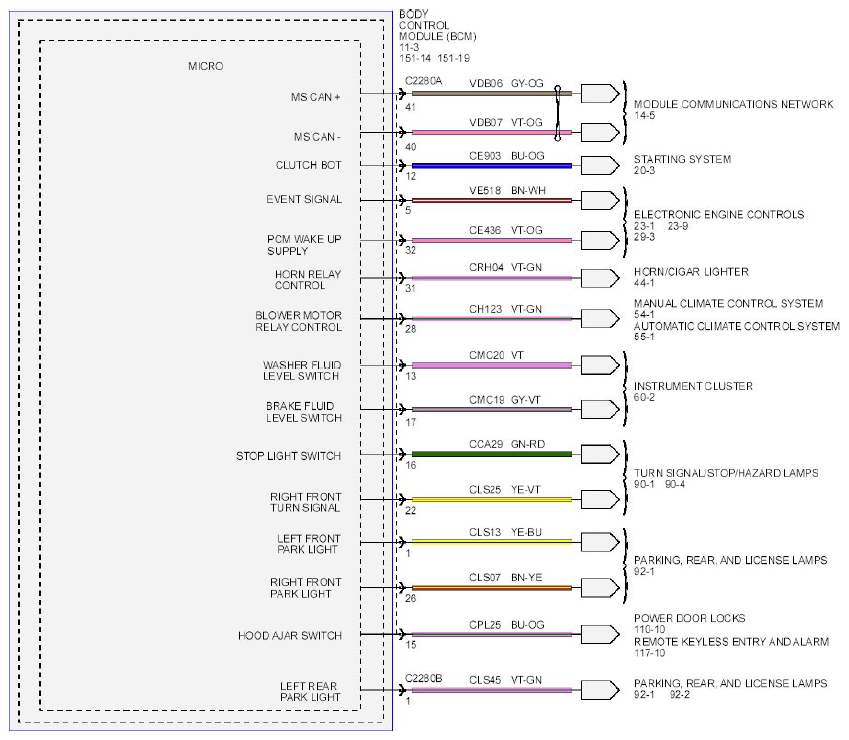

Fig 3: Power Distribution - Circuit Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

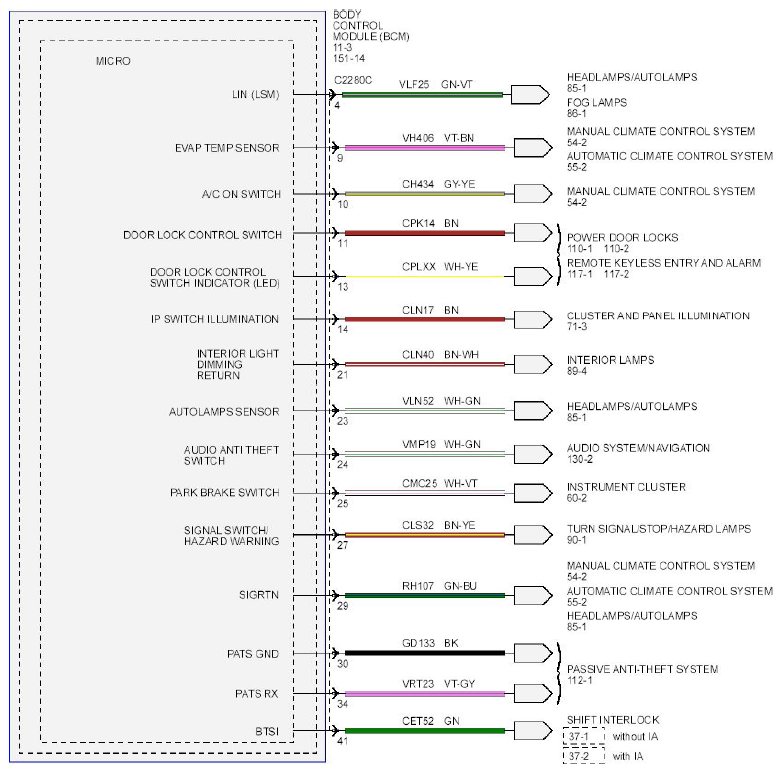

Fig 4: Power Distribution - Circuit Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

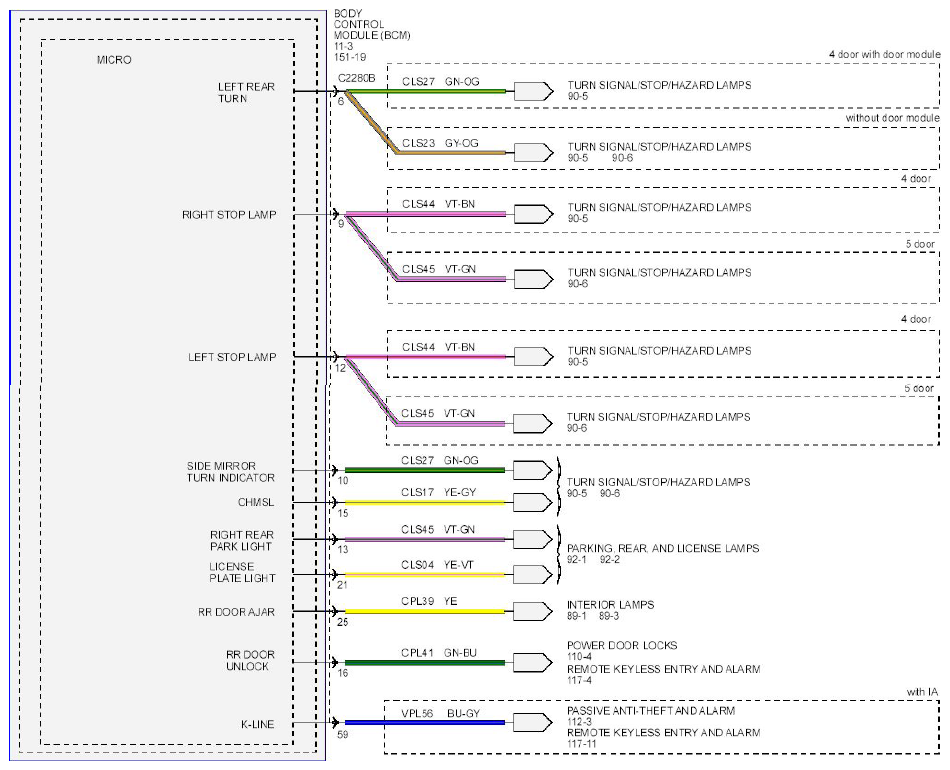

Fig 5: Power Distribution - Circuit Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
