Power Distribution: MEGAFUSE

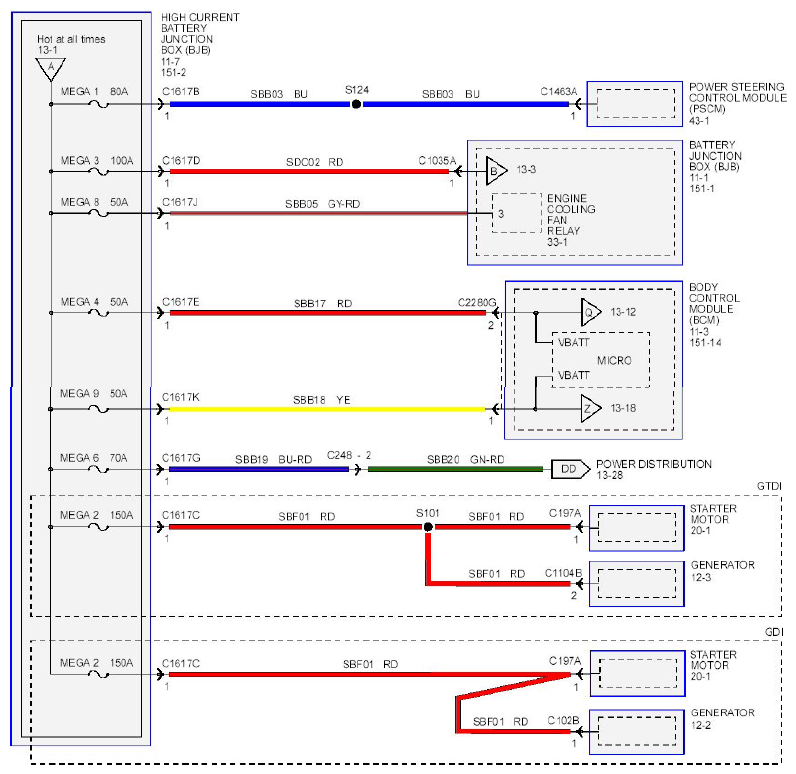

Fig 1: Power Distribution (MEGAFUSE) - Circuit Diagram

G08744233

Courtesy of FORD MOTOR CO.
