Focus Titanium, 4D Sedan, Standard Trans, Gas
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams - Except Electric
>>
Power Distribution
>>
F77, F78, F79, F80, F82
F77, F78, F79, F80, F82

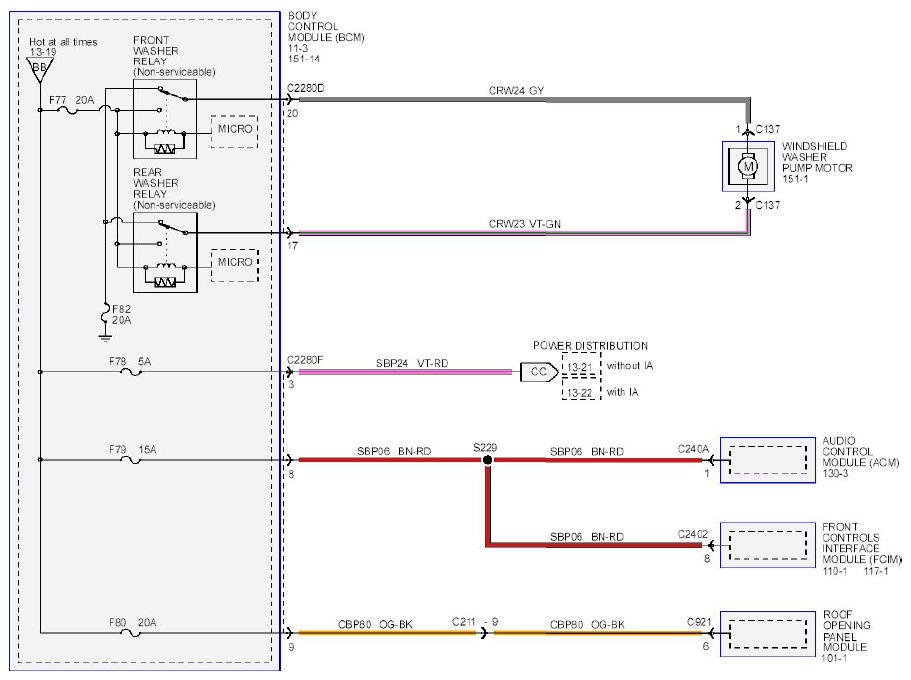

Fig 1: Power Distribution (F77, F78, F79, F80, F82) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
