OEM Wiring Diagrams - Except Electric
>>
Power Distribution
>>
F74, F75, F76
F74, F75, F76

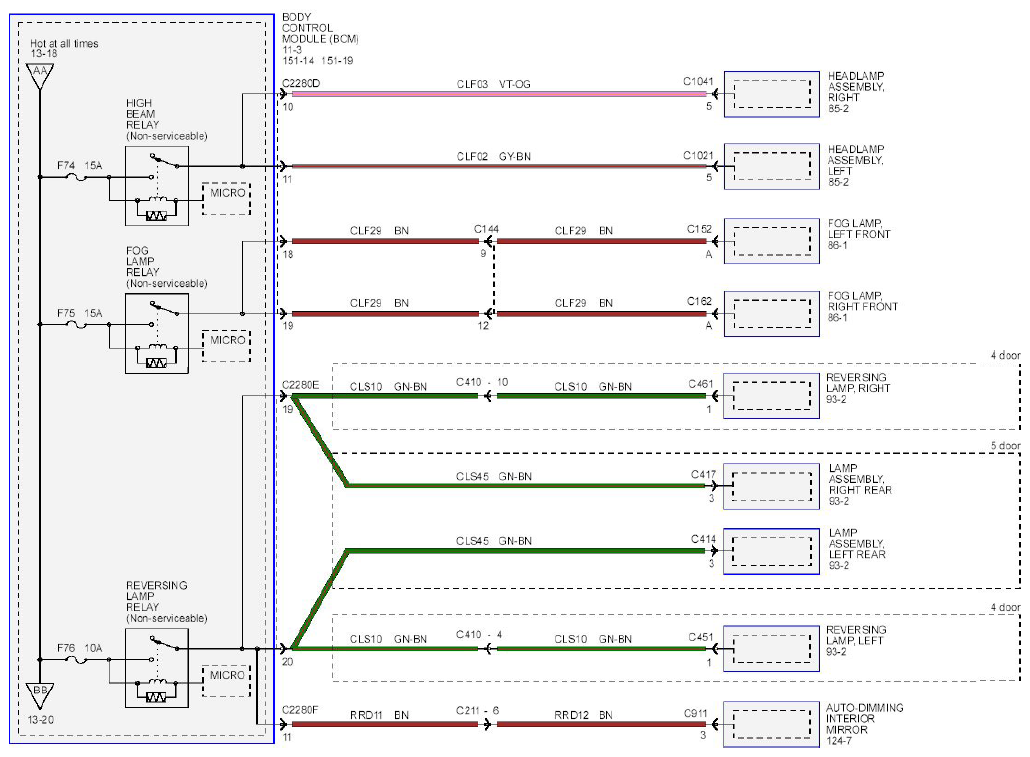

Fig 1: Power Distribution (F74, F75, F76) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
