OEM Wiring Diagrams - Except Electric
>>
Power Distribution
>>
F71, F73, F85
F71, F73, F85

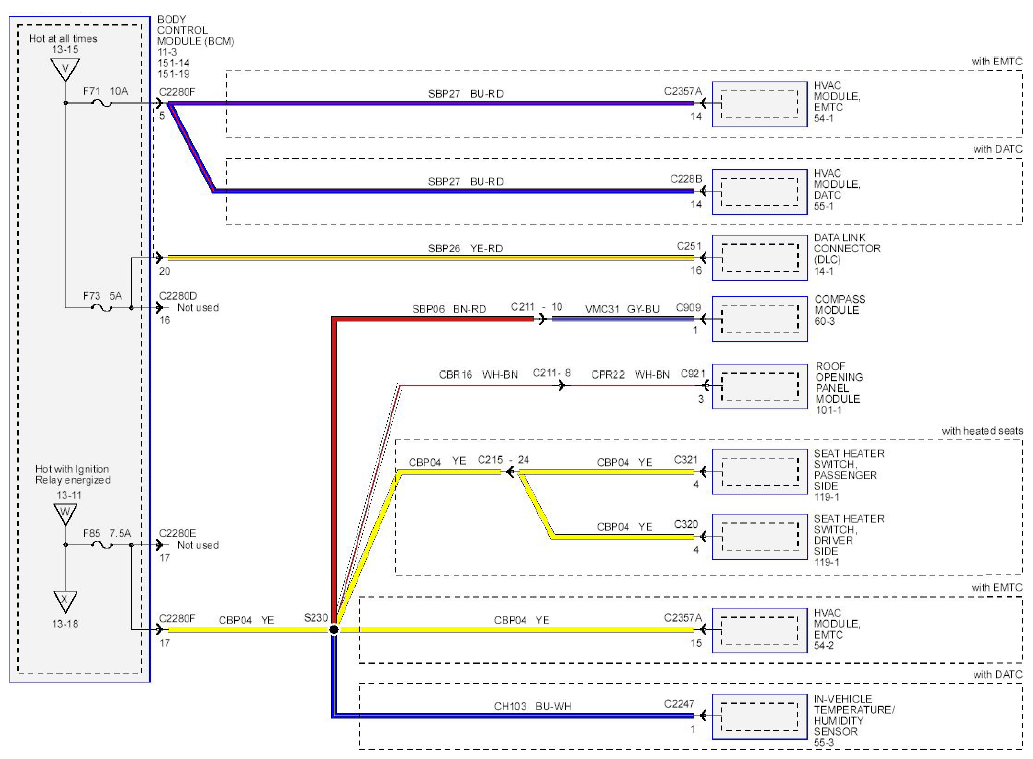

Fig 1: Power Distribution (F71, F73, F85) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
