Home >> Ford >> 2013 >> Focus Titanium, 4D Sedan, Standard Trans, Gas >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams - Except Electric >> Power Distribution >> F7, F8, F15, F18, F21, F24, F26, F30

F7, F8, F15, F18, F21, F24, F26, F30

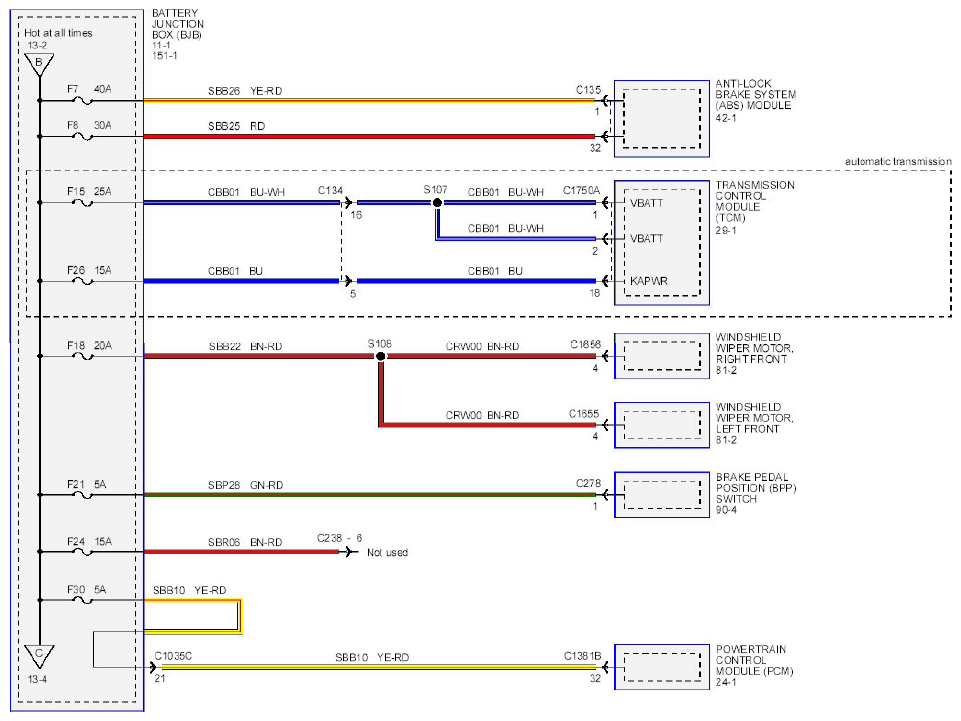

Fig 1: Power Distribution (F7, F8, F15, F18, F21, F24, F26, F30) - Circuit Diagram

G08744234

Courtesy of FORD MOTOR CO.
