Power Distribution
>>
F56, F72, F86
F56, F72, F86

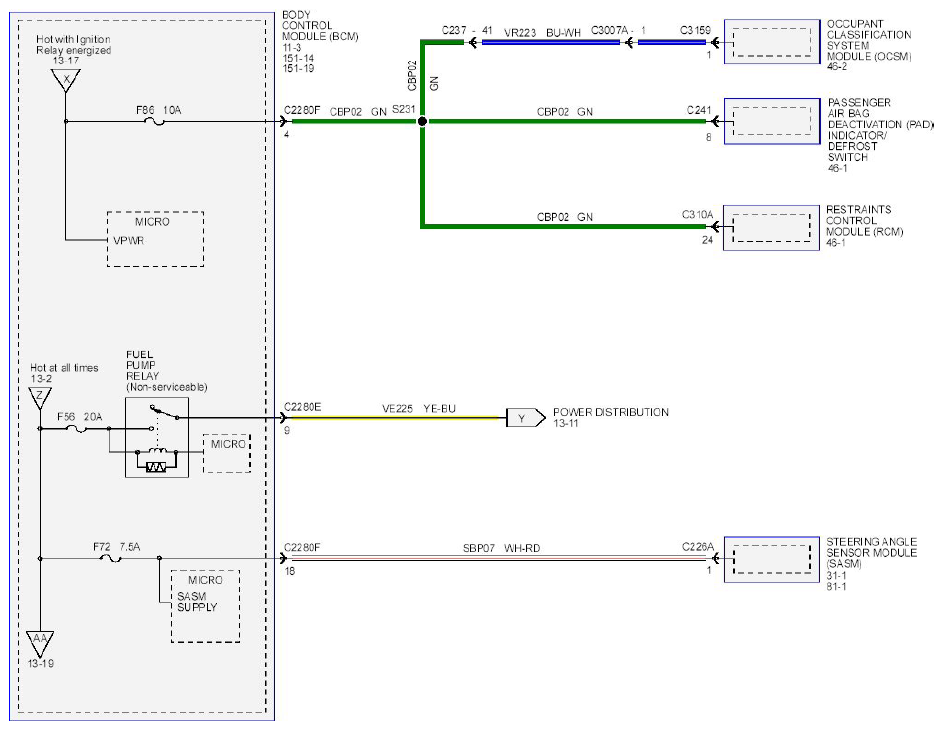

Fig 1: Power Distribution (F56, F72, F86) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
