OEM Wiring Diagrams - Except Electric
>>
Power Distribution
>>
F38, F39, F40
F38, F39, F40

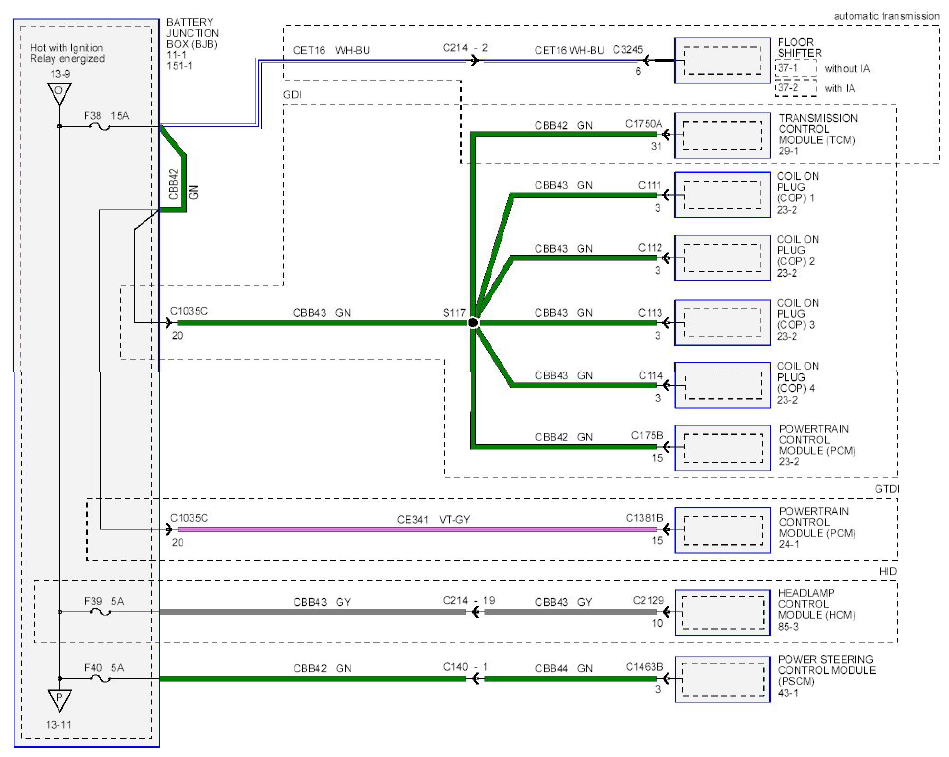

Fig 1: Power Distribution (F38, F39, F40) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
