Power Distribution: F3

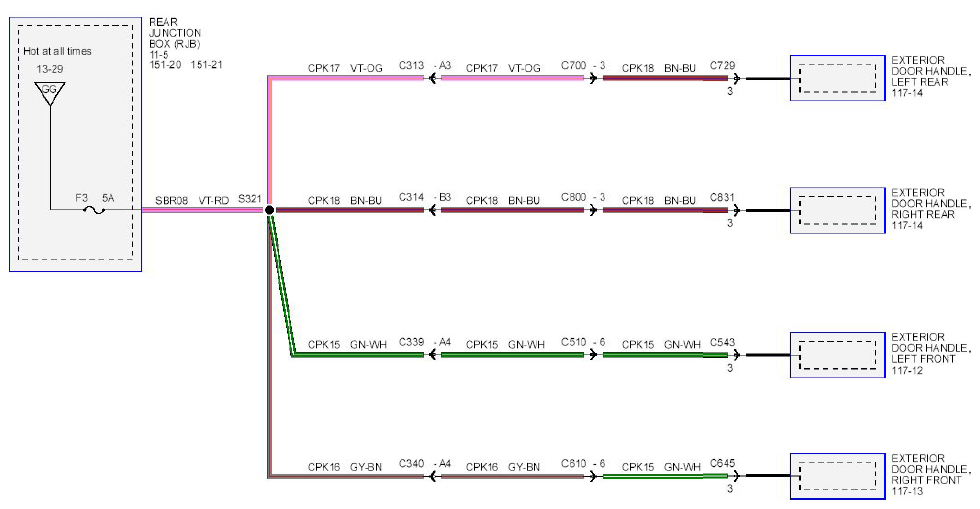

Fig 1: Power Distribution (F3) - Circuit Diagram

G08744261

Courtesy of FORD MOTOR CO.
