Power Distribution
>>
F29, F30, F34, F35, F37
F29, F30, F34, F35, F37

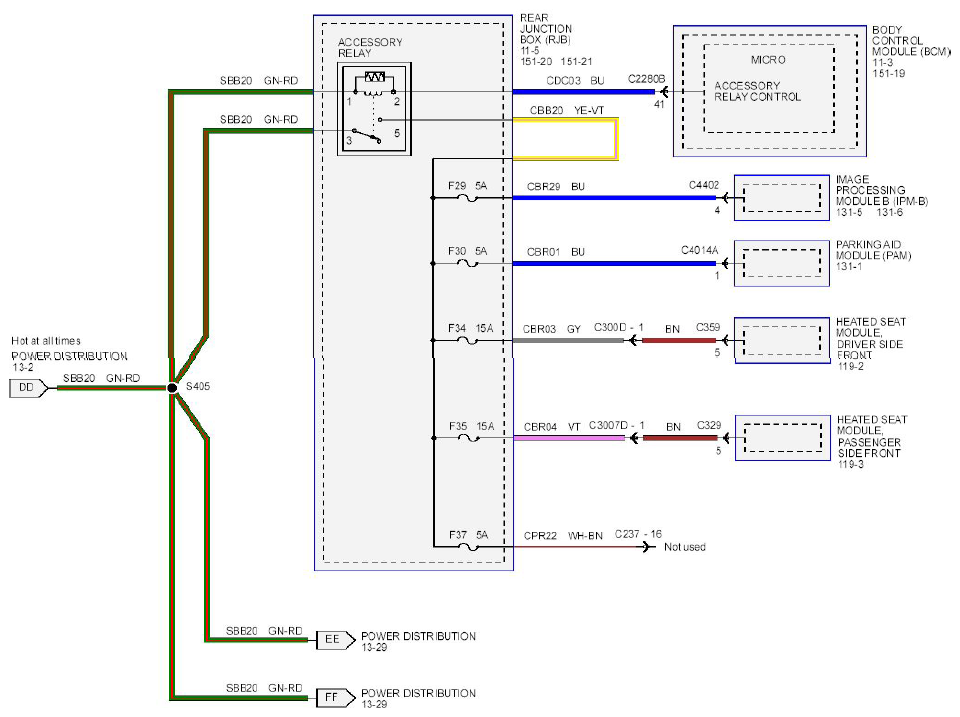

Fig 1: Power Distribution (F29, F30, F34, F35, F37) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
