Power Distribution
>>
F28, F41, F42, F43
F28, F41, F42, F43

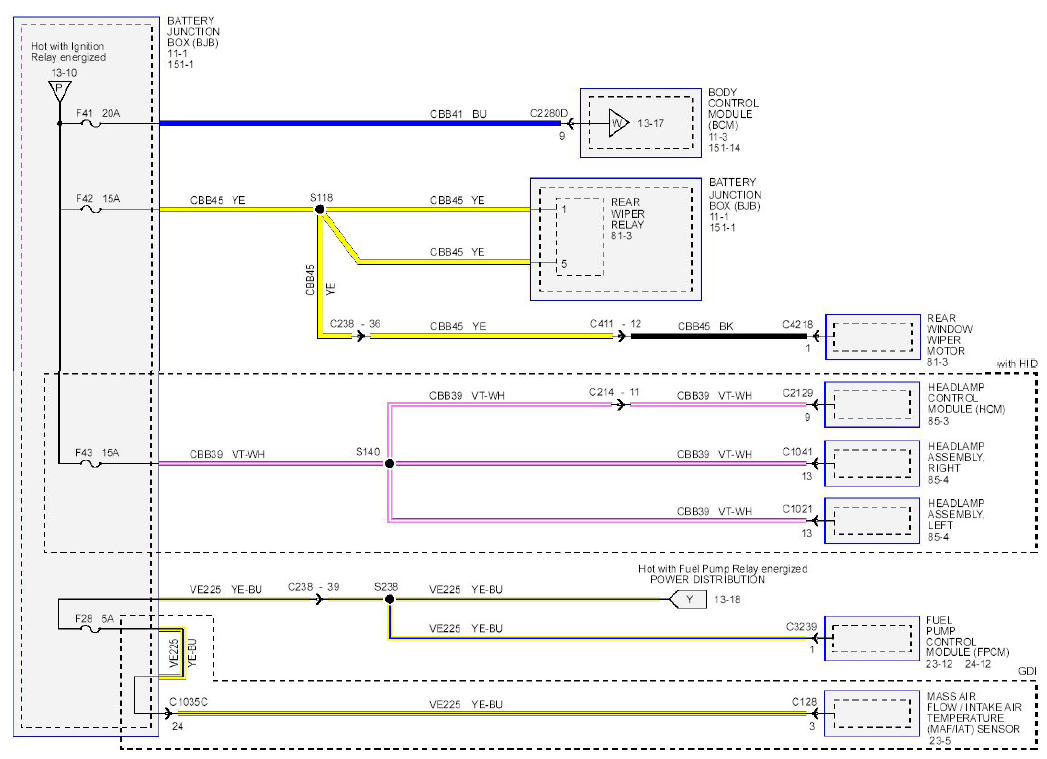

Fig 1: Power Distribution (F28, F41, F42, F43) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
