Power Distribution: F23

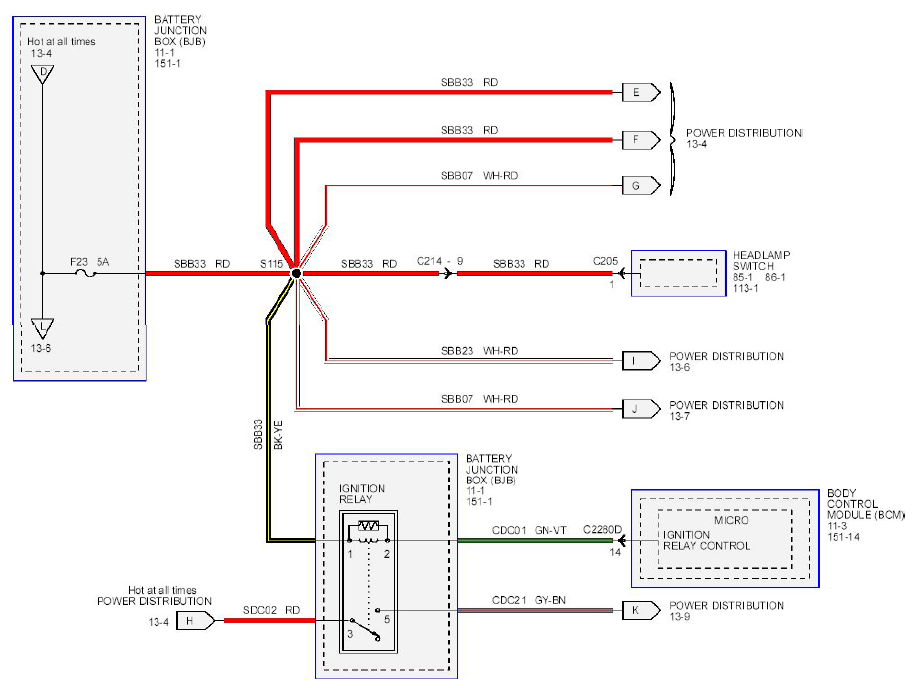

Fig 1: Power Distribution (F23) - Circuit Diagram

G08744236

Courtesy of FORD MOTOR CO.
