Power Distribution: F22

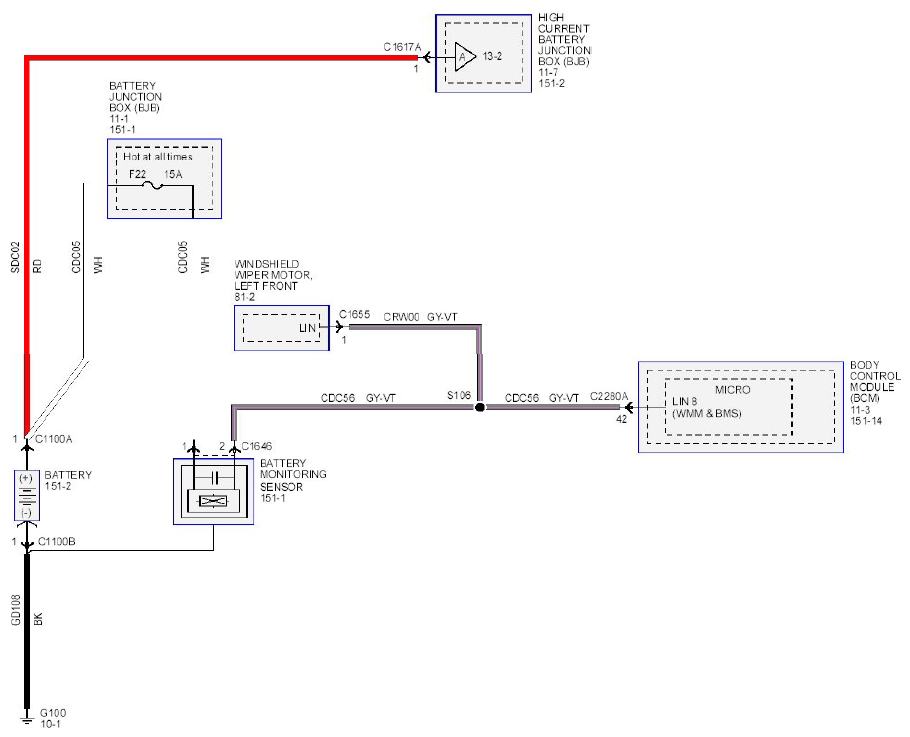

Fig 1: Power Distribution (F22) - Circuit Diagram

G08744232

Courtesy of FORD MOTOR CO.
