Power Distribution
>>
F2, F4, F5, F6, F7, F9, F23
F2, F4, F5, F6, F7, F9, F23

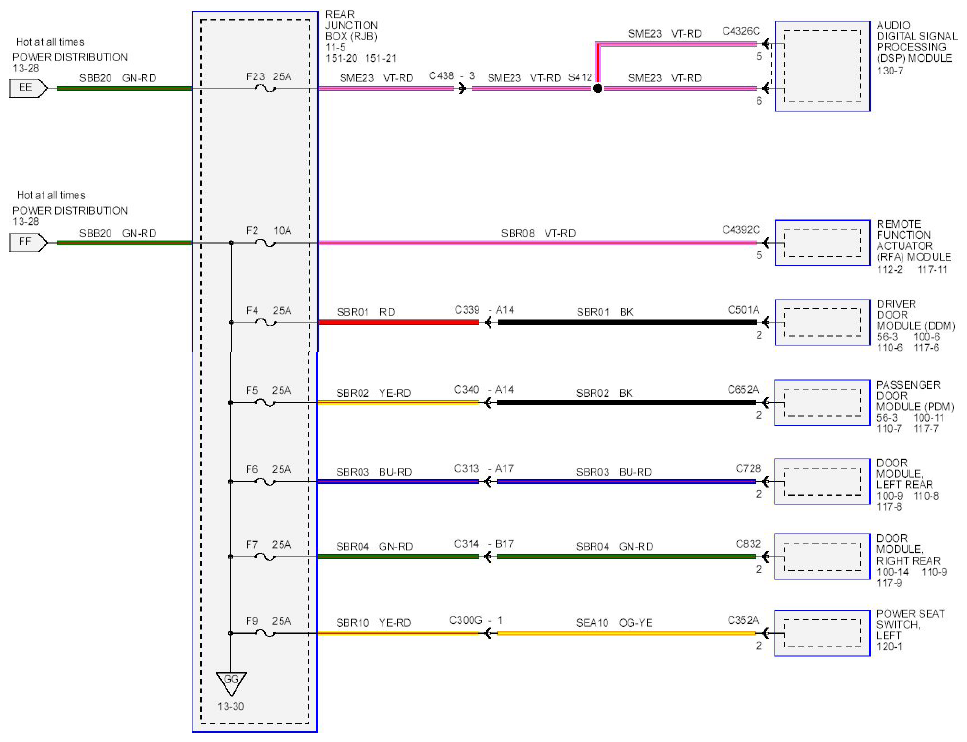

Fig 1: Power Distribution (F2, F4, F5, F6, F7, F9, F23) - Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
